Furuno 1823C Installation Manual

2-7

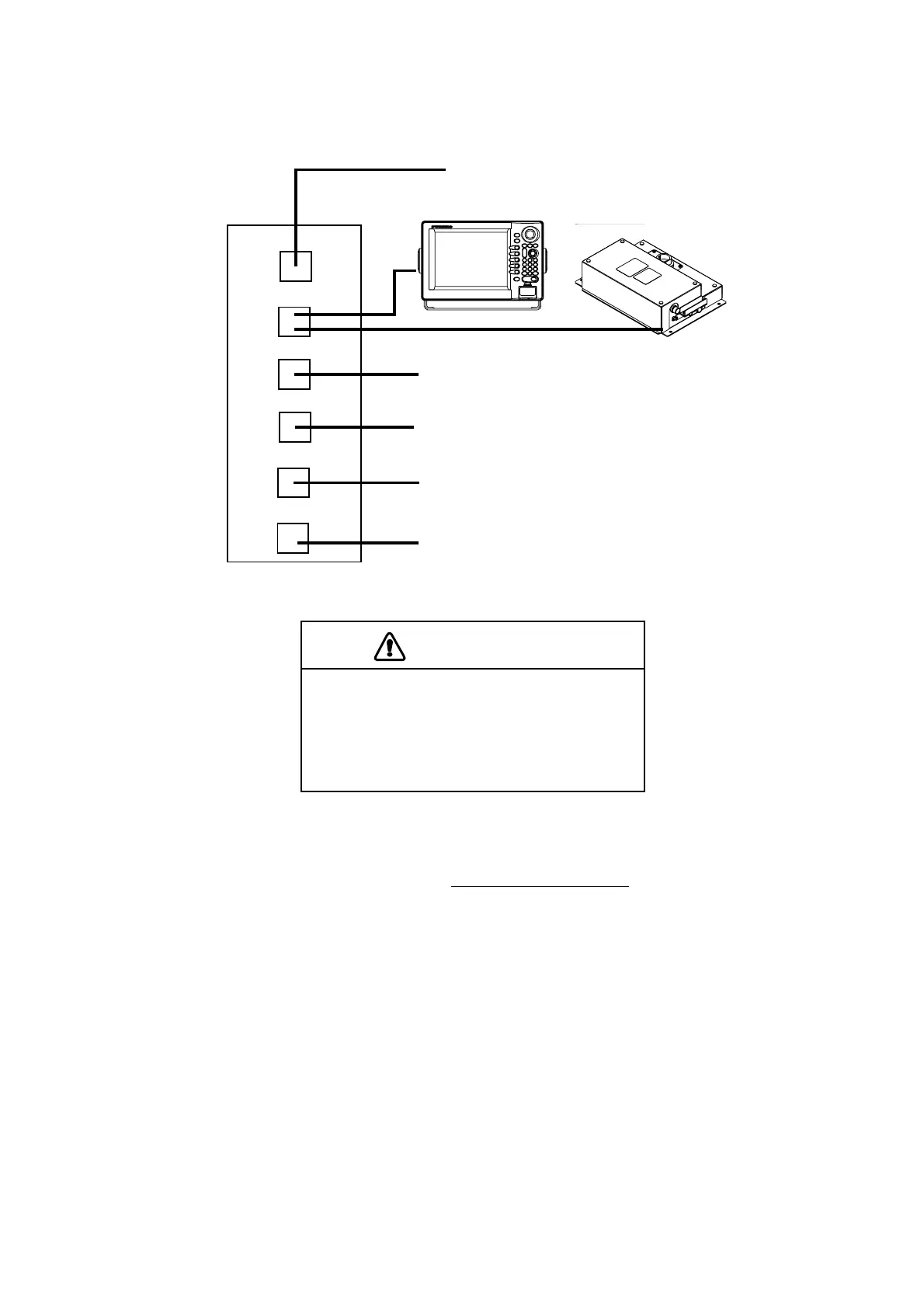

Note: The power for the power supply unit and display unit must be drawn from the same
power switch on the power terminal board.
Other Equipment
(ex. GPS, E/S etc.)
Power terminal board
Display unit
Power supply unit
Other Equipment
(ex. GPS, E/S etc.)
Other Equipment
(ex. GPS, E/S etc.)
Other Equipment
(ex. GPS, E/S etc.)
Other Equipment
(ex. GPS, E/S etc.)
CAUTION
The display unit and antenna should be
powered from the same power source.
This should be done so the antenna will
rotate only when the display unit is
turned on.
Replacement of the fuse
The power supply unit is shipped with 15 A fuse. Replace fuse with 7 A (supplied) when the
ship’s battery is 24 VDC. Note that replace fuse of the display unit
with 7 A when the ship’s
battery is 24 VDC.

Furuno 1823C Specifications

General

Brand	Furuno
Model	1823C
Category	Marine Radar
Language	English
