4-5
For connection with the CCD camera/video recorder, the following cable is necessary
(local supply).
• Both side connectors: RCA connector (metal)
• Cable length: shorter than 10 m
• 2.5C2V or 3C2V (Japan Industrial Standard (JIS), or the equivalent) coaxial cable
(Impedance: 75
Ω
)
Conductor
S = 0.19 mm
∅ = 0.5 mm
2
Vinyl
sheath
Shield
Cable 3C2V
Insulator

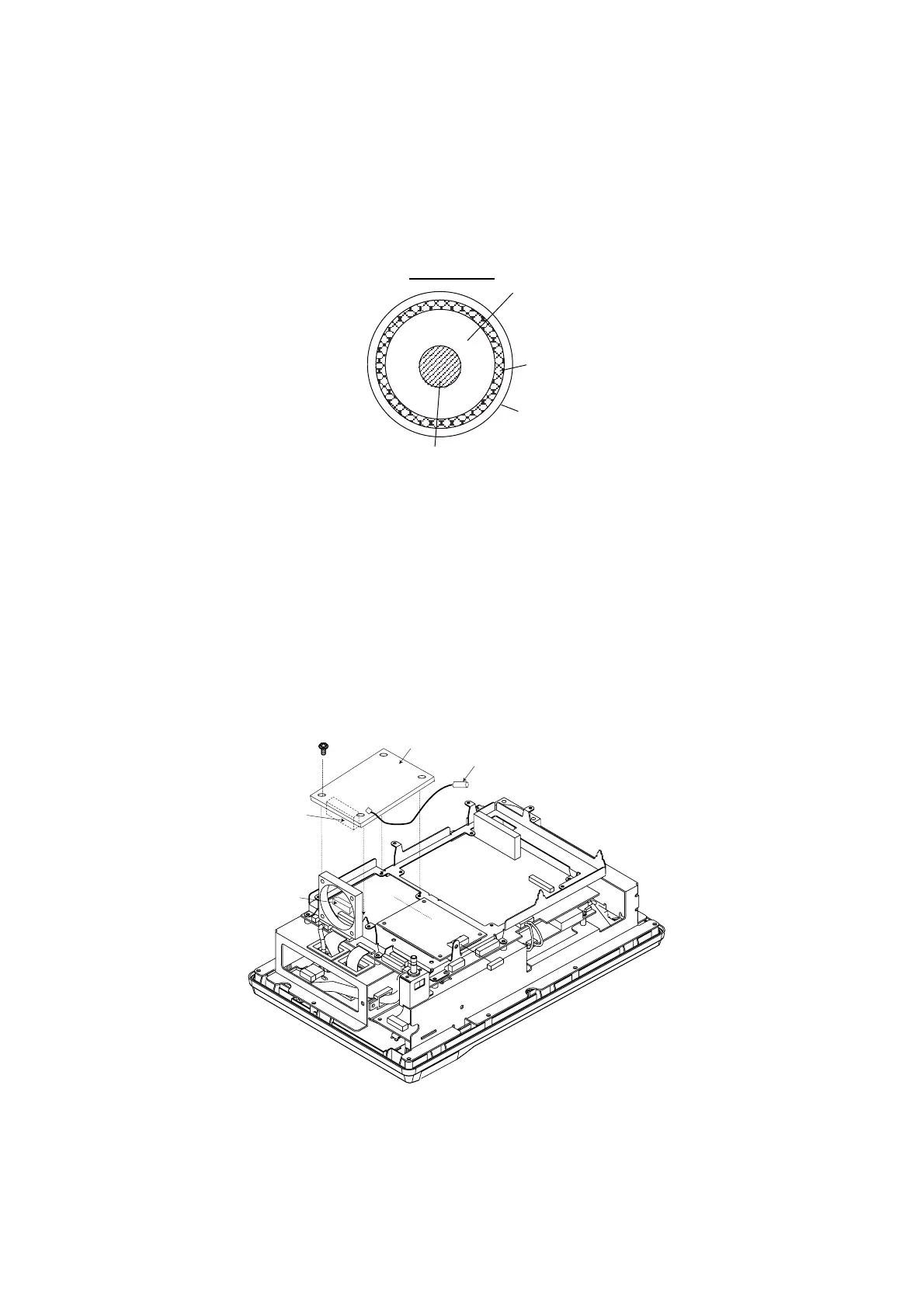

3C-2V cable, sectional view
1. Remove the display unit cover, POWER Board and power shield case referring to the
step 1 through 4 on the “4.1 ARP kit ARP-11.”
2. Attach the NTSC/PAL Interface Board to the SPU Board with four pan head screws
(M3x6, supplied with optional kit) so that J700 connector on the NTSC/PAL Interface
Board faces to J107 on the SPU Board.
3. Attach the connector assy RCA-TMP-L230 to J701 on the NTSC/PAL Interface Board.
NTSC/PAL Interface Board
Pan head screws
(M3x6, supplied with optional kit) 4pcs.
J700
J107
Connector assy RCA-TMP-L230
NTSC/PAL Interface Board attachment
To Next Page
