ix
Single-uni
t Nav
Net system (GD-1920C)
Network
Sounder
ETR-6/10N
ETR-30N
GPS receiv
er
GP-310B/320B
12 - 24
VDC
Other NavNet Unit
(Model 1834C
, etc.)
Displa
y unit
RDP-149
100/110/115/220/230 V
AC
1
φ
, 50/60 Hz
Remote
Controller
RMC-100
Exter
nal b
uzzer
Echo sounder
Navigator
Rectifier
PR-62
V
GA monitor
Remote displa
y
PC
Video equipment
F
acsimile
Receiv
er
F
AX-30
ARP
A
ARP-11
:
Standard
:
Option
:
Local supply
AIS transponder
AIS Interf
ace
IF-1500AIS*
* Not required f
or AIS
T
ransponder F
A-150
F
A-30
AIS RECEIVER
HUB
Single-unit NavNet
system (GD-1920C)
9
11
Table of Contents
Default Chapter
3
Table of Contents
3
Foreword
7
A Word to the Owner of the Model 18X4C/19X4C Series Marine Radar, GD-1920C Color Video Plotter
7
Features
7
Notice
8

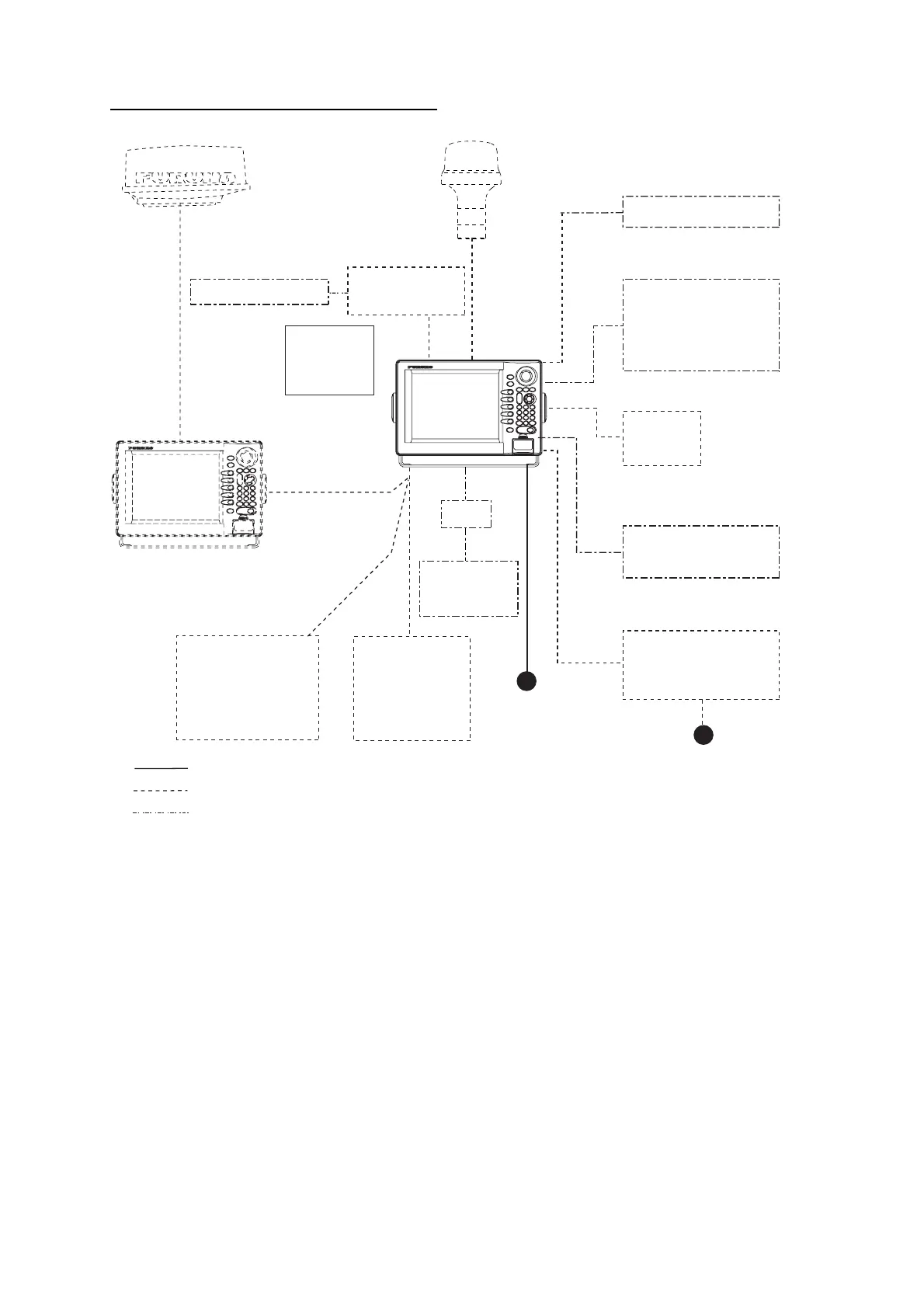

System Configurations
9
1 Operational Overview
12
Operating Controls
12
Display Unit Controls
12
Remote Controller
14
Inserting a Chart Card
15
Turning the Unit On/Off
16
Display Brilliance, Panel Brilliance, Hue
17
Display Brilliance, Panel Brilliance
17
Hue
18
Selecting a Display
19
Display Modes
19
Switching Control in Combination and Overlay Screens
21
Selecting Image Source
22
Trackball, Cursor
23
Entering the MOB Mark, Setting MOB as Destination
24
Data Boxes
25
Showing, Hiding Data Boxes with Soft Key
25
Rearranging Data Boxes
25
Temporarily Erasing a Data Box
25
Function Keys
26
Simulation Display
27
2 Radar Operation
30
Radar Display
30
Transmitting, Stand-By
30
Tuning
31
Adjusting the Gain
31
Reducing Sea Clutter
32
How the A/C SEA Works
32
Adjusting the A/C SEA
33
Reducing Precipitation Clutter
33
Adjusting the A/C RAIN
33
Range Scale
34
Pulselength
34
Presentation Mode
35
Selecting a Presentation Mode
35
Description of Presentation Modes
36
Measuring the Range
37
Measuring Range by Range Rings
37
Measuring Range by Cursor
37
Measuring Range by VRM
38
Various VRM Operations
38
Measuring the Bearing
39
Measuring Bearing by Cursor
39
Measuring Bearing by EBL
39
Various EBL Operations
39
Erasing the Heading Line, North Marker
40
Reducing Noise Interference
40
Rejecting Radar Interference
40
Zoom
41
Zooming Radar Targets
41
Zooming ARP, TTM Targets
42
Shifting the Picture
43
Manual Shift
43
Automatic Shift
43
Using the Offset EBL
44
Predicting Collision Course
44
Measuring Range & Bearing between Two Targets
45
Echo Trails
46
Trail Time
46
Starting Echo Trails
47
Trail Gradation
47
Trail Color
47
Echo Trail Mode
48
Echo Stretch
48
Echo Averaging
49
Outputting TLL Data
50
Guard Alarm
51
Setting a Guard Alarm Zone
51
When the Alarm Is Violated
52
Cancelling the Guard Alarm
52
Watchman
52
How Watchman Works
52
Turning On/Off Watchman
52
Setting Watchman Stand-By Interval
53
Suppressing Second-Trace Echoes
53
Waypoint Marker
54
ARP, TTM Operation
55
Activating/Deactivating ARP, TTM
56
Acquiring and Tracking Targets (ARP)
56
Automatic Acquisition
57
Displaying Target Number (ARP, TTM)
58
Terminating Tracking of ARP Targets
58
Setting Vector Attributes (ARP)
59
Displaying Past Position (ARP)
60
ARP, TTM Target Data
60
CPA/TCPA Alarm (ARP)
61
Lost Target Alarm (ARP)
62
Interpreting the Radar Display
63
False Echoes
63
SART (Search and Rescue Transponder)
64
Racon (Radar Beacon)
65
3 Plotter Operation
66
Plotter Displays
66
Full-Screen Plotter Display
66
Nav Graphic Display
68
Highway Display
71
Nav Data Display
72
Presentation Mode
73
Shifting the Display
74
Chart Scale
74
Chart Cards
74
Chart Card Overview
74
Indices and Chart Enlargement
75
Navionics Charts
76
C-MAP Charts
79
Working with Track
83
Displaying Track
83
Stopping, Restarting Plotting of Own Ship Track
84
Changing Track Color
84
Track Plotting Method and Interval for Own Ship Track
85
Changing Own Ship Track/Mark Distribution Setting
86
Erasing Track
87
Marks, Lines
88
Entering a Mark, Line
88
Changing Mark Attributes
89
Selecting Line Type
89
Erasing Marks, Lines
90
Waypoints
91
Entering Waypoints
91
Editing Waypoint Data
94
Erasing Waypoints
95
Changing Waypoint Mark Size
96
Searching Waypoints
97
Routes
98
Creating Routes
98
Connecting Routes
101
Inserting Waypoints
102
Removing Waypoints from a Route
103
Erasing Routes
104
Navigation
104
Navigating to a "Quick Point
104
Navigating to Waypoints
105
Navigating to Ports, Port Services (Navchart Only)
106
Following a Route
108
Canceling Route Navigation
111
Alarms
112
Audio Alarm On/Off
112
Arrival Alarm
113
Anchor Watch Alarm
114
XTE (Cross-Track Error)
115
Alarm
115
Speed Alarm
115
Proximity Alarm
116
Trip Alarm
116
Grounding Alarm (C-MAP Specification)
117
Alarm Information
118
Resetting Trip Distance
120
4 Video Sounder Operation
122
Sounder Displays
122
Selecting a Sounder Display
122
Description of Sounder Displays
123
Selecting Screen Split Method in Combination Displays
127
Automatic Sounder Operation
127
How the Automatic Sounder Works
127
Types of Automatic Sounder Modes
127
How to Enable Automatic Sounder Operation
128
Manual Sounder Operation
128
Selecting the Manual Mode
128
Selecting Display Range
128
Adjusting the Gain
129
Shifting the Range
129
Measuring Depth, Time
130
Reducing Interference
130
Reducing Low Level Noise
131
Erasing Weak Echoes
132
White Marker
133
Picture Advance Speed
133
Advancement Independent of Ship's Speed
133
Advancement Synchronized with Ship's Speed
134
Display Colors
135
Alarms
136
Audio Alarm On/Off
136
Bottom Alarm
137
Fish Alarm
137
Fish Alarm (B/L)
138
Water Temperature Alarm
138
When an Alarm Setting Is Violated
139
Water Temperature Graph
140
Changing Pulse Repetition Rate
140
Saving Sounder Picture to an SD Card
140
Interpreting the Sounder Display
141
Zero Line
141
Bottom Echo
141
Fish School Echoes
142
Surface Noise/Aeration
142
5 Ais Operation
144
Turning AIS Feature On/Off
144
AIS Symbols
146
Setting Number of AIS Targets to Display
146
Activating Targets
147
Displaying Target Data
147
Lost Target
148
Setting CPA and TCPA
148
Proximity Alarm
149
Showing, Hiding AIS Target Tracks
150
Choosing Vector Time
150
Displaying Past Positions of AIS Targets
151
6 Data Transfer
152
Memory Card Operations
152
Deleting All Data (Other than Chart Data) from Memory Cards
152
Saving Data to a Memory Card
153
Playing Back Data from a Memory Card
154
Uploading, Downloading Data
155
Setting Communication Software on the PC
155
Uploading or Downloading Data
155
Loading Waypoint Data from Yeoman
158
Receiving Data Via Network Equipment
159
Outputting Data through the Network
160
7 Customizing Your Unit
162
General Setup
162
Radar Setup
165
Radar Display Setup
165
Radar Range Setup
168
Function Key Setup
169
Plotter Setup
171
Navigation Options
171
Function Key Setup
172
Chart Setup
174
Chart Offset
174
Navionics GOLD Chart Attributes
175
C-MAP Chart Attributes
176
Data Boxes Setup
181
Hot
182
Navigator Setup
183
Navigation Data Source
183
GPS Receiver Setup (Set Equipped with GP-310B/320B)
185
TD Display Setup
188
Nav Data Display Setup
190
Sounder Setup
191
System Setup
191
Sensor Setup
194
Sounding Range, Zoom Range, Bottom Lock Range
195
Function Key Setup
196
Nav Graphic Display Setup
198
8 Maintenance, Troubleshooting
200
Preventive Maintenance
200
Replacement of Batteries
201
Replacement of Fuse
201
Replacing the Magnetron
202
Replacing the Synchro Belt (1824C Only)
202
Trackball Maintenance
202
Simple Troubleshooting
203
General
203
Radar
203
Plotter
204
Sounder
205
Diagnostics
206
Memory I/O Test
206
Display Unit Test
207
Test Pattern
209
Keyboard, Remote Controller Test
210
GPS Status Display
211
Clearing Memories
212
Error Messages
213
Appendix
214
Menu Overview
214
Radar Alarms
222
Geodetic Chart List
223
Icons
224
Specifications
226
Index
232
