32
5) Connect three plugs to the antenna unit:
P801 (9 way), P813 (2 way), and P810
(10 way).
TP804
J813
J810
J801

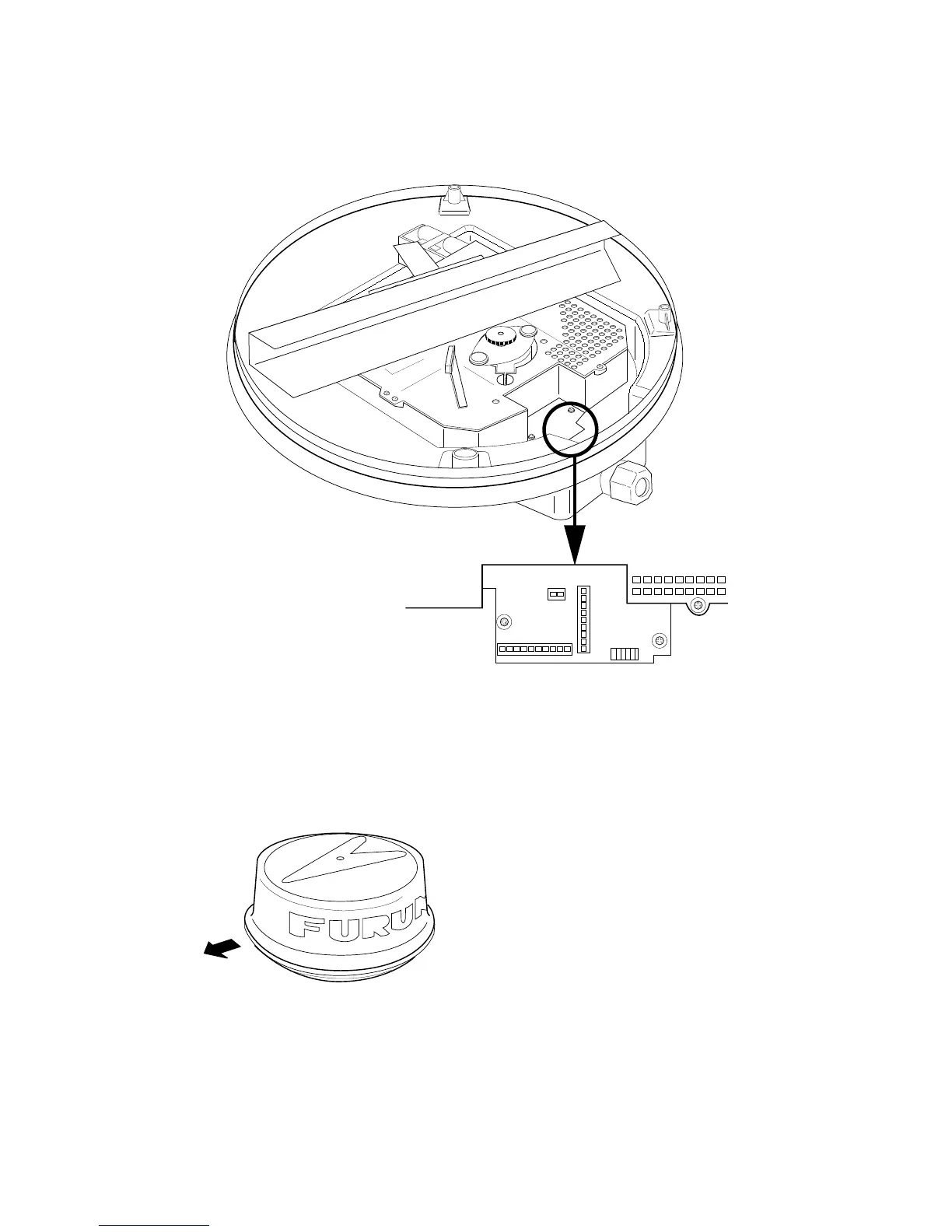

Figure 5-5 Antenna unit (MODEL 821), inside view
6) Put the radome on the radome base as-
sembly. The arrow should face toward
the bow.
Figure 5-6 How to position the
radome cover (MODEL 821)
7) Tighten the fixing bolts for the radome.
8) The cable run must be properly sup-
ported, and must not be used to provide
impromptu foot-holds or hand-holds!
Clips or hangers should be employed ev-
ery 20 cm.
Ship's
bow
