2.1 Optional Temperature/Speed Sensor,
Temperature Sensor
Connect the temperature/speed sensor or temperature sensor to the XDR port with
the converter connector (Type: 02S4147, Code No.: 000-141-082, option).

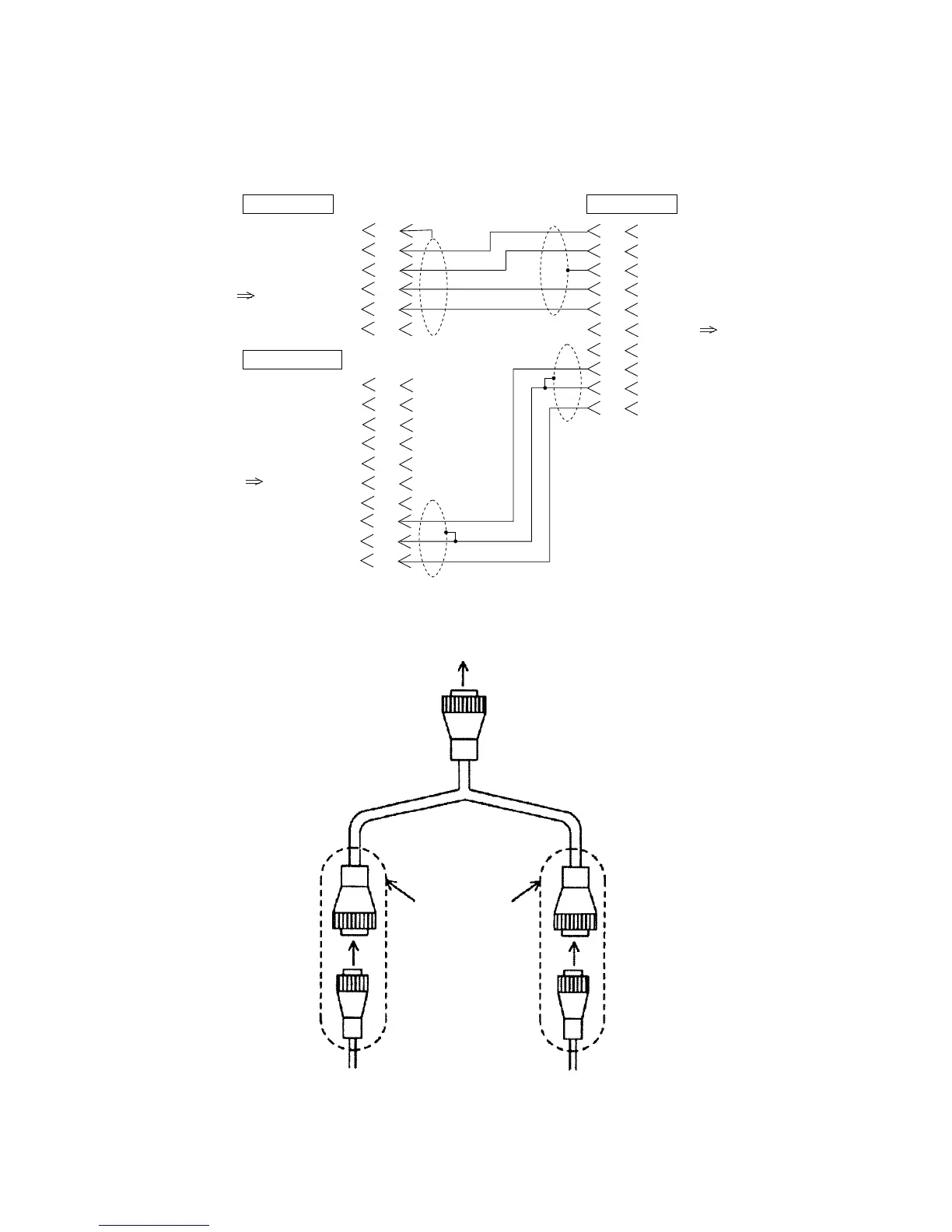

Connection of temperature/speed sensor
Connection of transducer, temperature sensor, speed/temperature sensor
MJ-A6SRMD
SHIELD
TEMP
TEMP0V/SPD0V
SPD
+V
NC
1
2
3
4
5
6
MJ-A10SRMD
NC
NC
NC
NC
NC
NC
NC
XDR+
XDR SHIELD
XDR-
1
2
3
4
5
6
7
8
9
10
4
7
3
1
2
5
6
8
9
10
MJ-A10SPF
TEMP
TEMP0V
SPD0V/ SHIELD
SPD
+V
NC
NC
XDR+
XDR SHIELD
XDR-
XDR port on the
DFF1
Temperature
sensor OR
Temperature/
speed
sensor
Transducer
Tape connector with
self-vulcanizing tape
and then vinyl tape
to waterproof
connector. Bind tape
end with cable tie.
MJ-A6SRMD MJ-A10SRMD
MJ-A10SPF
Connect to XDR port
at network sounder
Temperature, Speed/temperature
sensor connector
Transducer connector
