1-1
1. CONTROLS, INDICATIONS

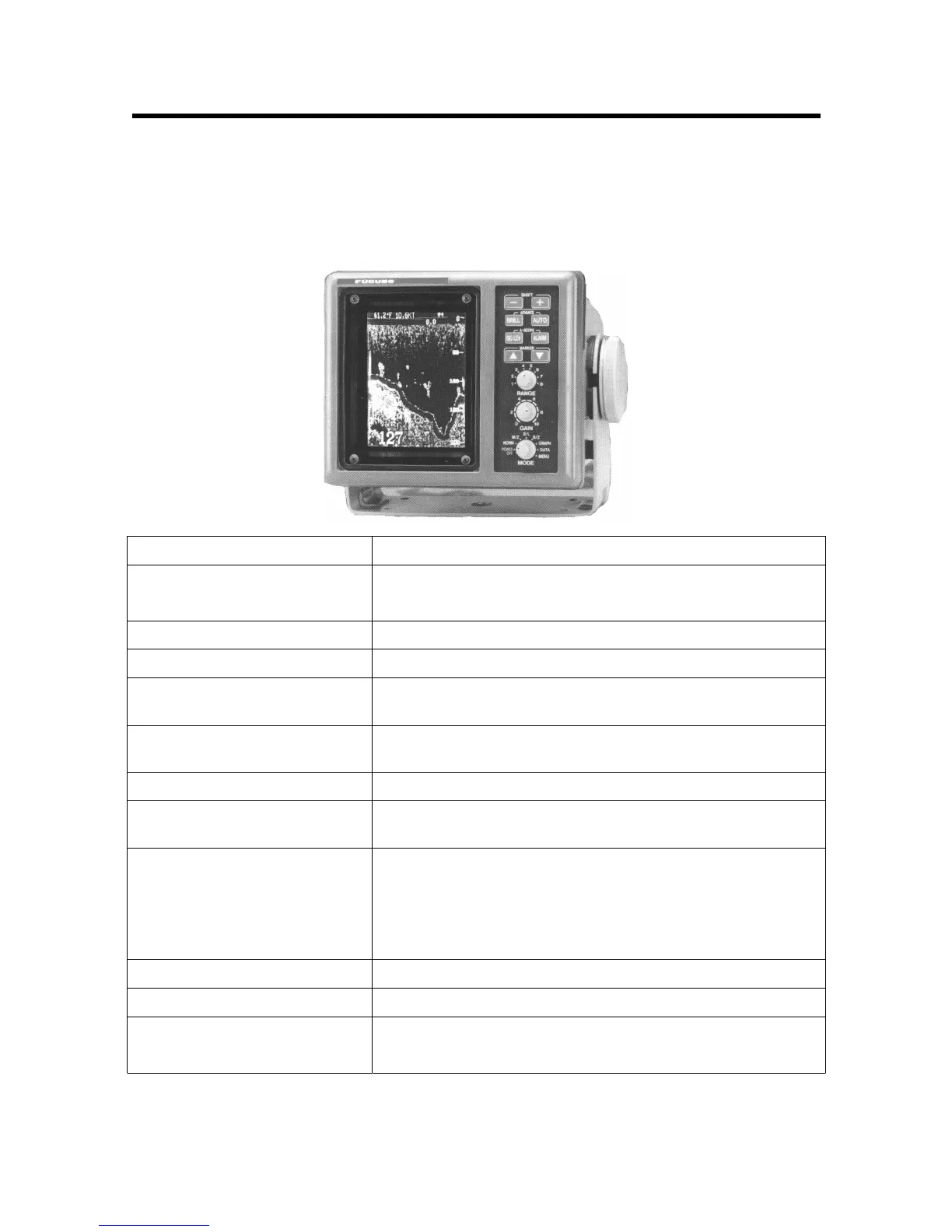

1.1 Control Description
The equipment is so designed that even a first time user can quickly become acquainted with
the operating procedure. Operation of each control or key is acknowledged by an alphanumeric
message or symbol indication on the screen.
Control Function
SHIFT-, SHIFT+
(Appears in text as [-], [+].)
• Change display start depth.
•
Select options on menus.
BRILL Adjusts brilliance of display.
AUTO Turns the automatic sounder adjustment feature on/off.
ADVANCE (BRILL + AUTO) Pressing the BRILL and AUTO keys together selects display
advancement speed.
SIG LEV Eliminates low intensity echoes (up to light-blue echoes) in two
steps.
ALARM Opens/closes the alarm menu.
A-SCOPE (SIG LEV + ALARM) Pressing the SIG LEV and ALARM keys together displays the
A-scope display at the right 1/4 of the screen.
MARKER ▲, MARKER ▼
(Appears in text as [▲], [▼].)
• Shift the Variable Range Marker (VRM).
• Set alarm zone.
•
Select menu items.
•
Set white marker.
RANGE Sets the basic range of the display.
GAIN Adjusts receiver sensitivity.
MODE
•
Turns unit on/off.
•
Selects display mode.
