2.3 Setting option items
The Option menu provides various settings for downloading real time data or depicting
graphics.
To open the File dialog box, select Option - Option on the menu bar. Click the File tab if it
is not already selected. The File dialog box appears.

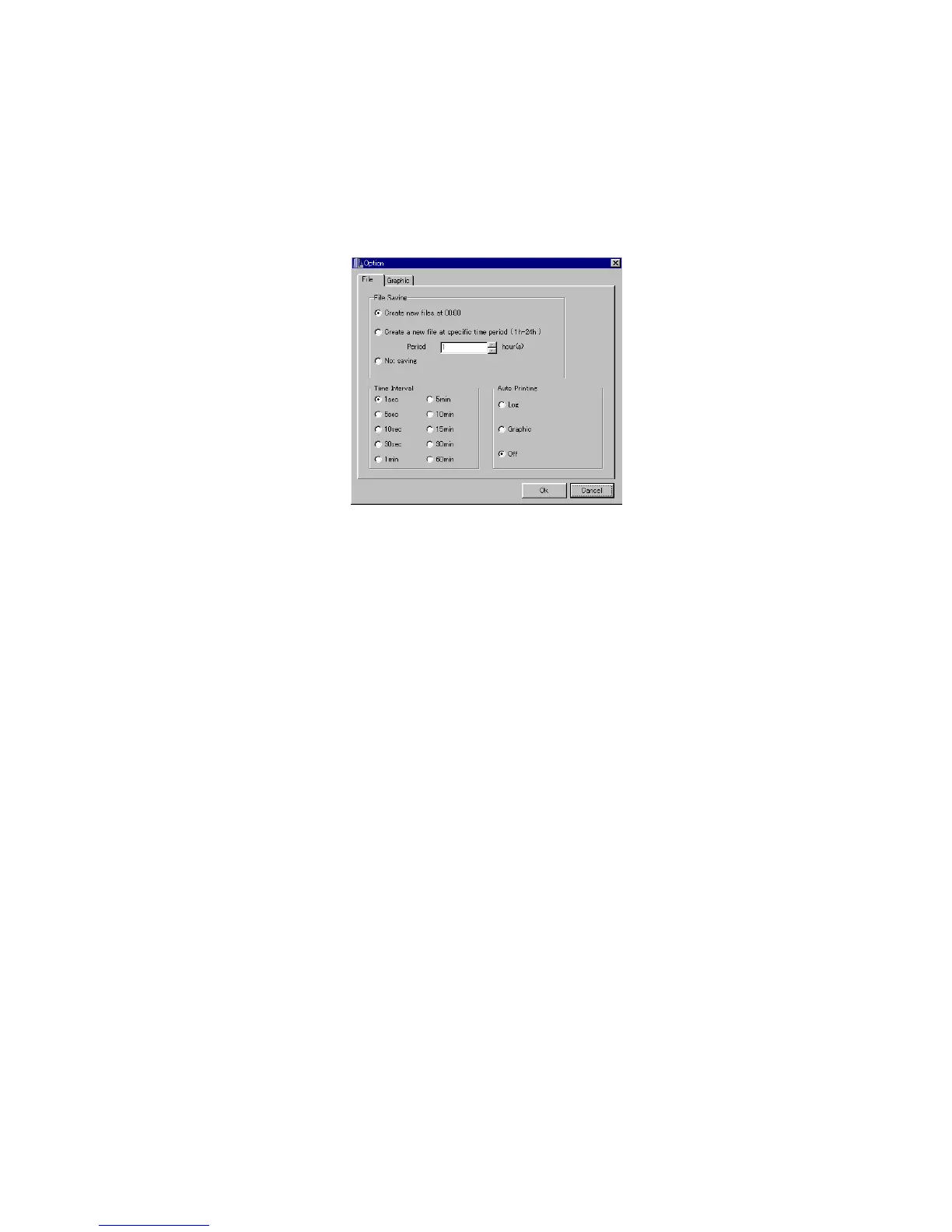

Figure 6 File tab on the Option dialog box
File Saving option
Create new files at 00:00:
New files will be automatically created every day at 00:00. (Initial file is
created when the Start button is pressed.) Files will be named as
“yyyymmdd” (year+month+day).
Create a new file at specific time period (1h - 24h):
A new file is created and data is saved at a period of specified time (hour).
Set hour(s) between 1 and 24 hours at 1 hour period. If you set 1 hour, for
example only the recent one hour data is saved and old data is overwritten.
The file is named as “userfile.dat”.
Not saving:
Data received from the FE-700 is displayed on the screen, but not saved to
the hard disk of the PC.
Time Interval option
Select time interval to extract received data. Extracted data is displayed on
the text screen or graphic screen.
Auto Printing option
Log: Printing is automatically performed every 60 lines of text data.
Graphic: Printing is automatically performed every graphic page.
Off: No automatic printing.
To change a setting, press appropriate radio buttons or press up/down arrow button. After
setting as desired, press the OK button. The dialog box closes.
