Furuno FELCOM 16 Installation Manual

8
2. WIRING
Power supply
12-24 VDC
1.2 m
Copper strap
Ground wire
RW-4747
TP58A15W-RG58, 15 m
TP5FBAW-5DFBB, 30 m
0.34 m
8D-FB-CV, 50 m
12D-SFA-CV, 100 m
For 50 or 100m antenna cable
TNCP-NJ
Cable assy
TPA5FB0.3NJ5FBA-5DFB
0.3 m
Connector N-P-12DSFA
N-P-8DFB
(supplied, local arrange)
17JE-573-10
(5 m, option)
FM-C3FPS-002-035, 3.5 m
PC
This unit is shipped with 10 A fuse.
Replace fuse with 5 A when using
the equipment with the power supply
24 VDC .
And then, attach a label for 5 A to the
fuse cover on power cable.
Use of wrong fuse can result in damage
to the equipment.
CAUTION

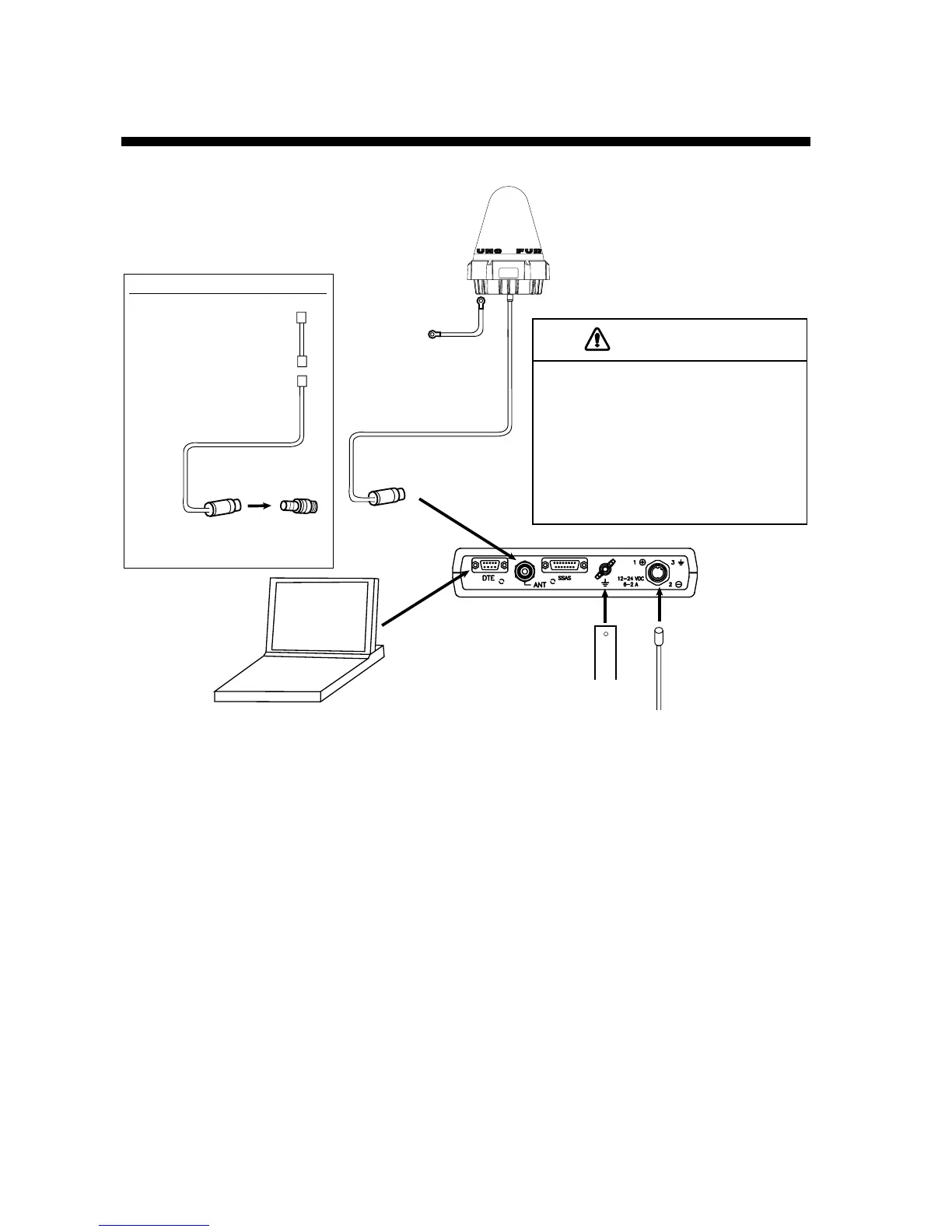

Wiring of FELCOM 16
