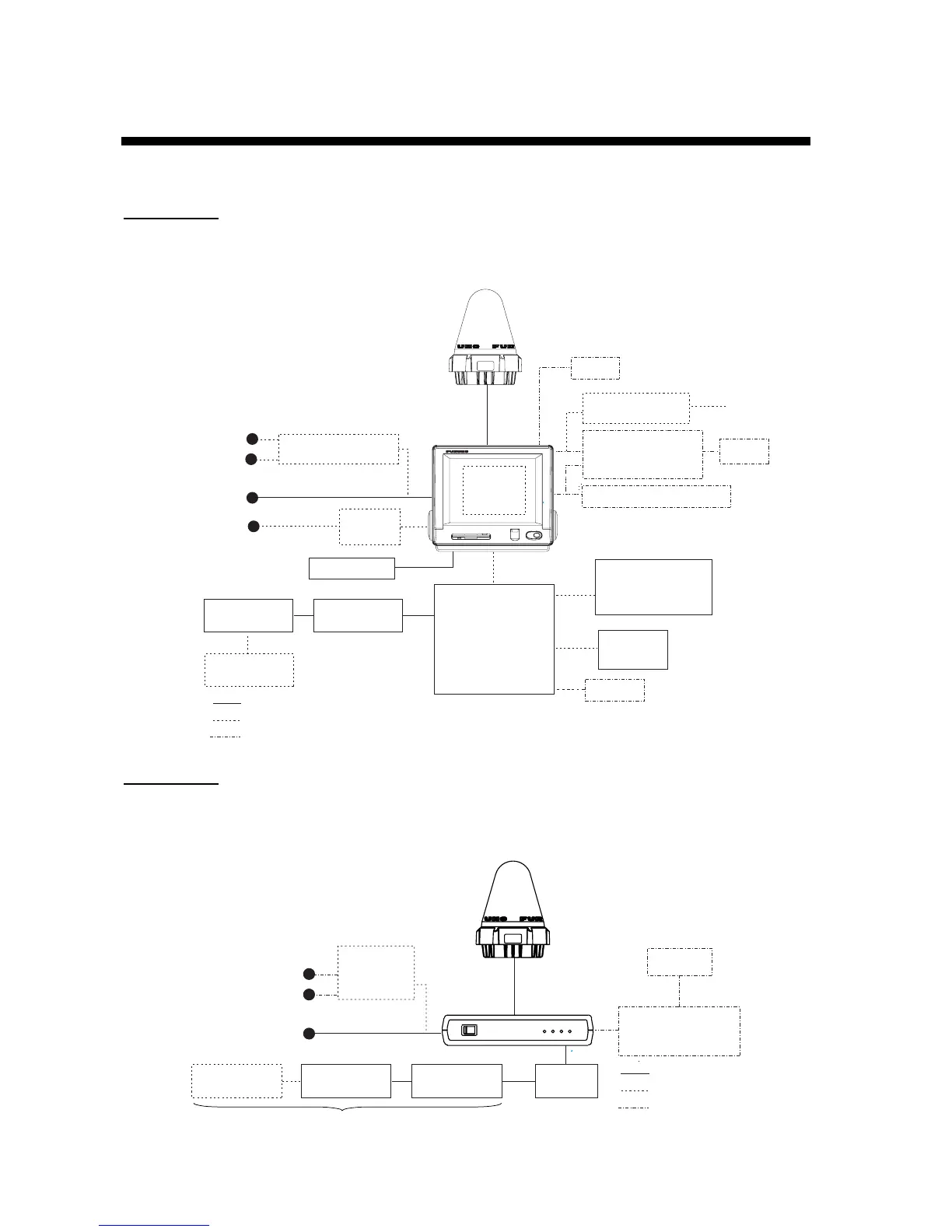

SYSTEM CONFIGURATION
Regulations require at least two SSAS alert units.
FELCOM 15
Printer
PP-510
ANTENNA
UNIT
IC-115
TERMINAL UNIT
IC-215
JUNCTION
BOX
IC-315
Navigator
100-115/200-230 VAC
1φ, 50/60 Hz
: Standard Supply
: Option
: Local Supply
AC-DC Power Supply
PR-240-CE*1
*1 Any AC-DC power supply
fulfilling requirements of
IEC 60945 may be used.
Personal
Computer
(PC/AT compatible)
EGC Printer
PP-50
Shipboard LAN (Ethernet)
GPS receiver
OP16-24
Mini Keyboard
DGPS
Distress Alert/
Received Call Unit
IC-305
Alarm Unit
IC-306
24 VDC
Printer
SSAS Alert Unit
IC-307
SSAS Alert Unit
IC-307
(Max. 3 units)
SSAS Alert Unit
IC-307
12-24 VDC
24 VDC
24 VDC
FELCOM 16
: Standard
: Option
: Local Supply
PRINTER
ANTENNA
UNIT
IC-116
COMMUNICATION UNIT IC-216
(with internal GPS receiver)
AC-DC
Power Supply
PR-240-CE
PERSONAL
COMPUTER
(PC/AT compatible)
POWER
I
O
INMARSAT MINI-C MOBILE EARTH STATION FURUNO
PO
W
ER
LO
GIN
TX
ER
RO
R
JUNCTION BOX
IC-315
100-115/200-230 VAC
1φ, 50/60 Hz
12
-24 VDC
24 VDC
SSAS Alert Unit
IC-307
SSAS Alert Unit
IC-307
(Max. 3 units)
SSAS Alert Unit
IC-307
