5.9 IB-583
5-57
5.9 IB-583
IB-583 is a NBDP terminal newly developed for FS-1560/FS-2570.
Both TERM CPU board (16P0209A) and POW board (16P0211A) are not compatible
with those used in the FELCOM 15 terminal unit because some parts are not mounted.

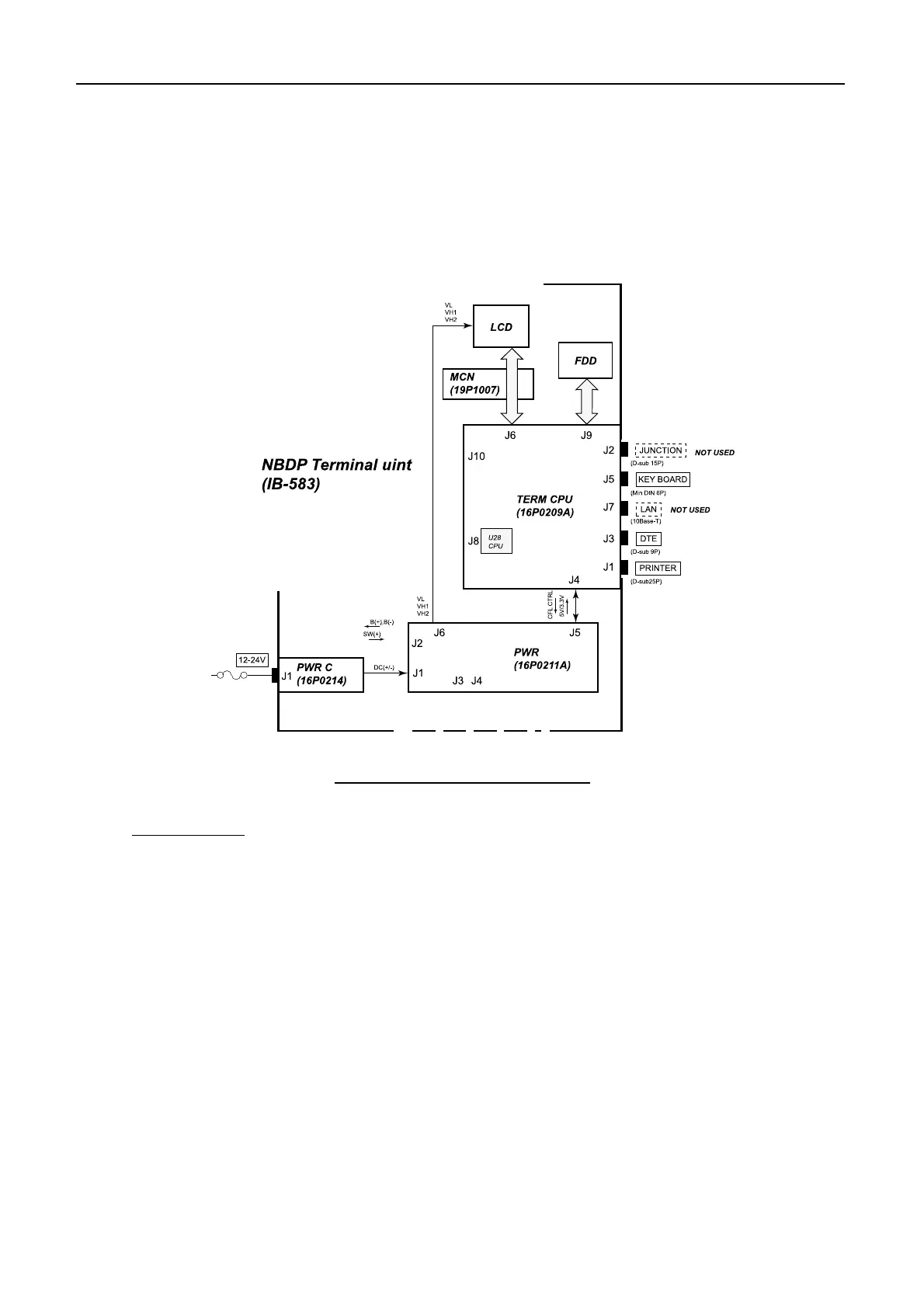

Fig.5.9.1 Block diagram of IB-583
Major function
1) Communication with RF CON/CPU board (RS-232C, asynchronous, No command)
Baud rate: 9600
Data length: 8 bit
Stop bit: 1 bit
Parity: No parity
Flow control: None
Communication control: None (Only TX/RX data)
2) LCD display (U12) control
3) Backup by lithium battery
4) Key board connection (U7)
5) FDD (U7): 2HD
The IB-583 does not support MIF communication.
