Furuno FS-1570 - TERM CPU Board (16 P0209 A)

5.9 IB-583
5-58
5.9.1 TERM CPU board (16P0209A)

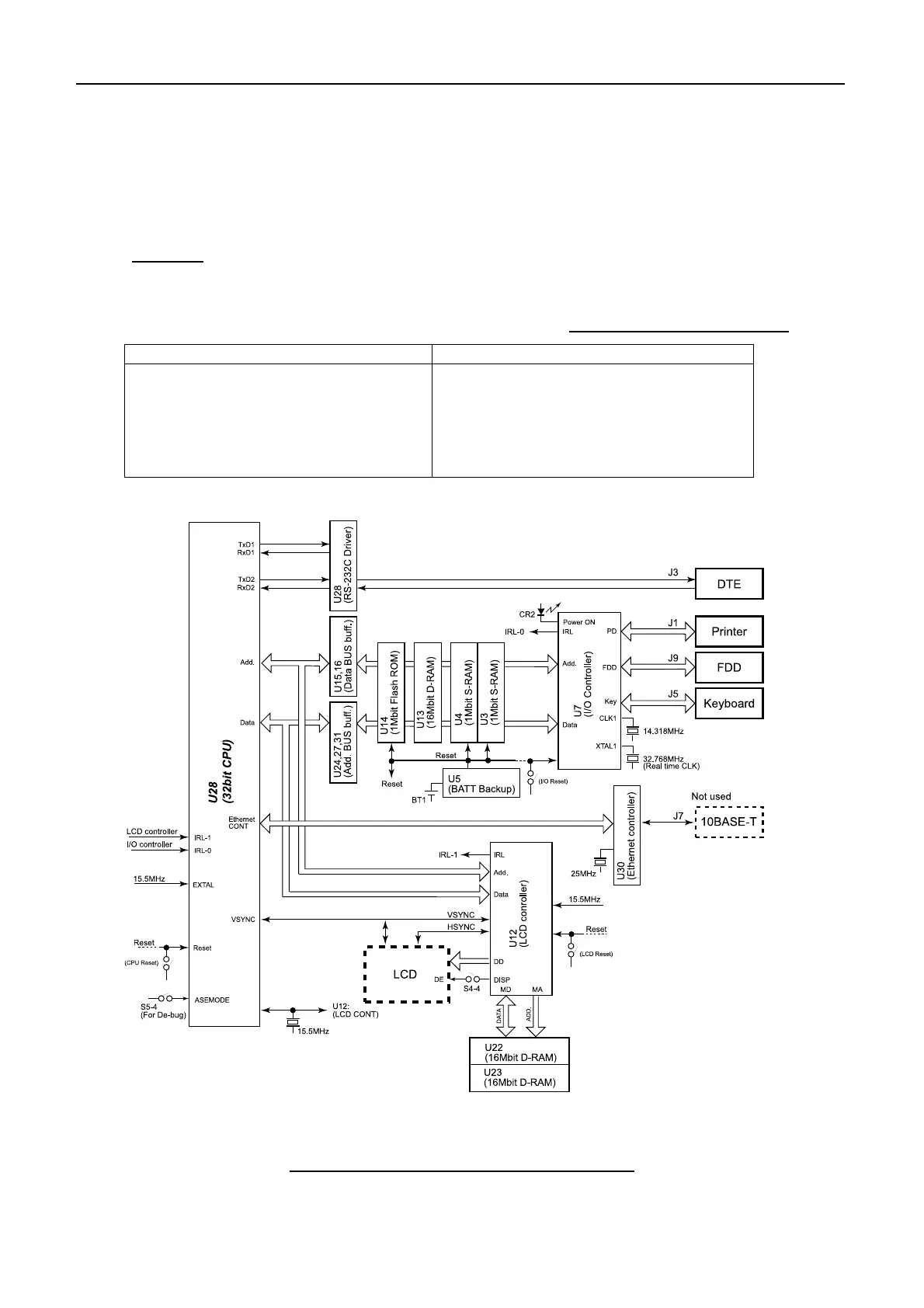

Fig.5.9.2 shows the block diagram of TERM CPU board.
Memory
Table 5.9.1 lists the memory contents.
Table 5.9.1 Memory contents
Fig.5.9.2 Block diagram of TERM CPU Board
U3 and 4 (S-RAM backupped) U14 (Flash ROM)
· AAB/ID
· USER CH
· Station List
· Scan Group
· Timer OP
· System data
Program
(Including ITU-CH table)
