FV-110 system
1-4
11.Polarisation motor.
12.Polarisation encoder.
13.Block Up Converter (BUC).
14.Low Noise Block downconverter (x2), (LNB).
15.Ortho Mode Transducer (OMT) (not visible on photo).
16.Inertial Sensor Module (ISM).
17.Elevation locking pin to lock the antenna dish in a fixed position.
In switch-off position the Single Motor Driver modules (SMD (used “DDM” in log))
and the BUC are turned off for safe conditions during service and repair. The switch
must be in on position for normal ADU operation.
18.Single Motor Driver Module for Azimuth (SDM (used “DDM” in log)).
19.Azimuth motor.
20.Azimuth encoder.
21.Rotary joint.
22.Feed horn.

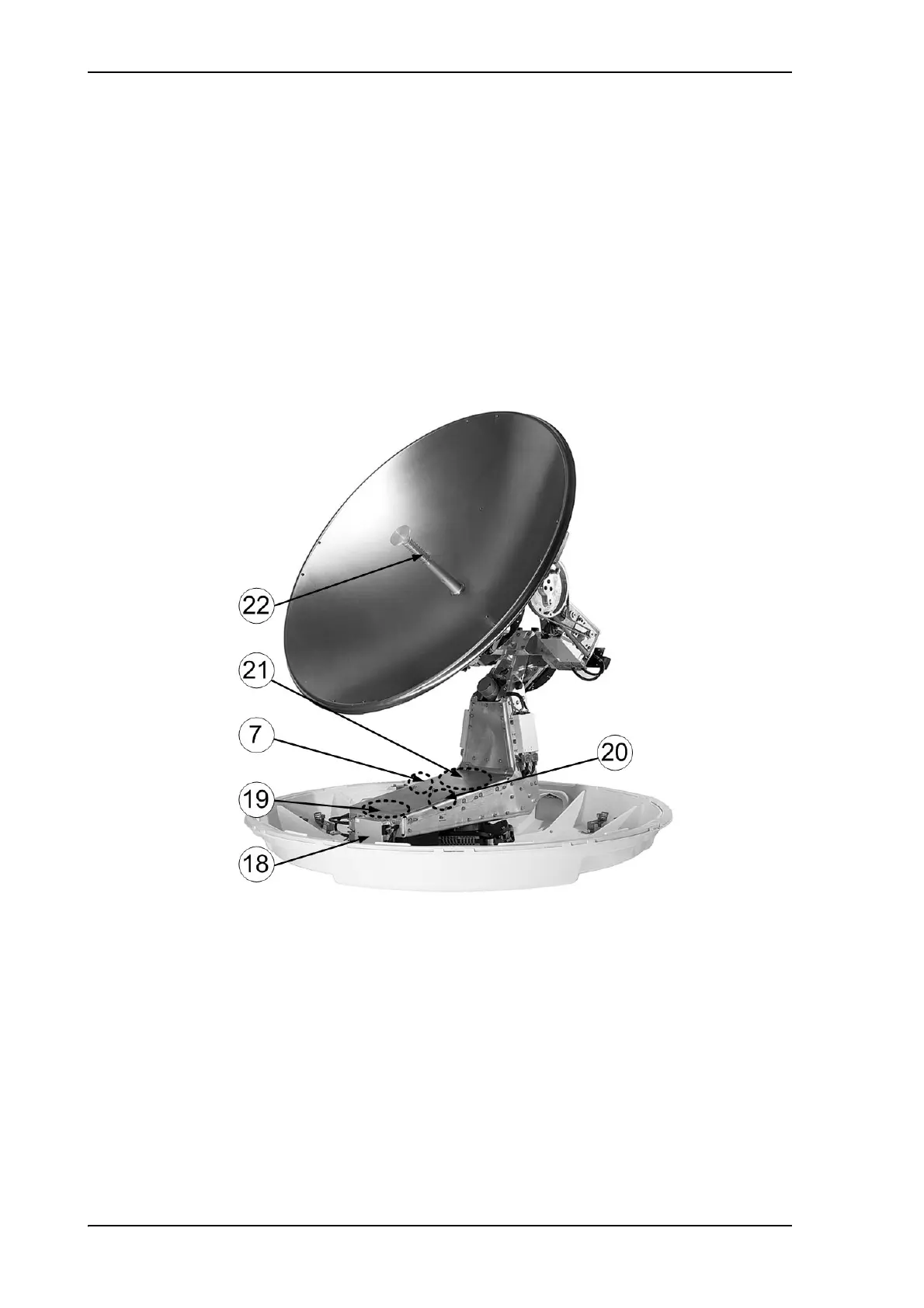

Figure 1-4: FV-110: Above Deck Unit modules 2/2
