SYSTEM CONFIGURATIONS
xii

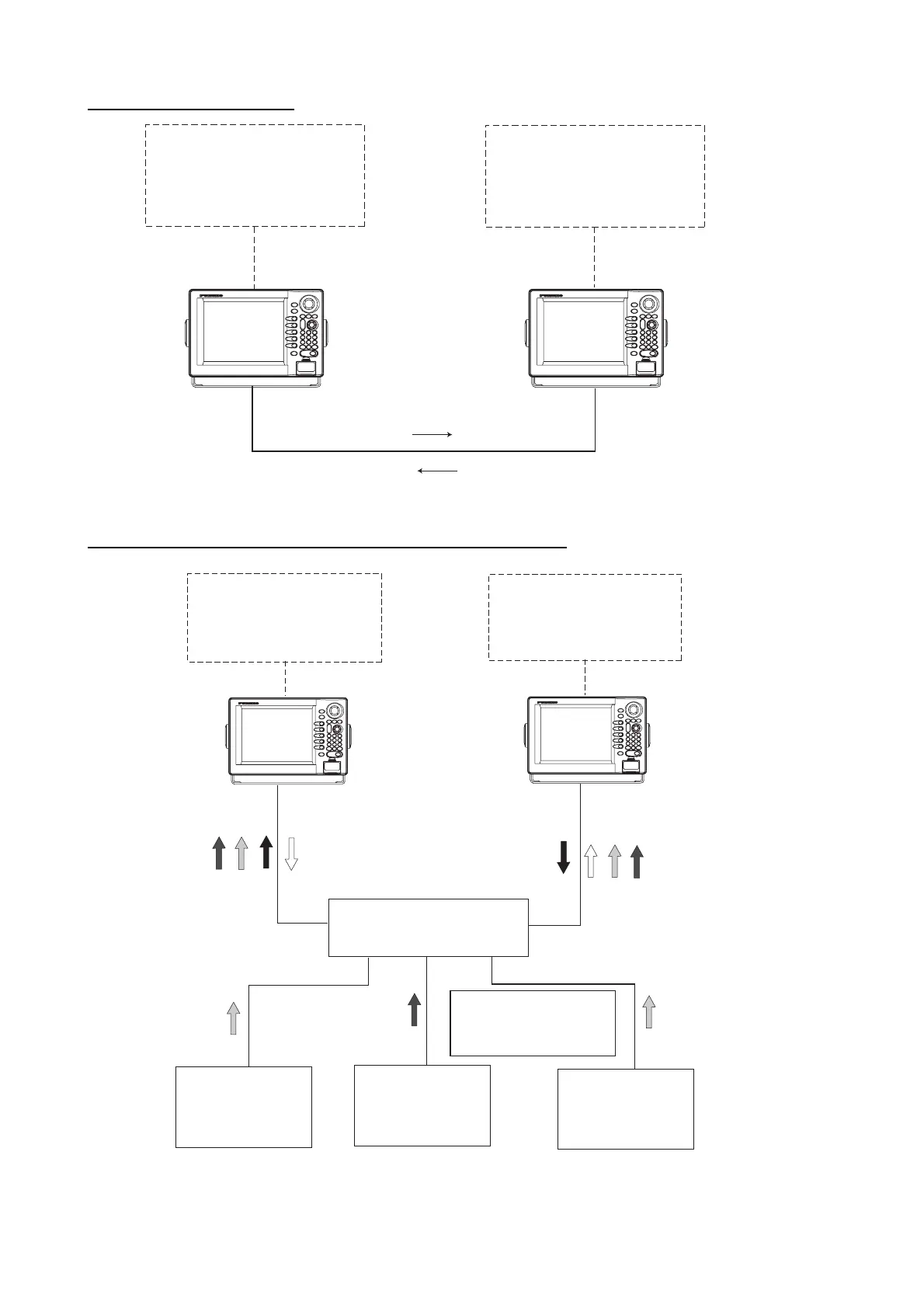

Two-unit NavNet system
Radar Antenna Unit,
GPS Receiver
GP-320B/330B,
OR
Weather Station WS-200
Radar, plotter data
Radar, plotter data
Radar Antenna Unit,
GPS Receiver
GP-320B/330B,
OR
Weather Station WS-200
RADAR
or
PLOTTER
RADAR
or
PLOTTER
Two-unit NavNet system
Three-or-more-unit NavNet system (Max. 4 display units)
HUB
Network Sounder
ETR-6/10N
ETR-30N
(option)
Radar Antenna Unit,
GPS Receiver
GP-320B/330B,
OR
Weather Station WS-200
Radar Antenna Unit,
GPS Receiver
GP-320B/330B,
OR
Weather Station WS-200
RADAR
or
PLOTTER
RADAR
or
PLOTTER
Sounder data
Radar data
Plotter data
Note: The picture disappears
10 seconds after the NavNet
cable is disconnected from a
"sub" NavNet display unit.
Network Sounder
ETR-6/10N
ETR-30N
(option)
Facsimile
Receiver
FAX-30
(option)
Sounder data
Facsimile data
Three-or-more-unit NavNet system
