6
Desktop mounting
Follow the procedures below to mount the DCU12 on a desktop. This method requires the hanger.
1. Attach a liner to each side of the DCU12.
2. Fix the hanger by using self-tapping screws (supplied).
3. Screw knob bolts into the DCU12, set it to the hanger, and tighten the knob bolts.

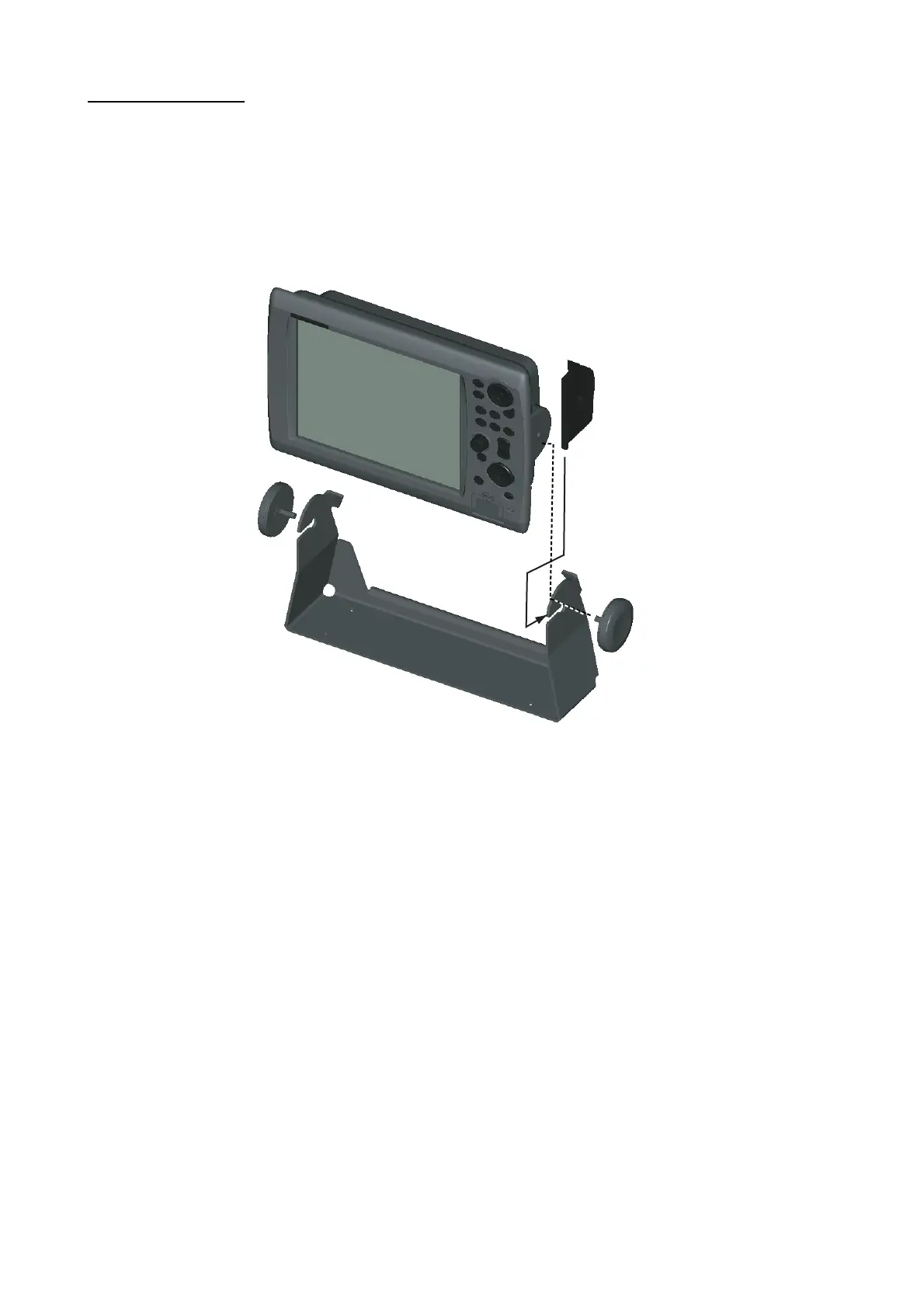

DCU12
Hanger
Knob
Liner
