1. MOUNTING
1.1 Mounting the Control Unit

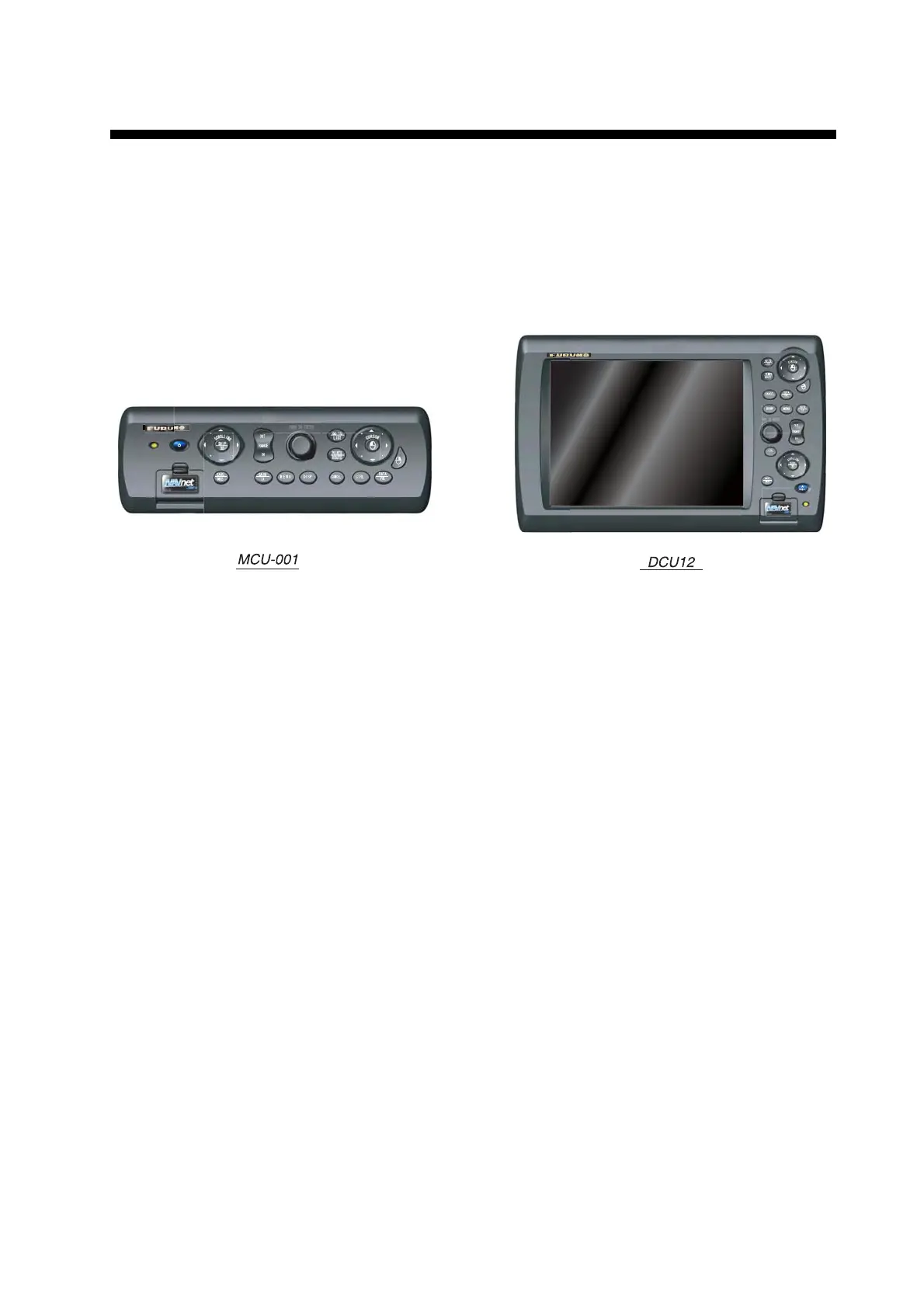

There are two types of control units: Control Unit MCU-001 and Display Control Unit DCU12. The
former is the keyboard type, and the latter has an LCD display and keyboard.
When selecting a mounting location for the control unit, keep the following in mind:
• The temperature and humidity at the mounting location should be moderate and stable.
• Locate the unit away from exhaust pipes and ventilators.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Keep the unit away from electromagnetic field generating equipment such as motors and gen-
erators.
• For maintenance and checking purposes, leave sufficient space at the sides and rear of the unit
and leave slack in cables. Minimum recommended space is shown on the outline drawing for
the control units.
• Do not mount the DCU12 on the overhead.
• A magnetic compass will be affected if the control unit is placed too close to it. Observe the
compass safe distances shown in the SAFETY INSTRUCTIONS to prevent disturbance to the
magnetic compass.
