1. INSTALLATION
1-5
2. Remove six bolts (M4) on the hanger cover of the handset.
3. From the front side of the front panel, fasten the hanger plate to the fixing holes
with the two bolts (M4) which are attached on the panel.
1.4.3 Transceiver unit (FS-1575T/FS-2575T)
1. Attach the stay (supplied) to the inside of the transceiver unit.
1) Remove the M4 screws (FS-1575T: three screws, FS-2575T: four screws) on
the transceiver unit as follows to open the radiator plate.

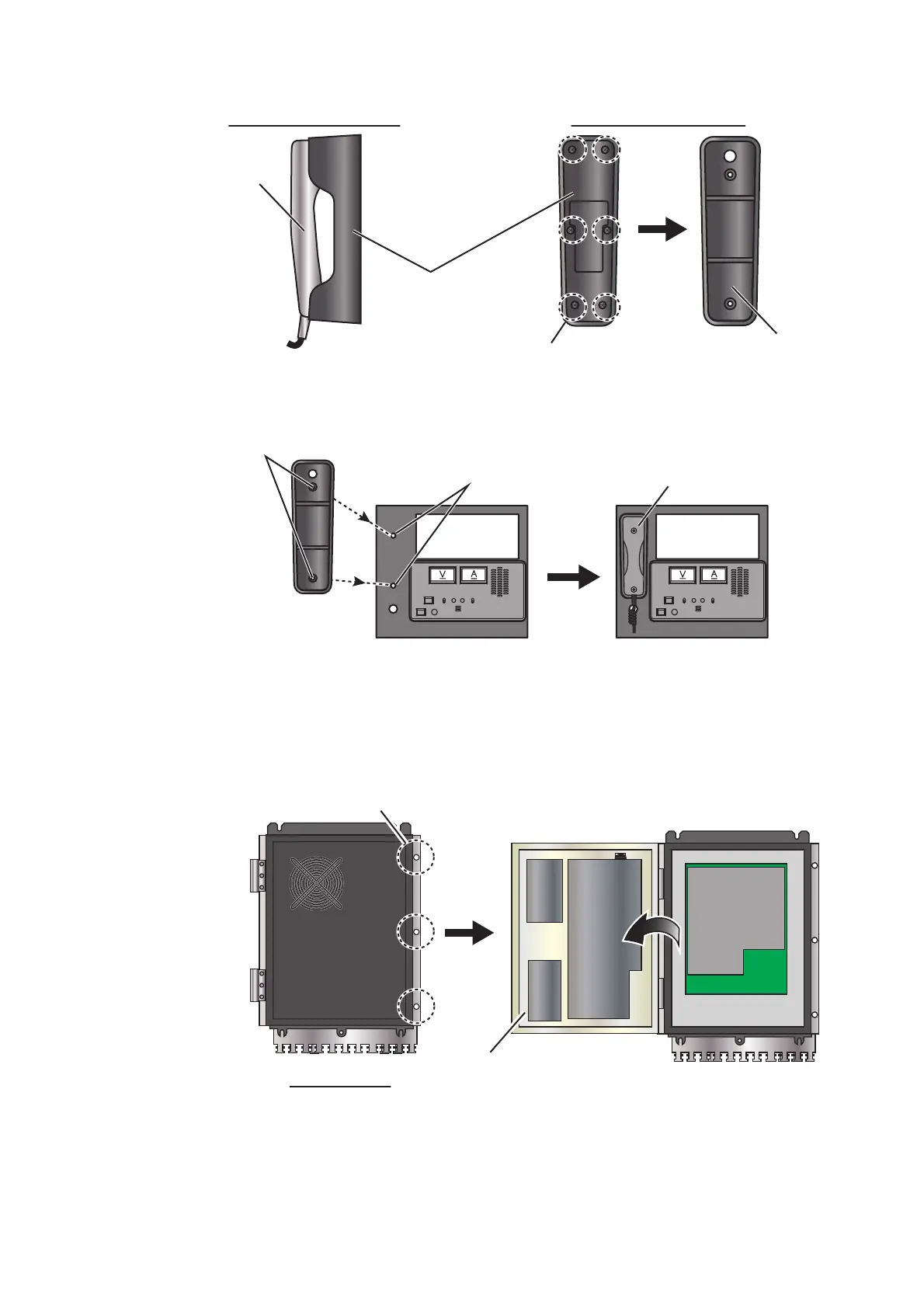

Handset
Hanger Cover
Hanger cover (side view) Hanger cover (front view)
Six screws to remove
Hanger Plate
Control Unit Control Unit
Fixing locations (2 places)
Handset
Bolts (2 pcs., attached on the panel)
Hanger Plate
Three screws
Ex): FS-1575T
Radiator plate
To Next Page
