1. INSTALLATION
1-6

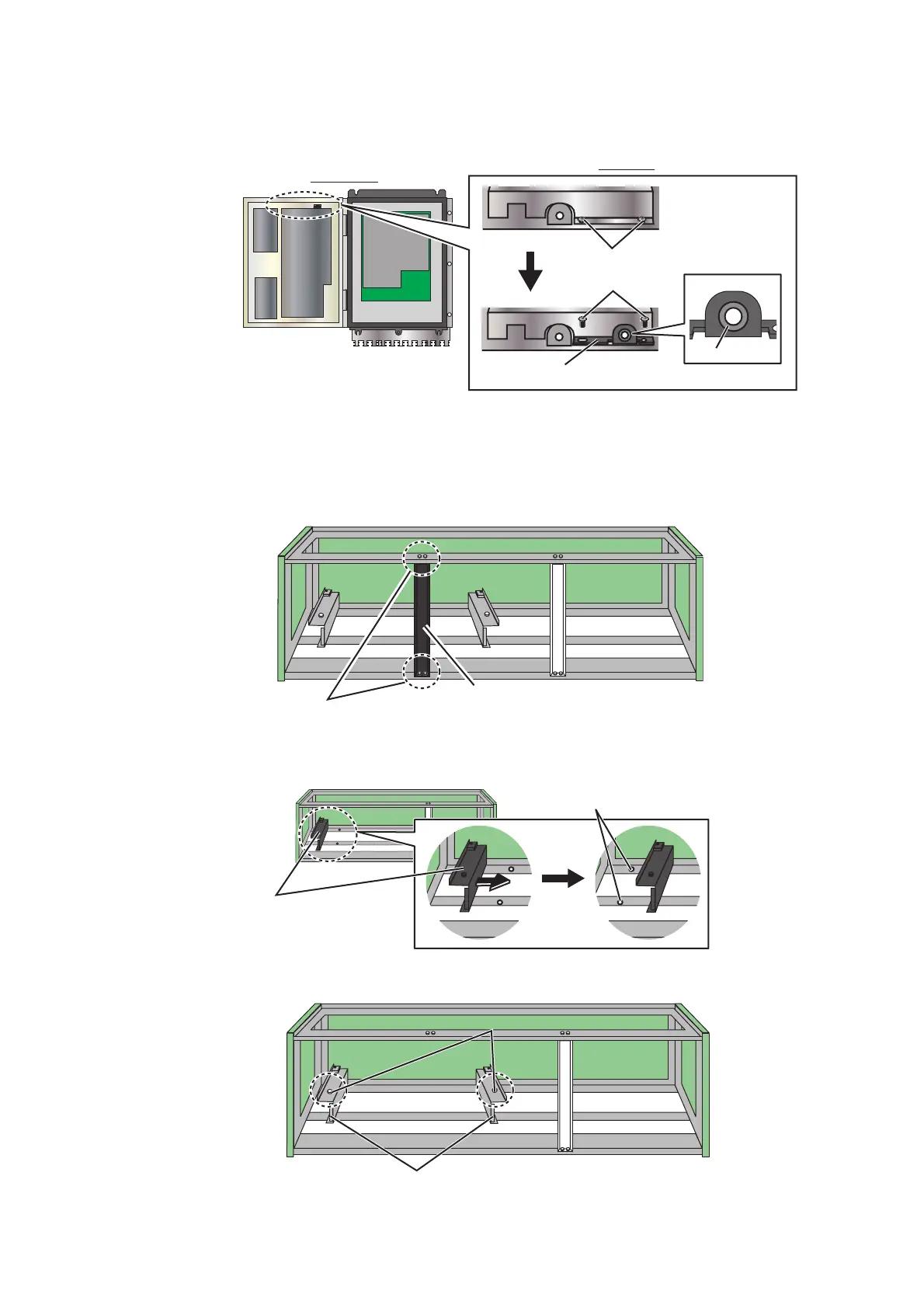

2) Attach the stopper support (supplied) to the upper side of the transceiver unit
with the two screws (M3u8, supplied). Then attach the rod guides to the stop-
per support.
3) Close the radiator plate.
2. Install the transceiver unit to the inside of the console.
1) Remove four screws (M5) on the top and bottom of the support plate (left) to
remove the support plate (left).
2) For FS-1575T, change the location for the fixing plate (left) as follows. For FS-
2575T, the plate may be left in the original position.
3) Remove two M5 screws on the fixing plate (right and left).
Stopper support
䋨
supplied
䋩
Two screws
(M3×8, supplied)
Rod guide
䋨
supplied
䋩
Rod guide
䋨
supplied
䋩
Support plate (left)
Four screws
Fixing plate (left)
Original fixing holes
M5 screw
Fixing plates
To Next Page
