4. INSTALLATION
4-8
How to change orientation of the front cover of DS-605
The front cover of the DS-605 can be oriented up, down, right or left. To change the
orientation of the front cover, do the following:
1. Remove eight screws from two hinges.
2. Remove two screws from the latch.
3. Remove the hinges and the hidden lids for fixing hole of latch in consideration of
the opening direction.
The hidden lids for fixing hole of latch are taped on each side.
4. Orient the front cover as desired and fix the hinges and latch.
Note: Set the front cover so the FURUNO logo on the cover is right side up. The drain
hole should be down.

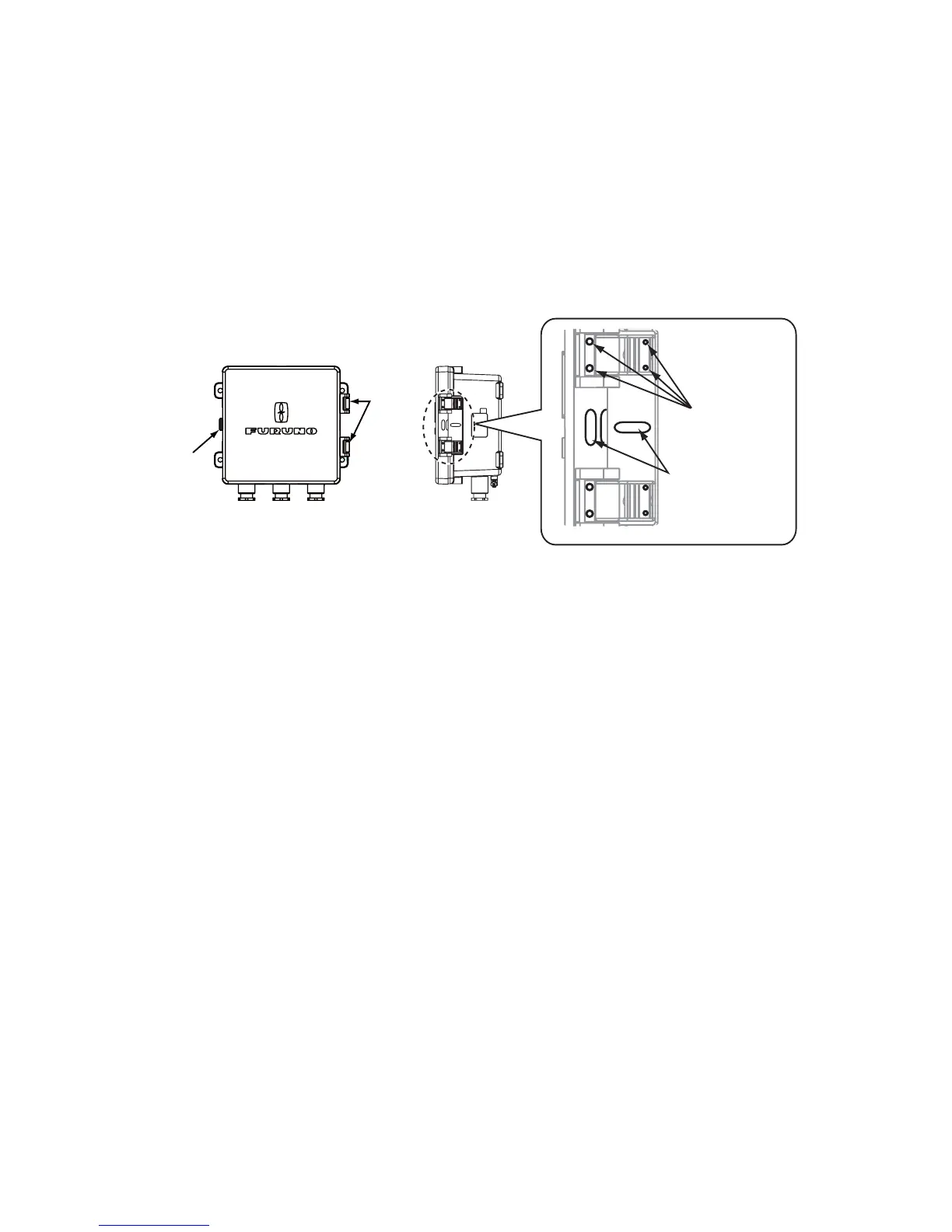

Latch
Hinge
Screws
for hinge
Hidden lids for
fixing hole of
latch (four sides)
