2.8 Grid
You may configure the grid on the vertical sonar display as desired from the
Grids menu.

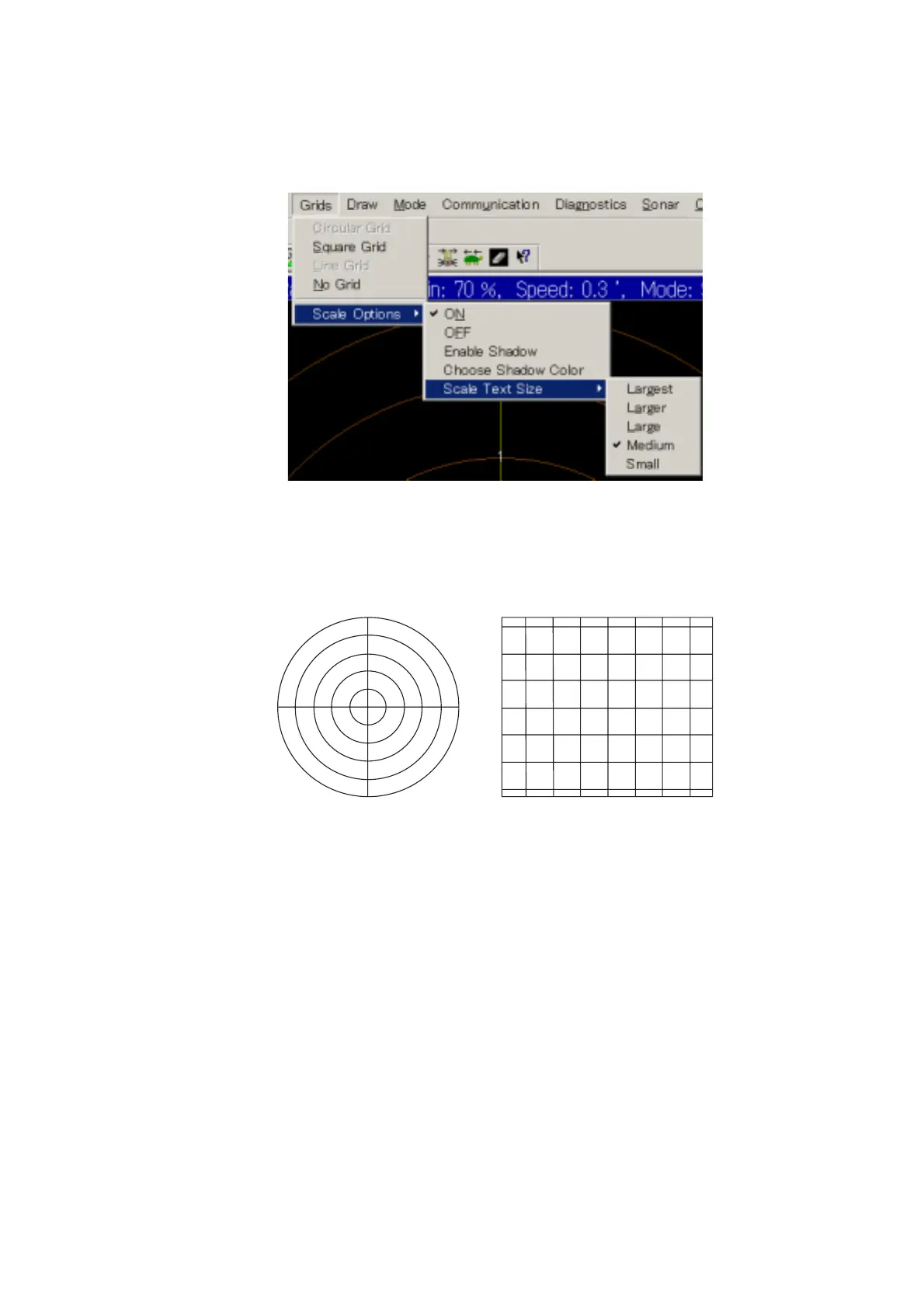

Grids menu, Scale Options, Scale Text Size selected
Grids menu description
Circular grid: Check to display a circular grid.
Square grid: Displays a square grid.
Circular grid Square grid
Circular and square grids
No Grid: Check to turn off grid.
Scale options: Turns scale on or off, turns shadow behind scale on or off, and
chooses text scale text size.
Enable Shadow: Check to enable shadowing behind scale.
Choose Shadow Color: Click to display color dialog box to
choose color of shadow.
Scale Text Size: Choose text size from small, medium, large,
larger and largest.
