2. WIRING
2-14

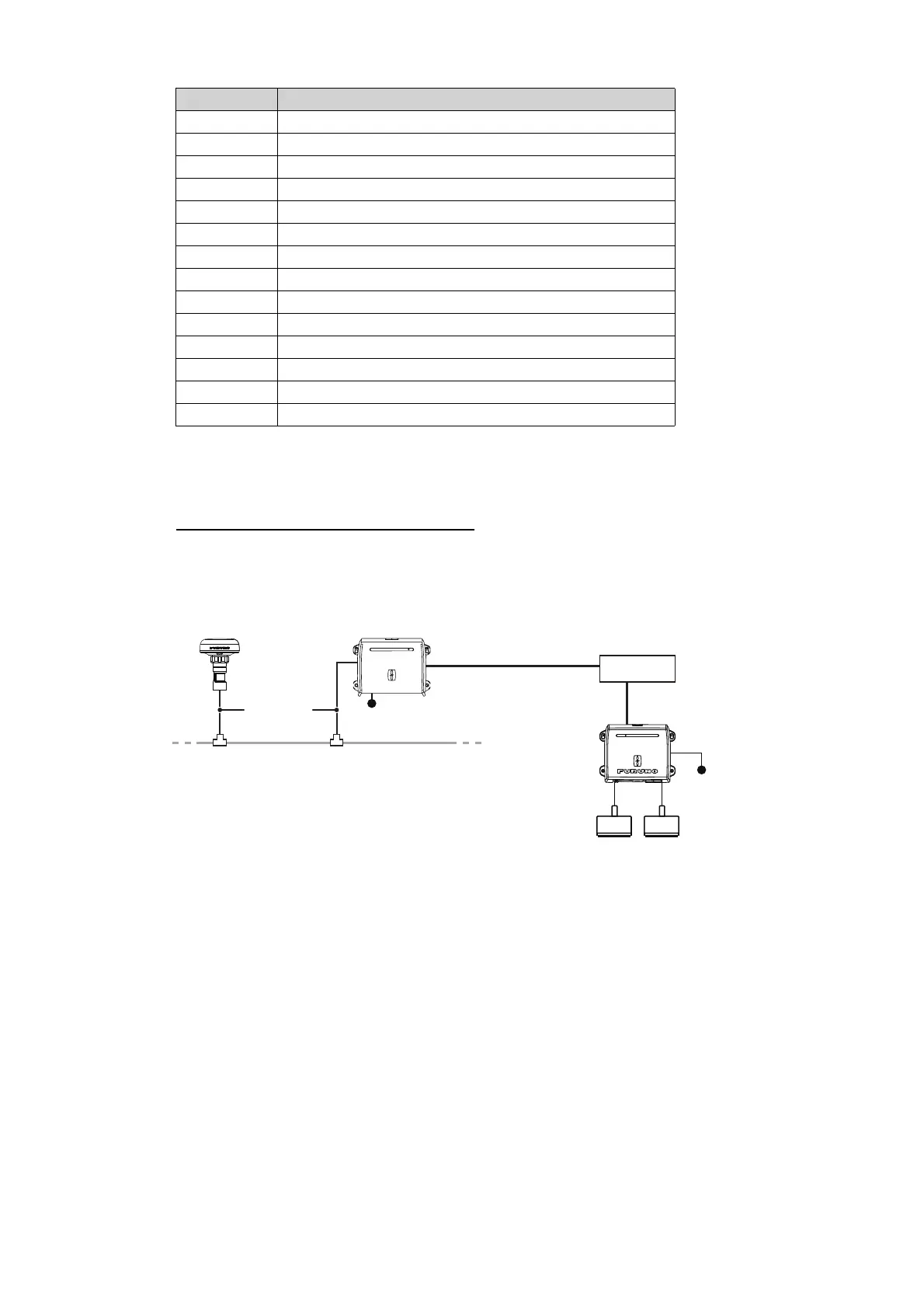

2.9 Example System Configurations
Basic plotter/fish finder installation
The FURUNO GP-330B is connected to the NMEA 2000 backbone cable. The DFF3-
UHD network fish finder is connected to the LAN port of the TZTBB using the standard
supply cable MOD-WPAS0001-030+(3 m) and a junction box TL-CAT-012.
GGA Global positioning system fix data
GLL Geographic position (Latitude/Longitude)
GNS GNSS fix data
GSA Overall satellite data
GSV Detailed satellite data
RMB Recommended navigation data for GPS
RMC Recommended minimum data for GPS
RTE Route message
TLL Target Latitude/Longitude
TTM Tracked Target Message
VTG Vector track and Speed Over the Ground (SOG)
WPL Waypoint Location information
XTE Measured cross-track error
ZDA Date and time
Sentence Description
12/24
VDC
Transducer
High freq.
Low freq.
Network Fish Finder
DFF3
GPS RECEIVER
GP-330B
NMEA 2000
drop cable
LAN cable
MOD-WPAS0001-030+, 3 m
Processor Unit
MPU-004
LAN cable
MOD-Z072
NMEA 2000 backbone
Joint Box
TL-CAT-012
12 to 24
VDC
To Next Page
