Fusion MS-AM402 User Manual

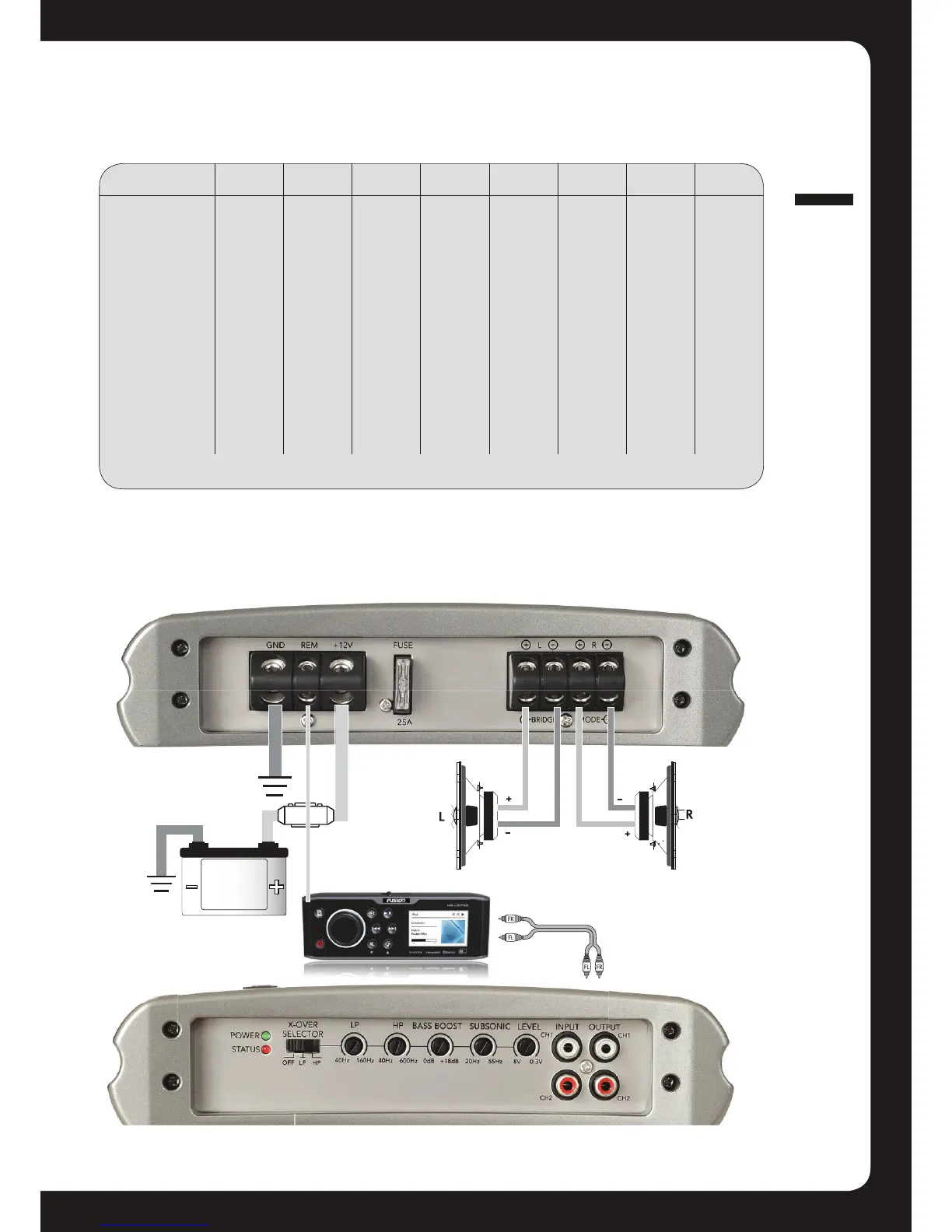

Two Channel Installation
Power Cable Calculator
Total Amperage
0-4ft 4-7ft 7-10ft 10-13ft 13-16ft 16-19ft 19-22ft 22-28ft
0-20 14 12 12 10 10 8 8 8
20-35 12 10 8 8 6 6 6 4
35-50 10 8 8 6 4 4 4 4
50-65 8 8 6 4 4 4 4 2
65-85 6 6 4 4 2 2 2 0
85-105 6 6 4 2 2 2 2 0
105-125 4 4 4 2 0 0 0 0
125-150 2 2 2 0 0 0 0 0
The above chart shows cable gauges to be used, if no less than a 0.5 volt drop is acceptable. If aluminium wire or tinned wire is used, the gauges should be of
an even larger size to compensate. Cable gauge size calculation takes into account terminal connection resistance. 1 Metre = 3.28 Feet
