FUTABA 12K - Page 122

122
<Functions of Linkage Menu>
ŏ6HOHFWWKHIXQFWLRQQDPH
DQGUHWXUQWRWKH/LQNDJH
PHQXE\SXVKLQJWKH RTN
EXWWRQRUSXVKLQJWKH
HOME/EXITEXWWRQ
<Push Dial>
RETURN
SENSOR
9DULRXVWHOHPHWU\VHQVRUVVHWWLQJ

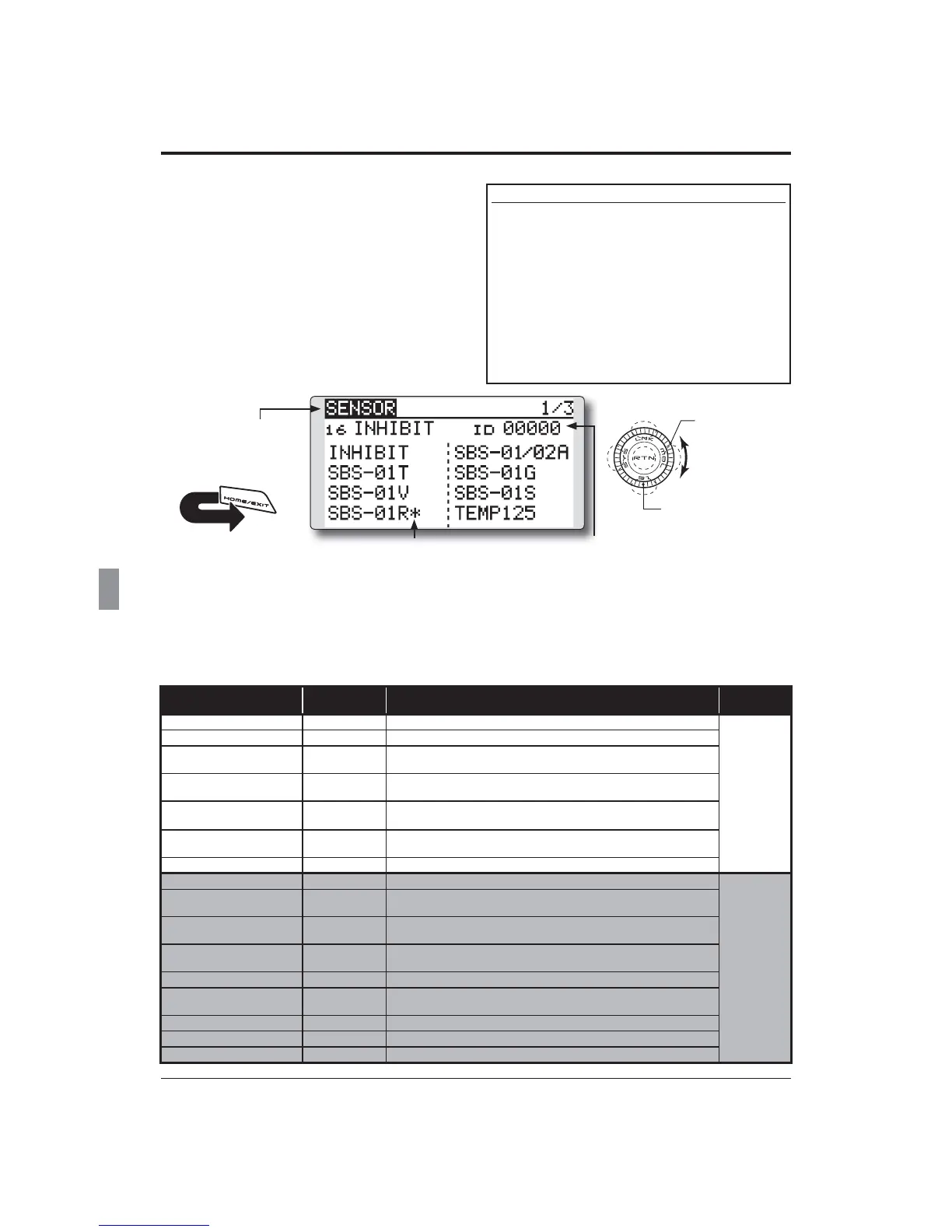

This screen registers the telemetry sensors used
with the transmitter. When only one of a certain
type of sensor is used, this setting is unnecessary
and the sensor can be used by simply connecting it
to the S.BUS2 port of the transmitter.
When using 2 or more of the same kind of
sensor, they must be registered here.
ŏ6HOHFW>6(1625@LQWKH/LQNDJHPHQXDQG
DFFHVVWKHVHWXSVFUHHQVKRZQEHORZE\
SXVKLQJWKH571EXWWRQ
ŏ6HQVRU,':KHQPXOWLSOHVHQVRUVRIWKH
VDPHW\SHDUHQRWXVHG,'LVXQQHFHVVDU\
6%650
6%652
6%65%
ŏ$VVKRZQLQWKHWDEOHEHORZDQDOWLPHWHU UHTXLUHVFRQWLJXRXVVORWV
DQGD*36VHQVRUUHTXLUHVFRQWLJXRXVVORWV,QDGGLWLRQVLQFHWKH*36
6%6**VWDUWVORWVDUHDQGVORWVDQGDUHLQKLELWHG
＜
Assignable slot
＞
*Altimeter, GPS, and other sensors that display a large amount of data require multiple slots.
*Depending on the type of sensor, the slot numbers that can be allocated may be limited.
>:KDWLVDVORW"@
Servos are classified by CH, but sensors are
classified in units called “slot”. There are slots
from No. 1 to No. 31.
Altitude sensors, GPS sensors and other data
sensor units may use multiple slots.
Using a sensor which uses two or more slots,
the required number of slots is automatically
assigned by setting up a start slot.
When 2 or more of the same kind of sensor are
used, the sensors themselves must allocate unused
slots and memorize that slot.
*3 slots of altitude sensor are used.
*8 slots of GPS sensor are used.
Sensor
The required
number of slots
The number which can be used as a start slot Selling area
SBS-01T/TE/TE(TEMP) 1 slot 1 〜 31
Global
SBS-01RM/RO/RB(RPM) 1 slot 1 〜 31
SBS-01V(Voltage) 2 slots
1,2,3,4,5,6,8,9,10,11,12,13,14,16,17,18,19,
20,21,22,24,25,26,27,28,29,30
SBS-01A/02A(Altitude) 3 slots
1,2,3,4,5,8,9,10,11,12,13,16,17,18,19,20,21,
24,25,26,27,28,29
SBS-01C 3 slots
1,2,3,4,5,8,9,10,11,12,13,16,17,18,19,20,21,
24,25,26,27,28,29
SBS-01S(S.BUS servo) 6 slots
1,2,8,9,10,16,17,18,
24,25,26
SBS-01G/02G(GPS) 8 slots 8,16,24
Robbe TEMP125-F1713 1 slot 1 〜 31
Europe
Robbe VARIO-F1712 2 slots
1,2,3,4,5,6,8,9,10,11,12,13,14,16,17,18,19,
20,21,22,24,25,26,27,28,29,30
Robbe VARIO-F1672 2 slots
1,2,3,4,5,6,8,9,10,11,12,13,14,16,17,18,19,
20,21,22,24,25,26,27,28,29,30
Robbe CURR-F1678 3 slots
1,2,3,4,5,8,9,10,11,12,13,16,17,18,19,20,21,
24,25,26,27,28,29
Robbe GPS-F1675 8 slots 8,16,24
Robbe True Airspeed
Sensor 450
1 slot 1 〜 31
Castle-TL0 8 slots 8,16,24
Kontronik 8 slots 8,16,24
PowerBox 16 slots 8,16
6FUROOLQJ
ŏ0RYLQJFXUVRU
ŏ6HOHFWLQJPRGH
ŏ$GMXVWLQJYDOXH
ŏ7RQH[WSDJH
