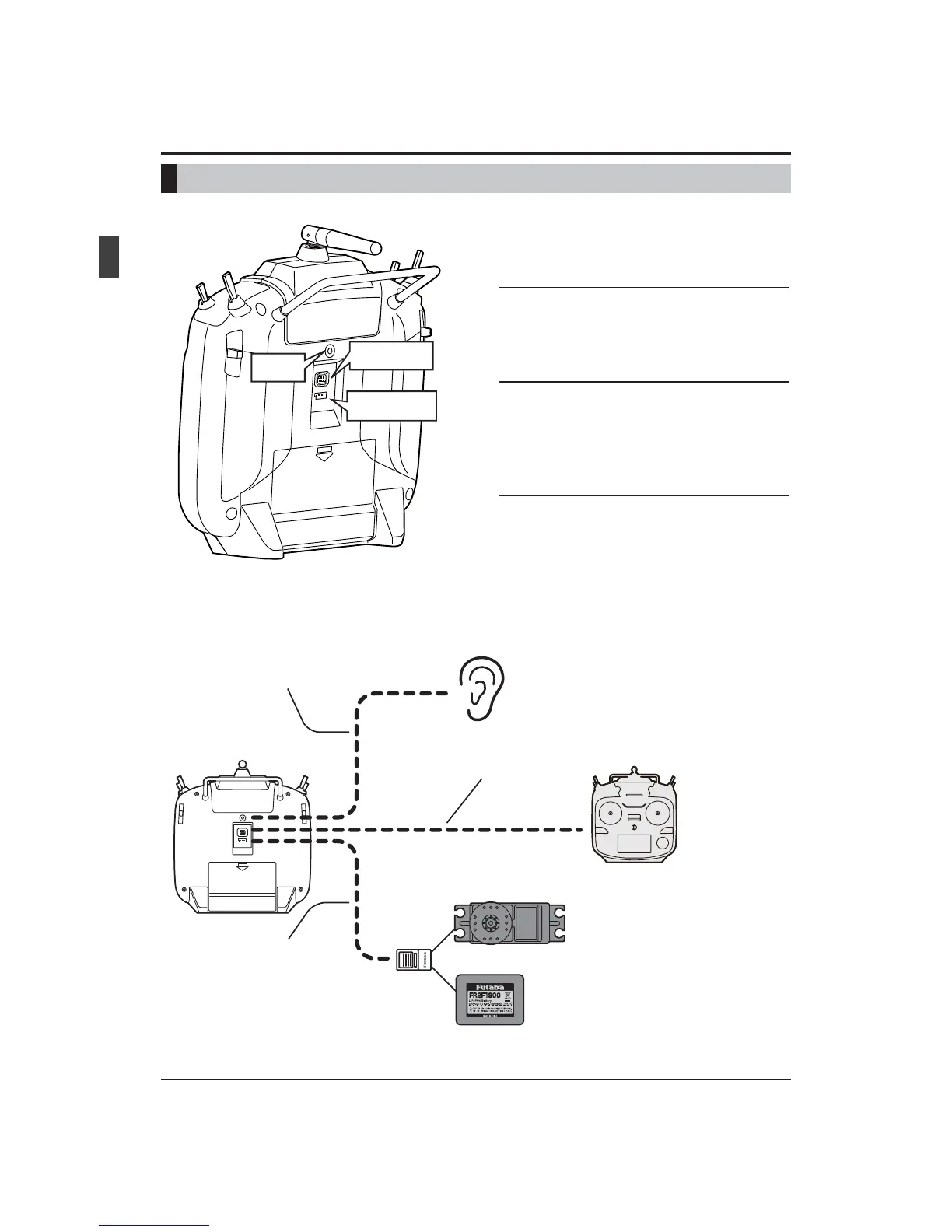

FUTABA 12K - Trainer System

28
<Before Use>
ŦƒƑƑƈƆƗƒƕŃŒŃųƏƘƊŃ
Earphone plug
The telemetry data can be listened to by plugging
in commercial 3.5mm earphones. (See the
telemetry item for the detailed setting.)
Trainer function connector
When you use the trainer function, connect the
optional trainer cable between the transmitters
for teacher and student.
*You can set the trainer function on the Trainer Function
screen.
S.BUS connector (S.I/F)
When setting an S.BUS servo and telemetry
sensor, connect them both here.
(Supply power by 3-way hub or 2-way cord.)
Trainer function
connector
S.BUS
connector (S.I/F)
Earphone
plug
Earphone cable
Trainer cable
3-way hub or
2-way cord
Telemetrydataisheard
S.BUSservosetting
Trainersystem
