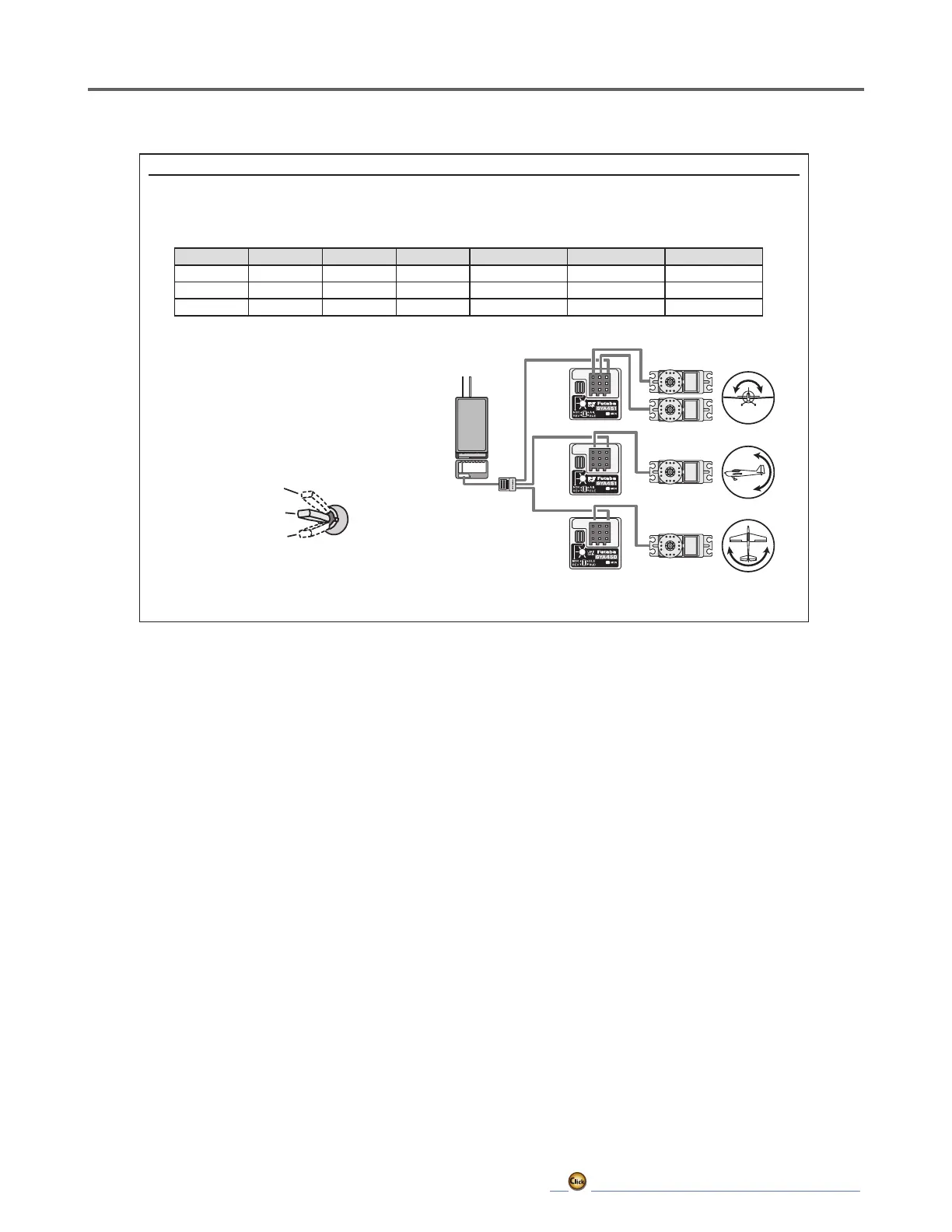

(Example)SettingthreeaxisusingaGYA450andGYA451(2)
● Wing type: Aileron 2 servos mounted fuselage selected
● Set
5CH→Gyro
(GYA451AIL),
7CH →Gyro2
(GYA451ELE),
8CH →Gyro3
(GYA450RUD),
Control and Trim →"--"
: at
the Function menu of the Linkage menu.
● Gyro setting of the Model menu.
*Set so that Rate 1 is turned on at the back position of switch E
and Rate 3 is turned ON at the front position. Since switch E is
turned OFF at the center, Rate 2 remains [INH].
Rudder servo
Elevator servo
Aileron servo
S.BUS2 port
S.BUS Receiver
GYA451
GYA451
GYA450
GAIN 0％
AVCS
NORMAL
When AVCS is used we
recommend that the
sensitivity CH be set to
the 3-position.
RateACTTypeSwitchGyroGyro２Gyro ３
1OFF/ONGYSEAVCS : 60%AVCS : 60%AVCS : 60%
2INH
3ON/OFFGYSENormal : 60%Normal : 60%Normal : 60%
