Tap the values you
wish to adjust and
value input buttons
will appear on-screen.
Travel rateLimit point
Next page
Ch7-16
Left / TopRight / Bottom
30～
140%
30～
140%
Indicates the current
direction of the stick, etc.

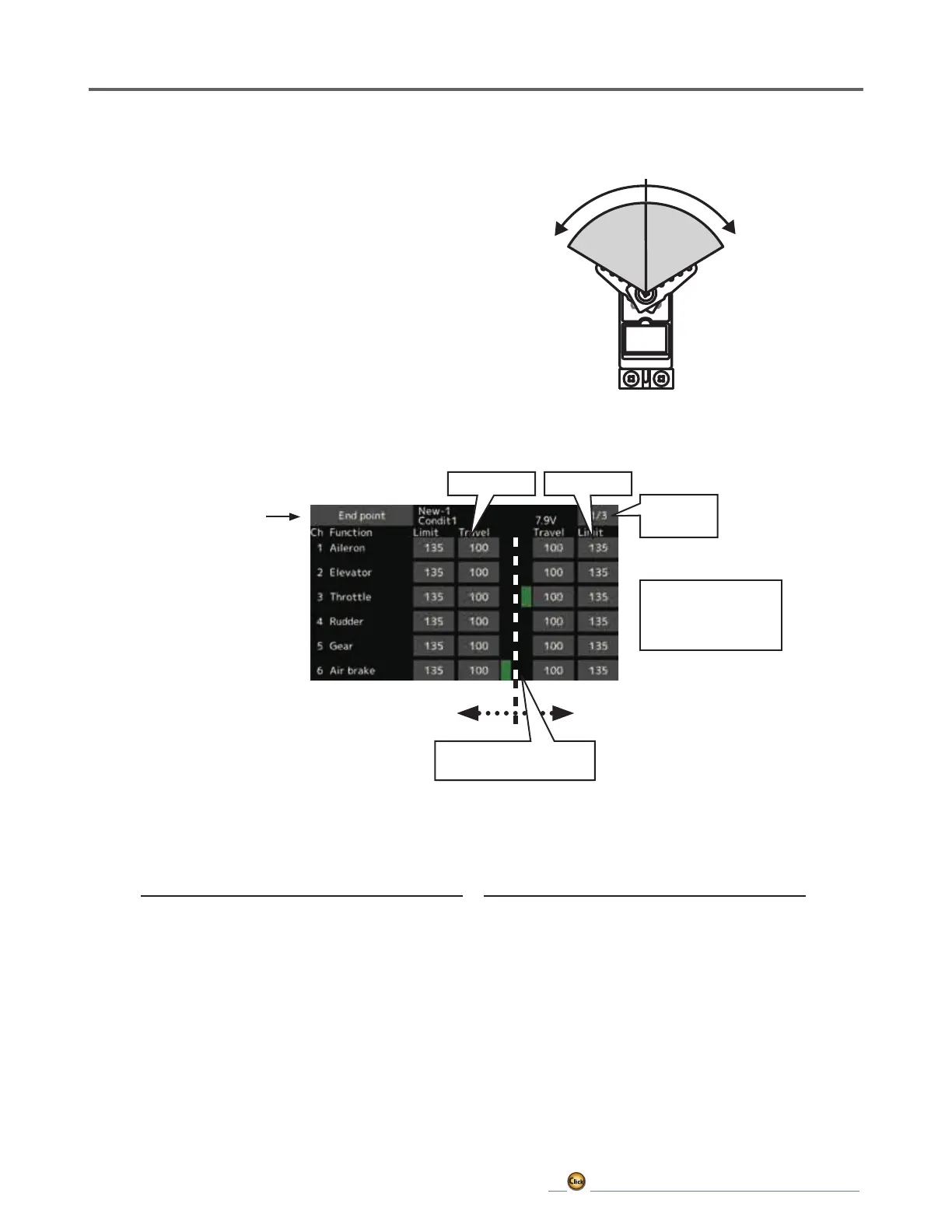

● Tap the [End point] button in the
Linkage menu to call the setup
screen shown below.
End point
Sets the travel, limit point.
(The display screen is an example. The screen depends on the model type.)
The End point function adjusts the left and right
servo throws, generates dierential throws, and will
correct improper linkage settings.
The travel rate (normal full stick movement at high
rates) can be varied from 30% to 140% in each
direction on channels 1 to 16. Also, the limit point
(how far the servo travels when a mix is involved)
where servo throw stops may be varied from 0% to
155%.
Servo travel adjustment
1. Tap the travel button of the channel you
want to set. Value input buttons appear on
the screen.
2. Use these buttons to adjust the rate.
●Initial value: 100%
●Adjustment range: 30%~140%
3. Repeat the procedure above for each rate.
Limit point adjustment
1. Tap the limit button of the channel you want
to set.
2. Use the value input buttons to adjust the limit
point.
●Initial value: 135%
●Adjustment range: 0%~155%
3. Repeat this procedure for each limit point.
●Return to
Linkage menu
