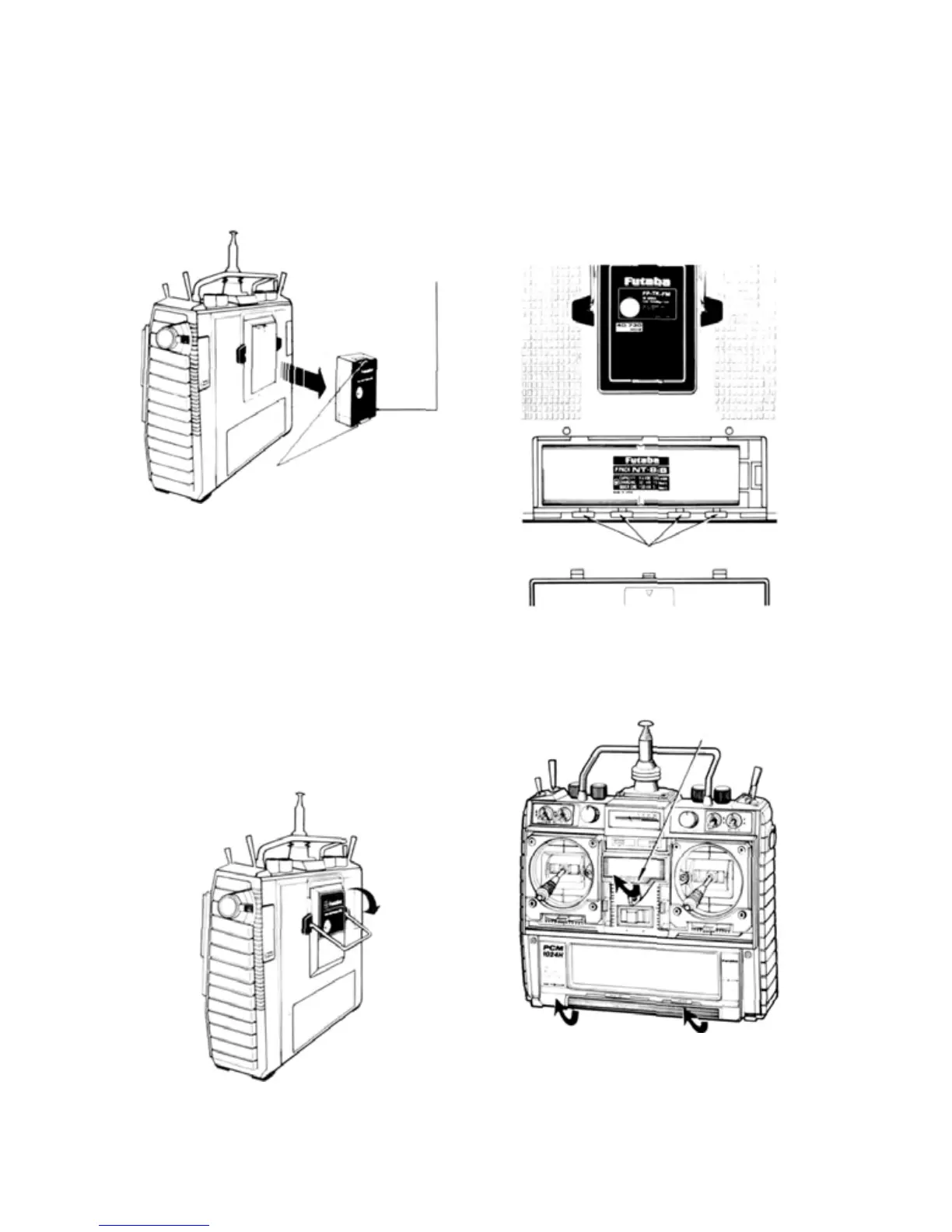

Transmitter RF Module
Transmitter crystal.
To
switch a frequency in
the same band, change
this crystal.
72MHz Band
53MHz Band
50MHz Band
To remove the module, pull
the module outward while
pushing tabs toward the
center.
Transmitter Battery Pack Replacement
and Spare Crystal Holder
Remove
the
battery
box
cover.
Lift
out
the
Nicd battery pack and disconnect the con-
nector.
Spare crystal holders
A temperature
rise in the RF module during
use is normal.
NOTE: Be careful not to drop the Nicd battery
pack.
Opening Trimmer Panel and Key Cover
Mini Stand
Use this fold-out Mini Stand as shown when
laying the transmitter down. This makes
operation easier and protects the transmitter
and module.
NOTE: Flip up at both sides with your
fingers. Do not try to open the
panel at the center. The cover may
be damaged.
Flip up with the tab
[8]
