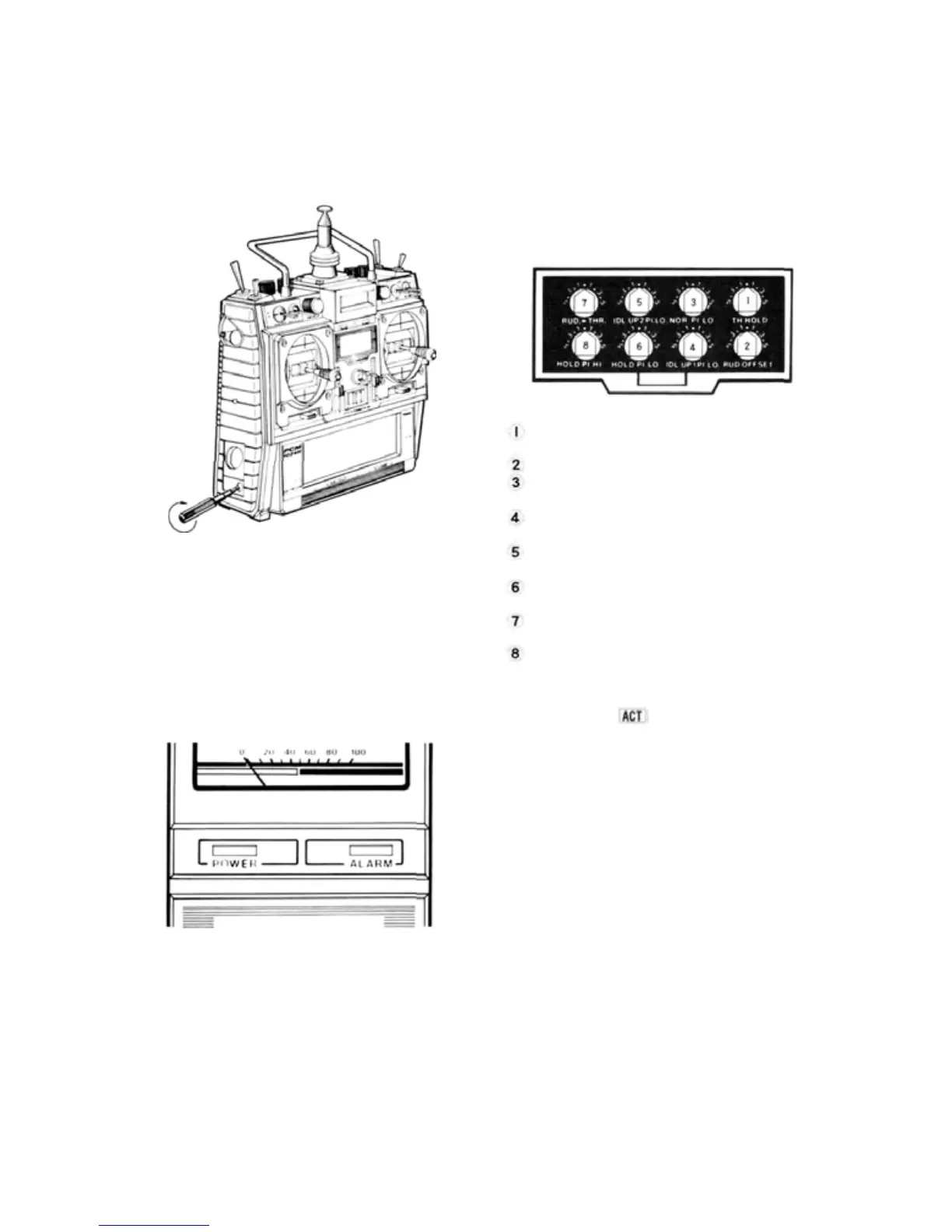

Screen contrast adjustment
Adjust the screen contrast with the special
screwdriver provided. The contrast increases
when the adjusting screw is turned clock-
wise.
Functions of Sub-Trimmers
Sub-trimmers are located on the front panel to
allow convenient trimming of programmed set-
tings on the field or during flight. Master the
computer functions before using them.
T
H. HOLD Throttle hold (TH. servo)
position adjustment
RUD.OFFSET Rudder offset adjustment
NOR.PI.LO
Normal pitch low side ad-
justment
IDL.UP1PI.LO Idle-up 1 low pitch adjust-
ment
IDL.UP2PI.LO Idle-up 2 low pitch adjust-
ment
HOLD Pl.LO.
Hold pitch low side adjust-
ment
RUD. -> THR. Rudder -> throttle mixing
adjustment
HOLD.PI.HI. Hold pitch high side adjust-
ment
Monitor Lamps Sub-trimmers do not operate unless the pertinent
function is set to
The POWER Lamp lights when the transmit-
ter power is turned ON.
The ALARM LED Lamp at the right:
• Blinks off once per
minute during Fail
Safe data transmission.
• Blinks on and off when an activated mix-
ing switch is ON (T. Hold, Idle-up, Invert)
• Lights steadily at all other times.
[9]
