FUTABA R7108SB - Elevator → Camber

131
Elevator
→
Camber
Elevator
→
Camber
Elevator
→
Camber
Elevator → Camber
[Corresponding model type]: Airplane/glider, 2 ailerons or more
This function is used when you want to mix the
camber aps with elevator operation. When used,
the aps are lowered by up elevator, and lift can
be increased.
Note: Tailless wing elevator can be operated
when this mix is activated.
● A mixing curve can be set.
● Mixing during ight can be turned ON/OFF by
setting a switch. (Always ON at [--] setting)
● The mixing rate can be ne-tuned by setting a VR.
Setting method
● Tap [INH].
(ON is displayed.)
● When setting a switch, tap the [--] item of
the switch and tap the screen to call the
selection screen, and then select the switch
and set its ON direction. (Always ON at "--"
setting)
(For a description of the switch selection
method, see the description at the back of
this manual.)
● When setting a VR, tap the Fine tuning
"--" item and tap the screen to call the
selection screen, and then select the VR. The
adjustment rate can be set.
The VR operation mode can also be
selected.
● A mixing curve can also be set.
(For a description of the curve setting
method, see the description at the back of
this manual.)

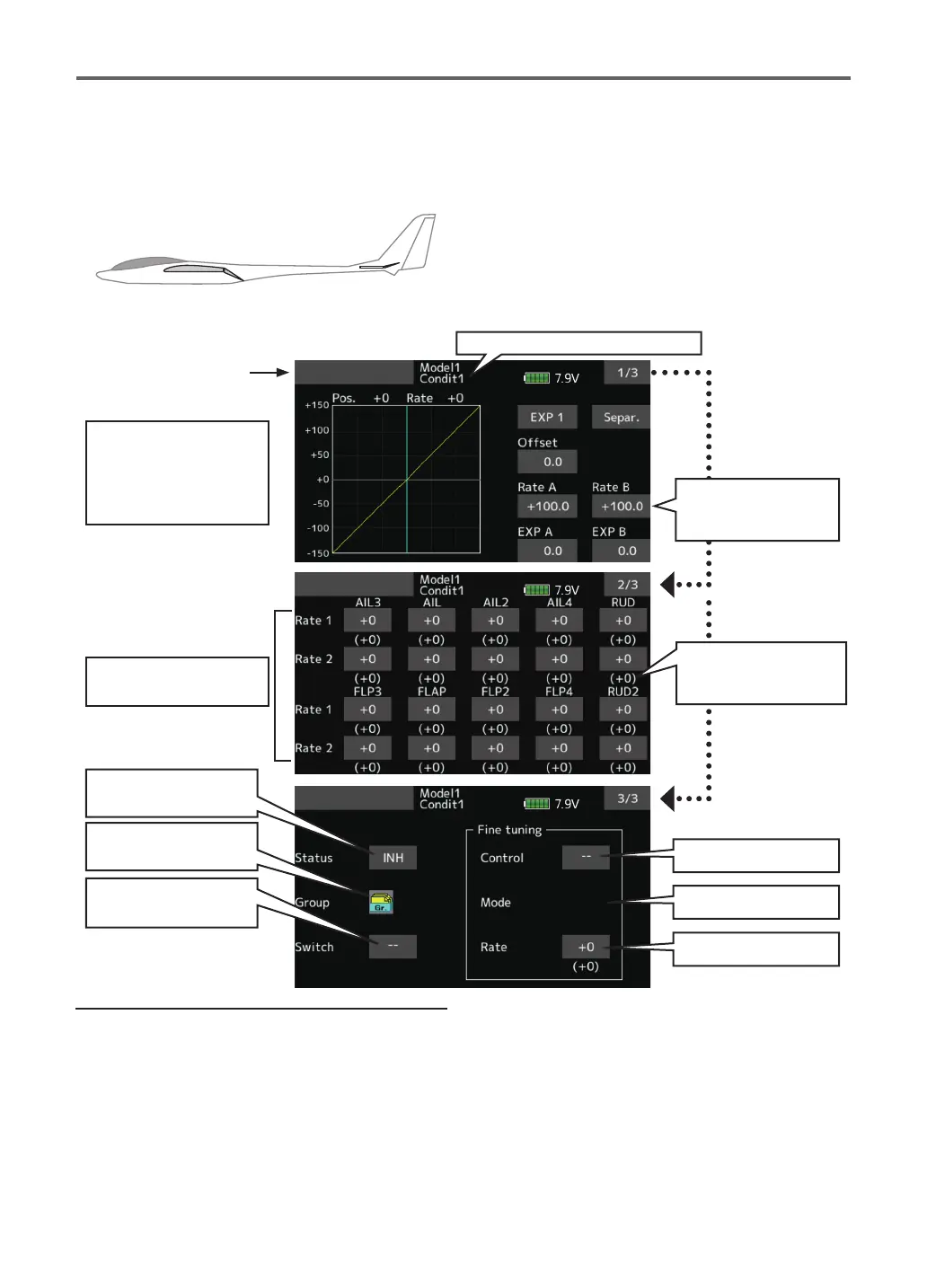

● Select [Elevator→Camber] at the model
menu and call the setup screen shown
below.
Currently selected condition name
● Mixing curve setting
(For a description of the
setting method, see the
description at the back
of this manual.)
Ailerons and aps rate
adjustment
Overall adjustment by
Rate A and Rate B.
Condition group/single
mode selection (Gr. /Sngl)
The ON/OFF switch of
mixing is chosen.
Fine tuning VR setting
Operation mode
Adjustment rate
Activate the function by
tapping the [INH].
●Return to Model menu
The value inside the
parentheses shows the
current rudder position.
