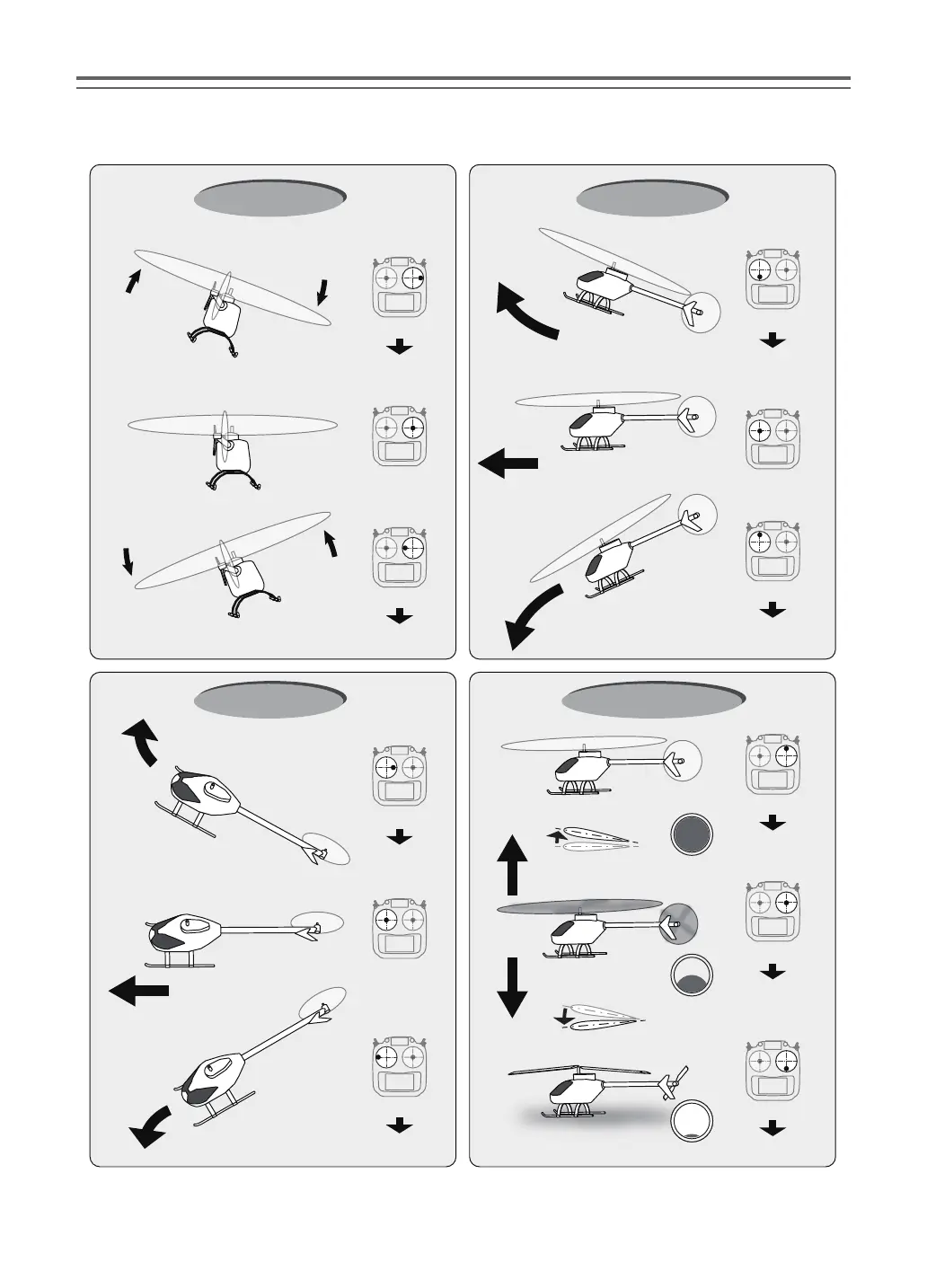

Stick control : Helicopter Example
A general model example. (There is also a different operational model.)
Right roll
Left roll
Straight
Hovering
Rise
Descent
Level flight
Level flight
Aileron stick
To the right
Neutral
Neutral
Nose Up
Nose Down
Middle
HighPitch Up
Pitch Down
Slow
Roll Axis Control
Yaw Axis Control Throttle /Pitch Control
Elevator stick
UP
(moved to the bottom)
Elevator stick
DOWN
(moved to the top)
Aileron stick
To the left
Pitch Axis Control
Rudder stick
To the right
Neutral
Rudder stick
To the left
Nose Right
Nose Left
Throttle stick
MIDDLE
(neutral)
Throttle stick
HIGHT
(moved to the top)
Throttle stick
SLOW
(moved to the bottom)
*Example Stick Mode2
