FUTABA T14SG Software Instructions

1M23N27924

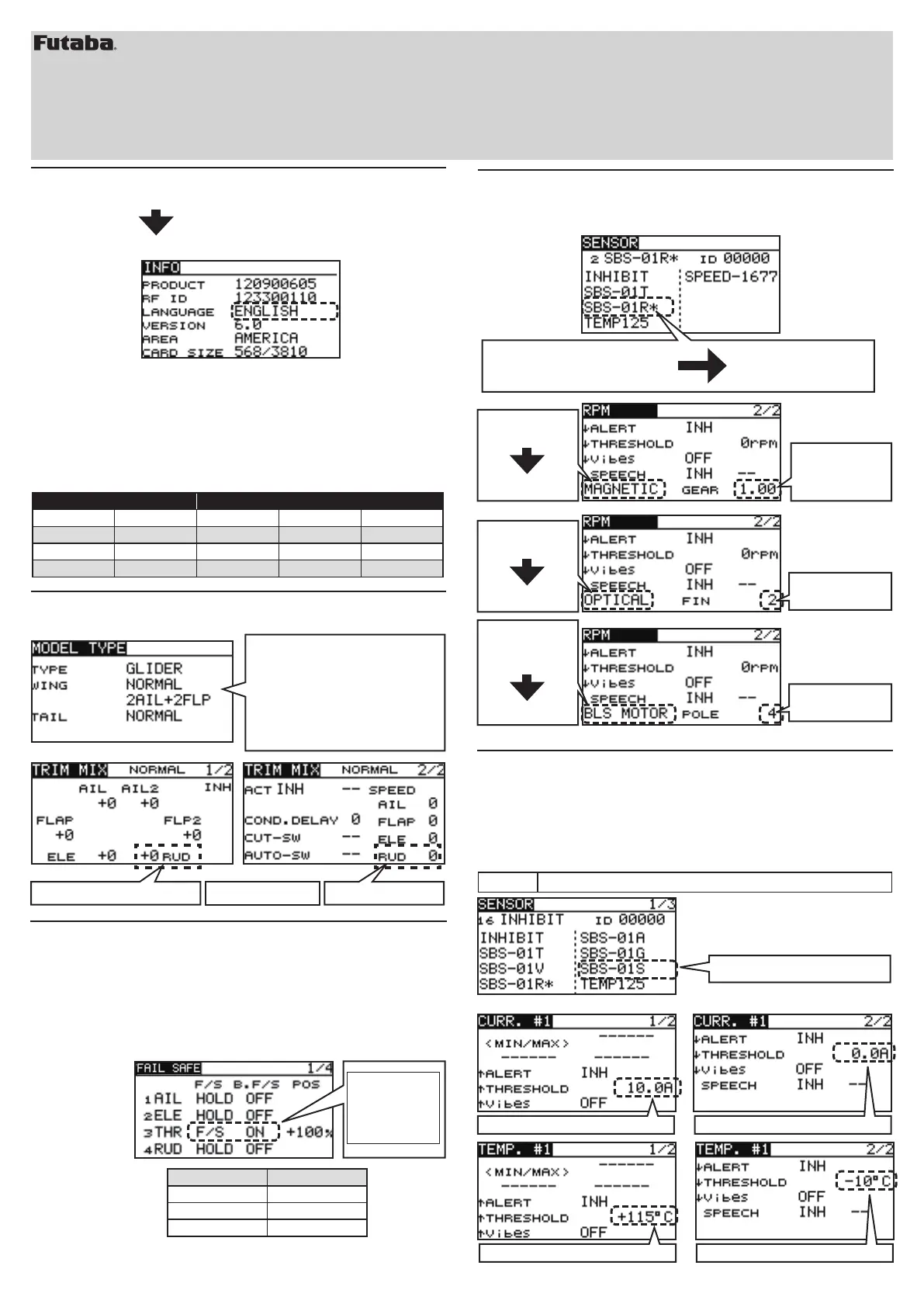

T14SG/FX-22 Software Update Changes
(Version 6.x)
This software update modies features found on the 14SG/FX-22. If you have questions about these updated directions, please consult your
instruction manual or futaba-rc.com for further details. Refer to the original manual where applicable but replace the steps indicated below with
these instructions.
1.【All Model Types】 LANGUAGE Change
T14SG/FX-22 had 9 languages before.
That was concentrated in 3 languages. (Refer to a Language table)
Language table Choose from these les.
2.
【Glider: Normal Wing Normal Tail 】 Trim Mix
The "RUD" is added to trim mix function.
*Telemetry speech is in English or Japanese.
*Telemetry speech is answering to after Ver 2.
*The telemetry speech and the version of installed speech data can be
conrmed on the "TELEM.SET." screen.
*After a up dated, there is a possibility that a language changes.
Readjust a language in that case.
*It was corrected that before was "HOLD" display (Actual condition is F/S).
3.
【
S-FHSS
】
Fail-safe function
When fail-safe setting makes the battery fail-safe "ON" at "HOLD"
in S-FHSS, fail-safe setting will be "F/S".
But even if the battery fail-safe are changed to "OFF", fail-safe
setting doesn't change with a condition of "F/S".
*F/S setting is HOLD, and the combination by which B/F/S setting is on is not.
When the battery
fail-safe (B.F/S) are
made "ON", fail-
safe (F/S) setting
will be "F/S".
Combination Table
F/S B.F/S
HOLD OFF
F/S OFF
F/S ON
Setting range ： -250% ～ +250% Setting range ： 0 ～ 27
"RUD" is added
WING TYPE :
2AIL ，2AIL+1FLP，
2AIL+2FLP，2AIL+4FLP，
4AIL+2FLP
TAIL TYPE :
NORM
Magnetic RPM sennsor『SBS-01RO』
Optical RPM sennsor『SBS-01RM』
Brushless motor sennsor『SBS-01RB』
Gear ratio
Setting range ：
1.00 ～ 99.00
Number of blades
( Propeller ).
Number of poles
( Brushless motor ).
SBS-01RM
(magnetic sennsor)
SBS-01RO
(optical sennsor)
SBS-01RB
(brushless motor
sennsor)
MAGNETIC
OPTICAL
BLS MOTOR
4.
【All Model Types】
SBS-01RB function
Compatible with the brushless motor sennsor SBS-01RB. The name
was changed to SBS-01R* from SBS-01RMO.
The SBS-01R* is selectable.
Start Slot
1, 2, 8, 9, 10, 16, 17, 18, 24, 25, 26
The SBS-01S is selectable.
5.
【All Model Types】
SBS-01S function
Compatible with the SBS-01S
.
The SBS-01S can monitor and
display the in-flight current, operating angle, and internal
temperature of up to two S.BUS2 servos. This sensor uses 6 slots.
Please read the SBS-01S sensor instruction manual for more
information.
【Setting range】 ↓ THRESHOLD ～ +115℃
【Setting range】 -10℃～↑ THRESHOLD
【Setting range】 ↓ THRESHOLD ～ 10.0A
【Setting range】 0.0A ～↑ THRESHOLD
- 1 -
Version No. Selectable language
Ver.6.0 (no surx) English Japanese German
Ver.6.0A English Dutch French
Ver.6.0B English Spanish Czech
Ver.6.0C English Russian Italian

FUTABA T14SG Specifications

General

Channels	14
Frequency	2.4GHz
Telemetry	Yes
Model Memory	30
Modulation	FASSTest, FASST, S-FHSS
Display	128 x 64 dot LCD
Battery	LiFe
