AIL 3
(Chip Aileron)
AIL 4
(Chip Aileron)
AIL1
(Main Aileron)
AIL 2
(Main Aileron)
FLP 2
(Camber Flap)
FLP 1
(Camber Flap)
ELEVATOR
ELEVATOR 2
V-TAIL
ELEVATOR
ELEVATOR 2
AILVATOR
FLP 3
(Brake Flap)
FLP 4
(Brake Flap)

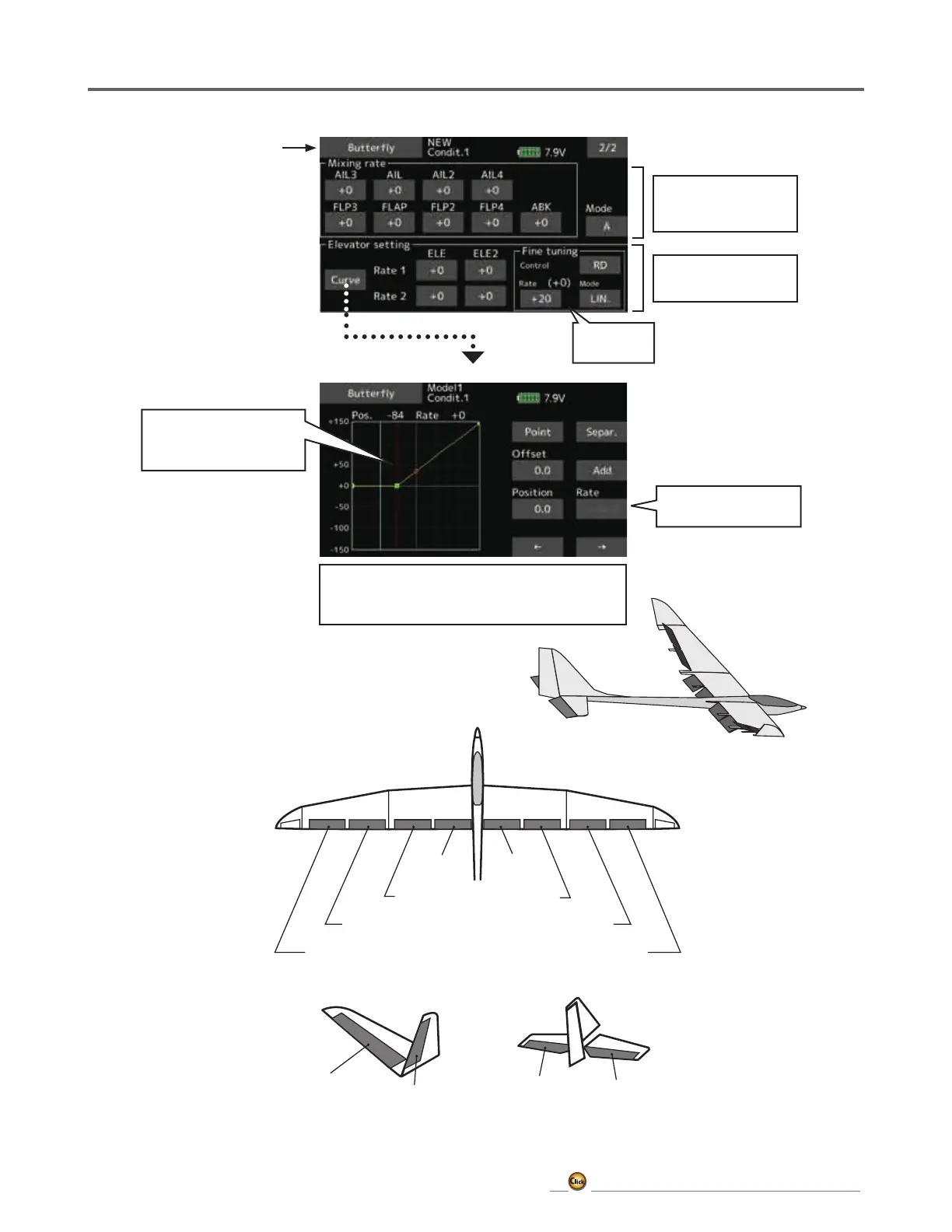

(Elevator correction rate setup screen)
Overall adjustment
by Rate A and Rate B
Mixing curve setting
*For a description of the curve setting method,
see the description at the back of this manual.
Elevator rate
adjustment
Select the Mixing Rate
AIL and FLP box. Adjust
the mixing rates.
●Return to Model menu
The o󱐯set position is
indicated by a red dotted
line by an elevator curve.
(To elevator curve setup screen)
Fine tuning
setting
*In case of tailless
wing not display.
