S.BUS/S.BUS2 device setting
S.BUS/S.BUS2 servos or a telemetry sensor can be connected directly to the T16IZ. Channel setting and
other data can be entered for the S.BUS/S.BUS2 servos or sensors.
(S.BUS/S.BUS2 servo)
S.BUS/S.BUS2
device
S.BUS/S.BUS2
device
(Telemetry sensor)

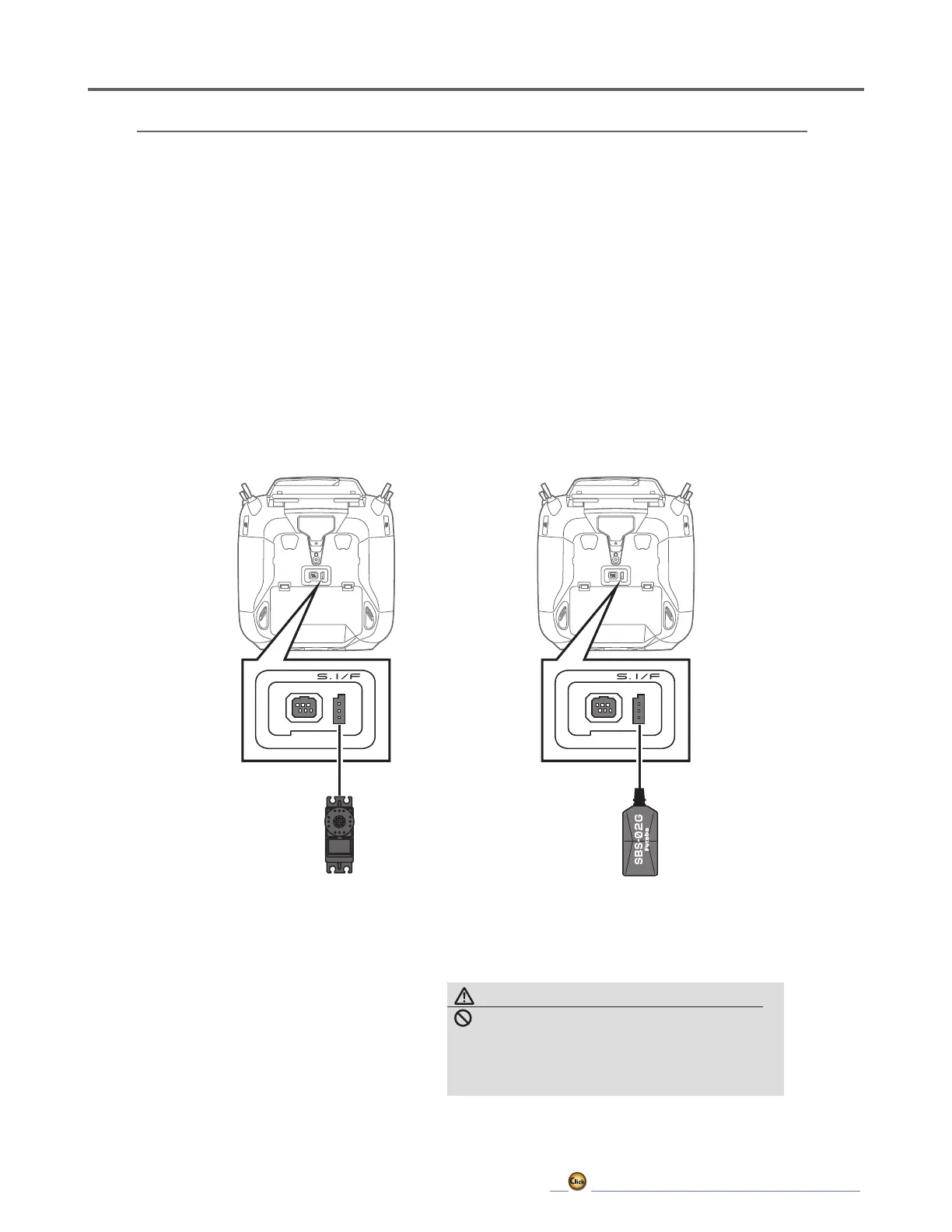

1. Connect the S.BUS device as shown in the
gure.
2. Turn on the transmitter power.
3. Call the setup screen.
Servo: System Menu
S.BUS servo
Sensor: Linkage Menu
Sensor
4. Perform setting in accordance with each
screen.
5. This sets the channel and other data for each
S.BUS servo, or telemetry device to be used
with the S.BUS device or receiver.
WARNING
Do not disconnect or turn transmitter power OFF
while S.BUS servo and telemetry sensor data is
being saved.
S.BUS servo and sensor save data will be lost,
resulting in malfunction.
