FUTABA T32MZ Manual

11
SwashBasic
SwashBasic
H-1
SwashType
ELE
PIT AIL
H3-120
ELE
PIT AIL
H3-140
ELE
PIT AIL
H3-90
ELE2
ELE
PIT AIL
H4-00
ELE2
FRONT
ELE
PIT
AIL
H4-45
ELE
PIT
AIL
H-1

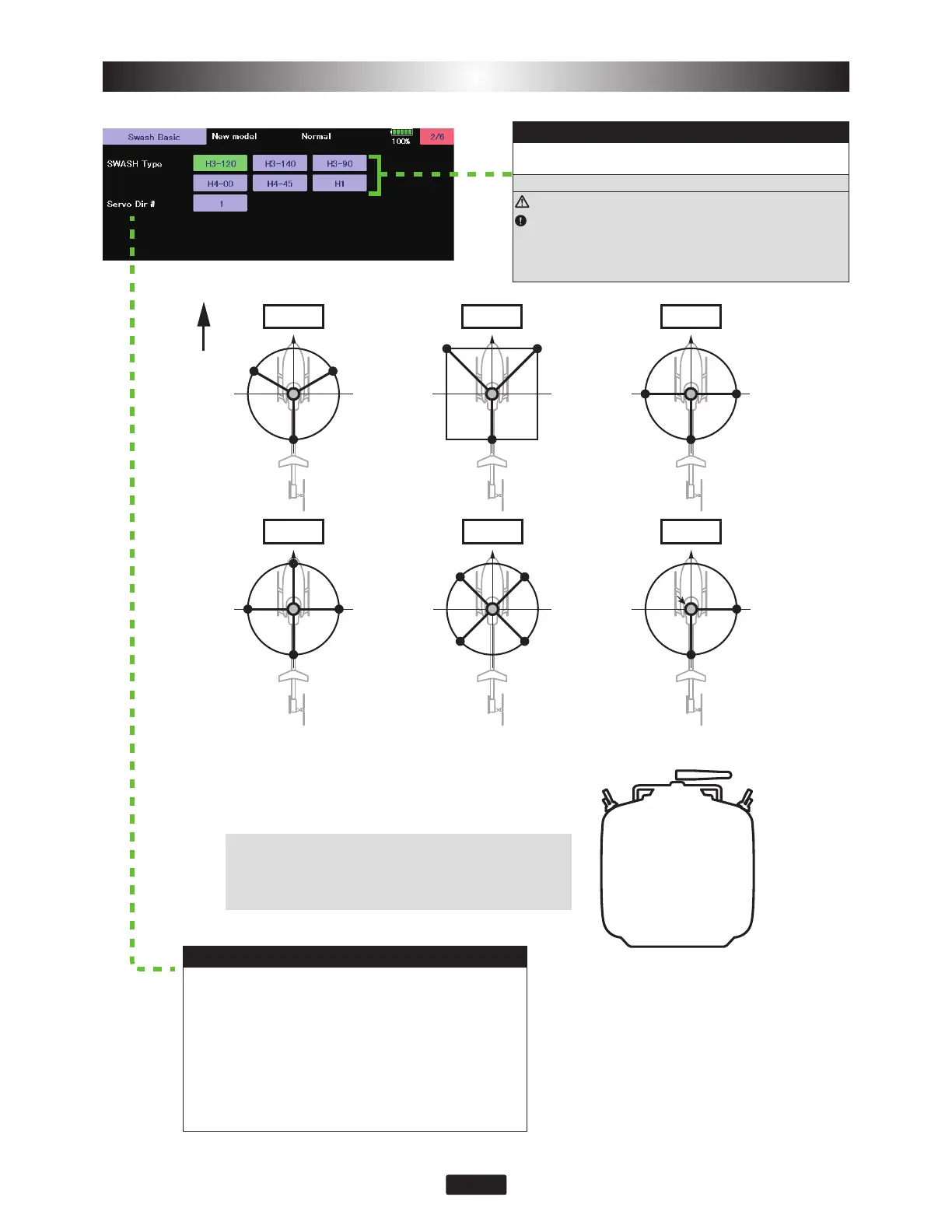

(4) SWASH Type: Swash change to plate type
Select the swash plate type. When you change the setting, other data is
initialized.
Setting:H-1  /  H3-120  /  H3-140  /  H3-90  /  H4-00  /  H4-45 Initialsetting:H3-120
WARNING
All of the swash plate parameters are reset when the swash plate
type is changed. Doing so eliminates any possible errors or mal-
functions within the system. After changing the swash plate type,
Please proceed through the entire setup process once again before
attempting to fly the model.
AIL --------------------Aileron servo
ELE ----------------- Elevator servo
PIT ---------Collective pitch servo
ELE2 ---- Second elevator servo
Your transmitter should be reset to the default settings and the swash plate
type selected with the transmitter should be set to "H-1" or single servo
mode. All CCPM mixing is set up and handled in the CGY, and the transmit-
ter functions should not be used. Before starting model set-up, be sure that
all dual rates, pitch curve, and endpoint values are set to 100/100.
(5) Servo Dir #: Servo direction #
Using different servo combinations will create the proper swash plate servo
movement in electronic CCPM models (eCCPM). In the H3-xx swash
mode, three of the swash servos directions are changed by pressing the
Servo Dir #. Choose the combination number which produces level swash
plate travel with a collective pitch input from the transmitter. There are 8
combination choices for the H3-xx swash mode. On H4-xx swash mode,
there are 16 combination choices. After selecting the combination number,
aileron, elevator, pitch, and 2nd elevator servo parameters are automati-
cally set.
Note: Occasionally the aileron or elevator function directions are reversed
even though collective pitch direction is correct. In this case, use the "SWS.
Dir parameter on the following screen (4/6) to fix this later.
