Swash plate type
Displays the swash plate type set in
"SWH. BASIC" menu.

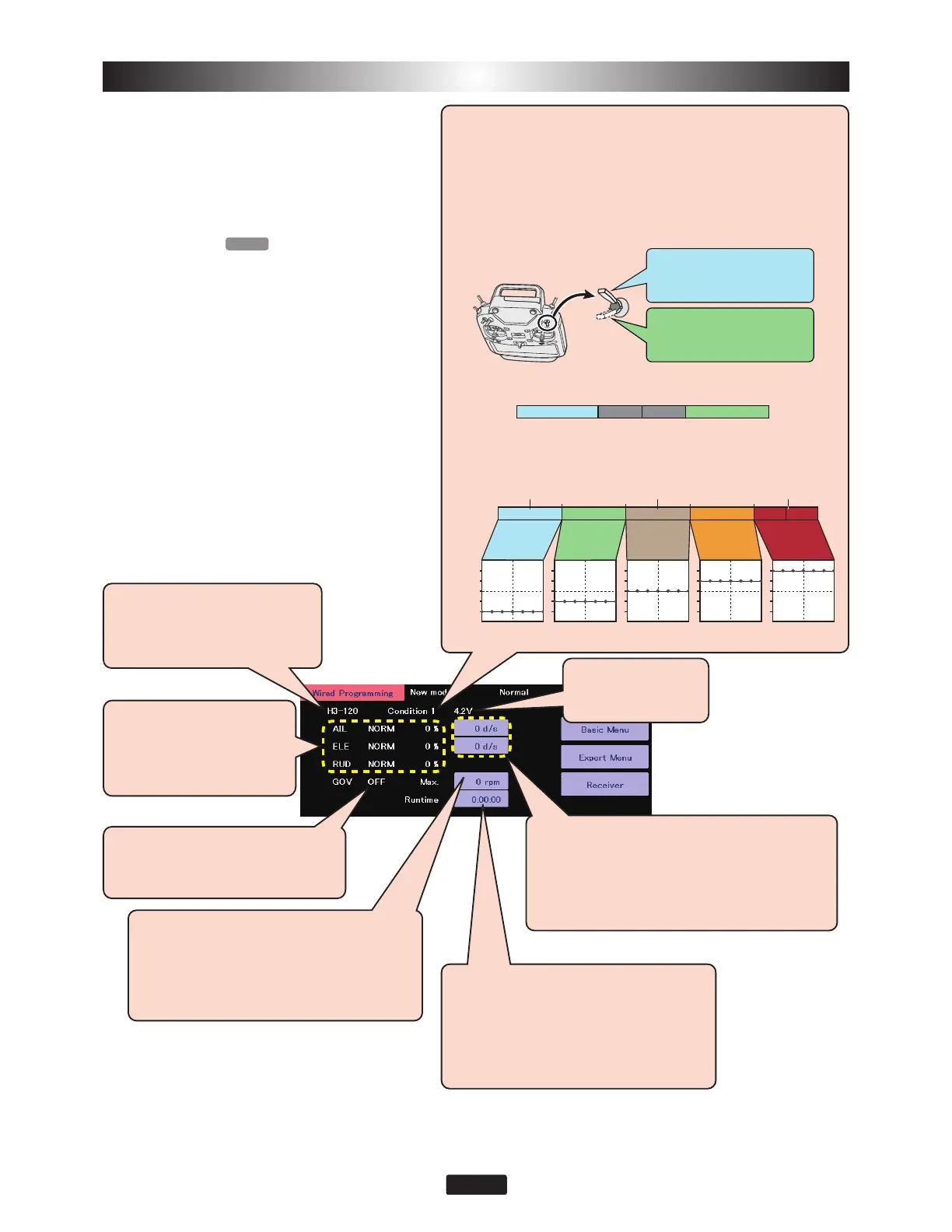

Home Screen Display
On the home screen, basic information such as swash type,
gyro operation mode, sensitivity and governor ON / OFF,
engine operating time etc, are displayed.
Forfunctionsthatcansetconditionsin
thismanual,mark
Cond
iswritten.
Condition number
With switch operation from the transmitter, several parameters can be switched by
setting up to 5 types of data. If you set the condition switch to the channel having
the AFR function of the transmitter and set the point for each flight condition with the
AFR point curve, it can also be linked with the flight condition switch.
•WheneithertheDG1orDG2switchisselected,thefollowingoptionsareavailable.
FunctionMenuofyourtransmitter(DG1).AssigningDG1toaswitchorflightmodeallowsthe
useoftwoseparatevaluesfortheconditionselectableparameters.
•Ifyousetaconditionswitchchannel,usingtheAFRfunctiononthatchannelsetaflatpoint
curveforeachflightcondition.Thenyoucanutilizeall5flightsconditions.
Set the point curve with AFR for each flight condition of the transmitter.
Governor ON / OFF
Indicates the ON / OFF switch status of the
governor function. When "ON" is displayed, the
governor function is activated.
Gyro operation mode /
Gyro gain
Displays "AVCS" or "Normal" operation
mode and gyro gain of aileron (roll),
elevator (pitch) and rudder (yaw) axis.
Roll and Elevator rate maximum display
This screen displays the maximum roll rate and maximum eleva-
tor rate recorded during flight. Data is reset when the power is
turned off. If you want to check the maximum rate, leave the pow-
er on after flight. Press and hold rate button to reset the display.
Battery voltage
Displays the voltage of the
receiver battery connected
to CGY.
RPM display
The maximum RPM of the engine or rotor head RPM mem-
orized by the governor during operation is displayed. Data
is reset when the power is turned off. If you want to check
multiple times during the flight, leave the power on after
flight. Press and hold RPM button to reset the display.
Engine running time
Displays the running time of the engine. Up to 9,999
hours are displayed.
Press and hold time button to reset the display. The
operation time is stored in memory even when the
power is turned off until it is reset.
