FUXTEC FX-RB144 - CONTROL PANEL; Display Interface; Control Buttons

- 10 -
A B C D J
E
F
4. CONTROL PANEL
4. CONTROL PANEL

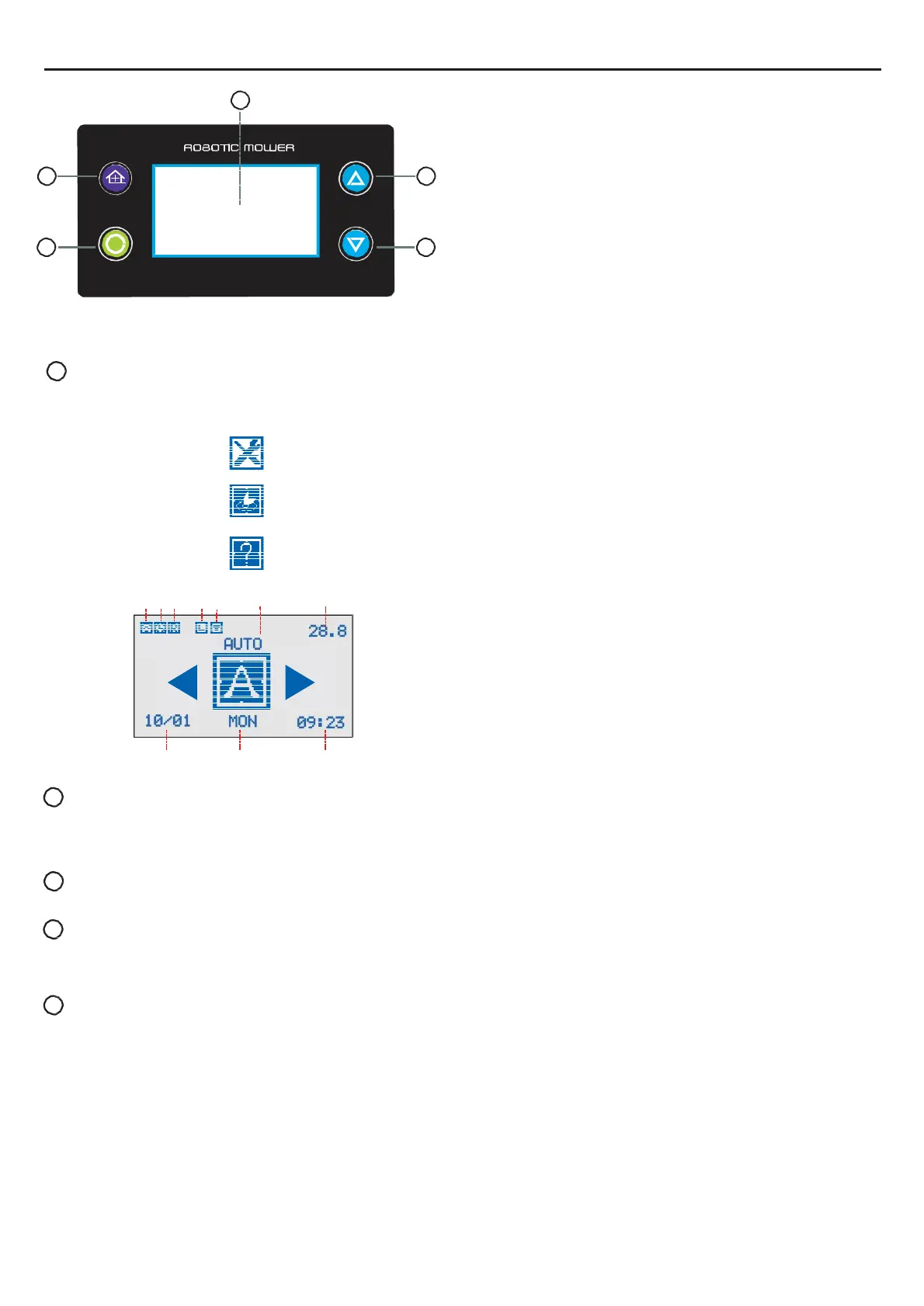

Control Panel view
Display
A. Charging station symbol
B.
Working schedule symbol
C.Rain sensor symbol
D.
Line symbol
E. Auto mode
F.Battery voltage
G.
Month / Date
H .
Week
I . Hour / Minute
J .Touch sensor
Function setting
Area setting
Inquiry
H I J
Up / + :
-select menu, go upward
-select menu, go left
-Select figure, means +
3
Enter button
-To confirm your selection or enter it.
4 Down / -
-select menu, go down
-select menu, go right
- Select figure, means -
5 Home button
Press this button when the mower is operating, it goes
home for recharge automatically.
