0MNLIBRAPROK10NPENUA 01 Pag. 17 / 57
\

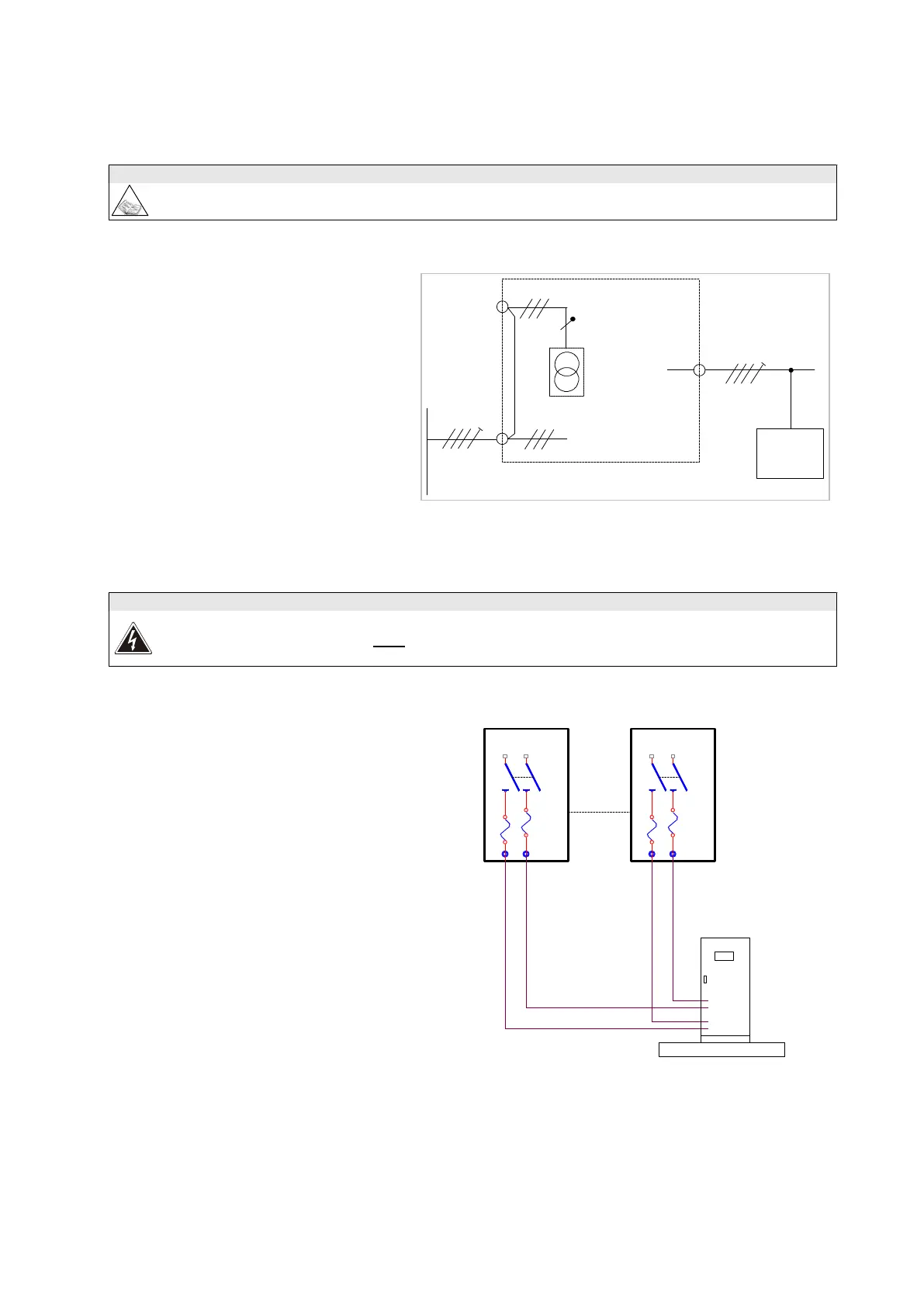

Input and output line without neutral
If the input line and the load are three-phase without neutral type (and only in this case), a kit to create
the signal neutral (optional) may be used. The kit may only be used by a specialized technician.
3.3 External Battery connections
BATTERY CABINET if present:
The battery cabinet must be provided with a fuses to be connected to the UPS.
Up to 3 battery cabinets can be connected in parallel,
in accordance with the diagram below.
MAINS LINE
UPS
LOAD
3Ph
OPTIONAL
UPS
-
Battery cabinet
+
Battery cabinet
SWBAT2
-
max 3 battery cabinet
+
SWBAT3
-
+
To Next Page
