ADJUSTING CENTER PARTING CAR DOORS
6.1 Adjusting the stop roller:
Referring to figure 5A, we recommend adjusting the driven car door so that it leads the
hoistway door by
1/4”. This will make the car door more closely match the hoistway door when fully open. Adjust the stop
roller on the drive pulley so that the closing doors will be stopped by the roller as they meet. Do not have
pressure on the meeting car doors, otherwise it will place unwanted stress on the arms.
6.2 Adjusting the release roller and clutch:
Referring to figure
5A, adjust the lock release rollers so that they will clear the clutch by about 3/16” when
the car doors are in their final closed position and the operator stop roller is against the stop plate. Adjust
the clutch cam as per figures 5B and 5C. The clutch should retract as late as possible in the closing cycle.
G.A.L. Manufacturing Corporation December, 2007
CAR DOOR
HATCH DOOR

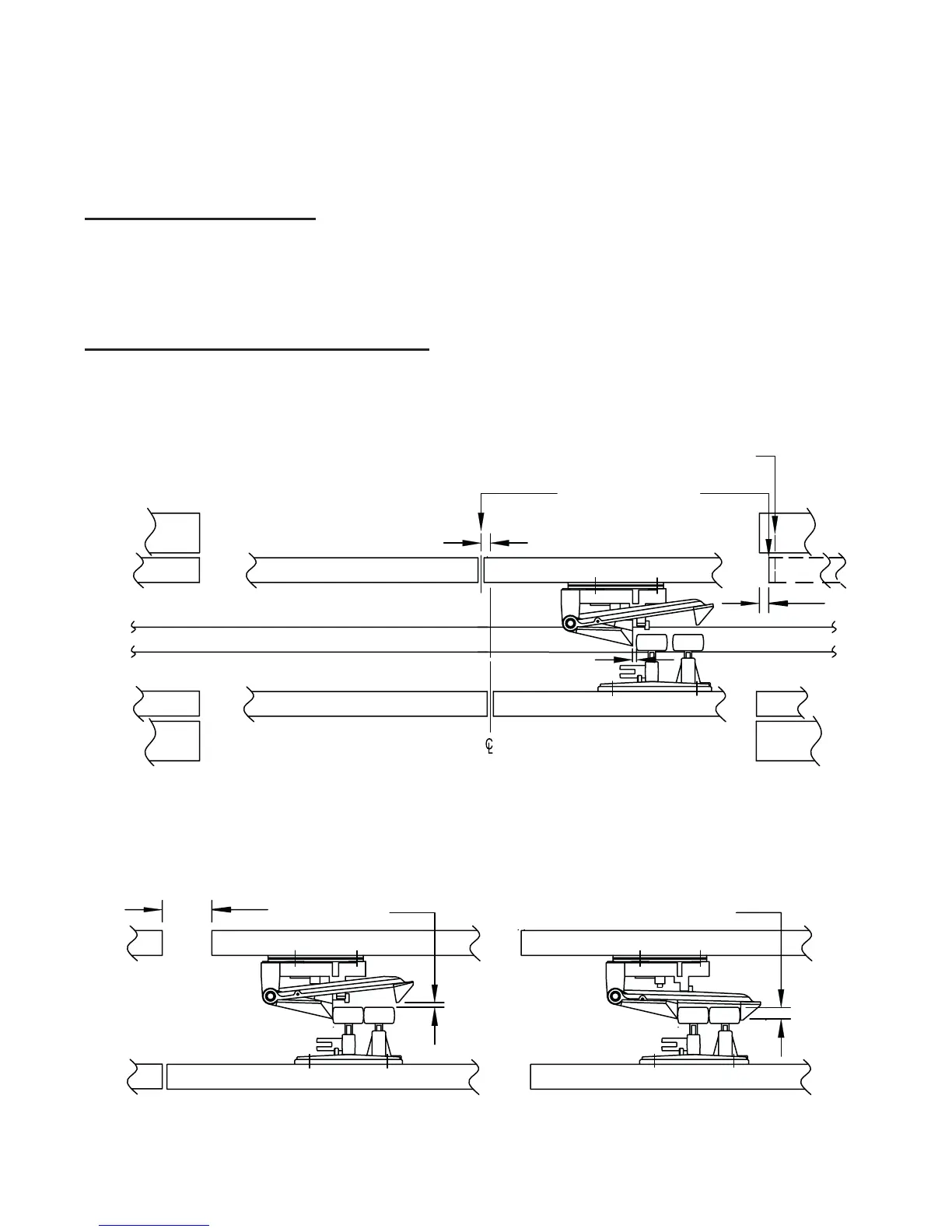

FIGURE 5A
DOORS FULLY CLOSED
FIGURE 5B
CAR DOORS 1” OPEN
FIGURE 5C
DOORS FULLY ENGAGED
ADJUST CLUTCH CAM TO RETRACT
CLUTCH REAR VANE BY 1/8” PAST
THE ROLLERS (AS SHOWN), WHEN
HATCH DOORS IS FULLY CLOSED
AND CAR DOORS ARE 1” FROM
EACH OTHER.
CORRECT POSITION WITH
CAR DOOR 1/4” OFF C
L
INCORRECT POSITION WITH
CAR DOOR ON C
L
OPENING
1/4”
1/4”
RUNNING CLEARANCE
1/2”
1/8”
1”
WITH DOORS FULLY ENGAGED
THE CLUTCH REAR VANE IS 1/2”
ON TO THE ROLLER.
3/16”
