7.10 Interfacing between G.A.L. certified light curtain and MOVFR:
A. Procedure:
To take full advantage of the MOVFR and simplify the REOPENING circuits for the Door Operators,
the REOPEN relay in the MOVFR board should be used to Reopen the doors in cases of:
• Exceeding the limit of the torque allowed.
• Exceeding the limit of the speed allowed.
• Obstructing the light curtain.
The exceeding Torque and exceeding Speed features have already been built in the MOVFR board.
Additionally, for the obstruction of the Infrared Light Curtains, the following illustration shows the
interfacing procedure of a G.A.L. Certified Infra-Red Light Curtain and the G.A.L. MOVFR board.
Followings are the G.A.L. Certified Infrared Light Curtain Detectors, in alphabetical order, that are
available from G.A.L Mfg. Corp (http://www.gal.com).
Toll Free Phone:
1-877-425-3538 (877-GAL-ELEV)
• Formula Systems
• Tri-Tronics
B. Operation:
When obstruction on the edges occurs, the reopen LED on the MOVFR will turn on and the reopen
relay will be activated. The reopen contacts will send reopen signal to the main controller and wait for
the DO (Door Open) Signal from the Main Controller to Reopen the door.
G.A.L. Manufacturing Corporation December, 2007
1
st

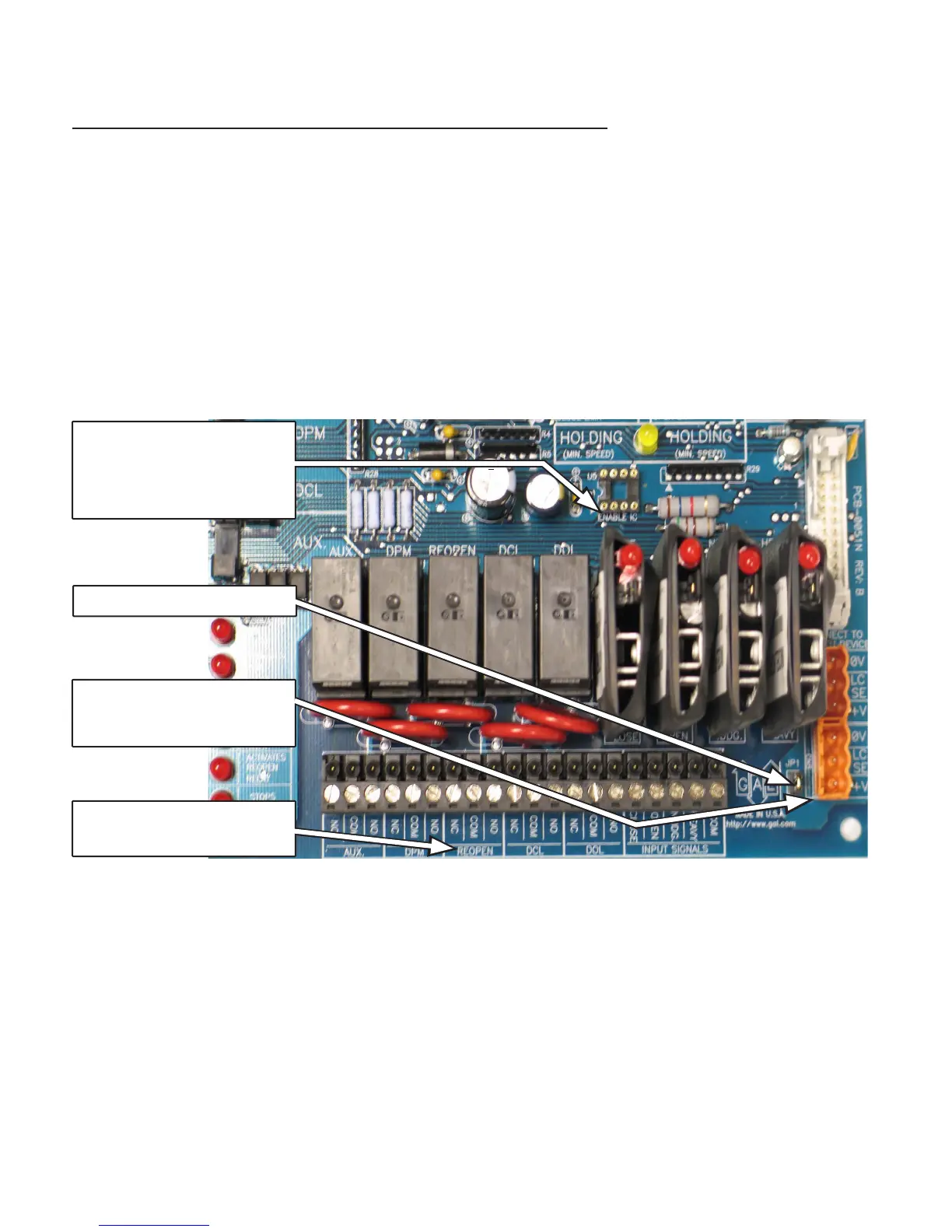

. Plug the enable chip into the
socket U5 as shown. Make sure
the RED mark is positioned in pin
1 on left as shown. Call G.A.L Mfg.
Corp. to obtain the programmable
DPPC-0001N enable chip.
2
nd
. Remove jumper JP1
4
th
. Make sure that the REOPEN
contacts of the MOVFR are
connected to the Main Controller.
3
rd
. Plug the light curtain connectors
into the mating connector CN4 & CN5.
Note: connectors CN4 & CN5 are
swappable.
