GAL MOVFR - Cam Setting Versus Distance

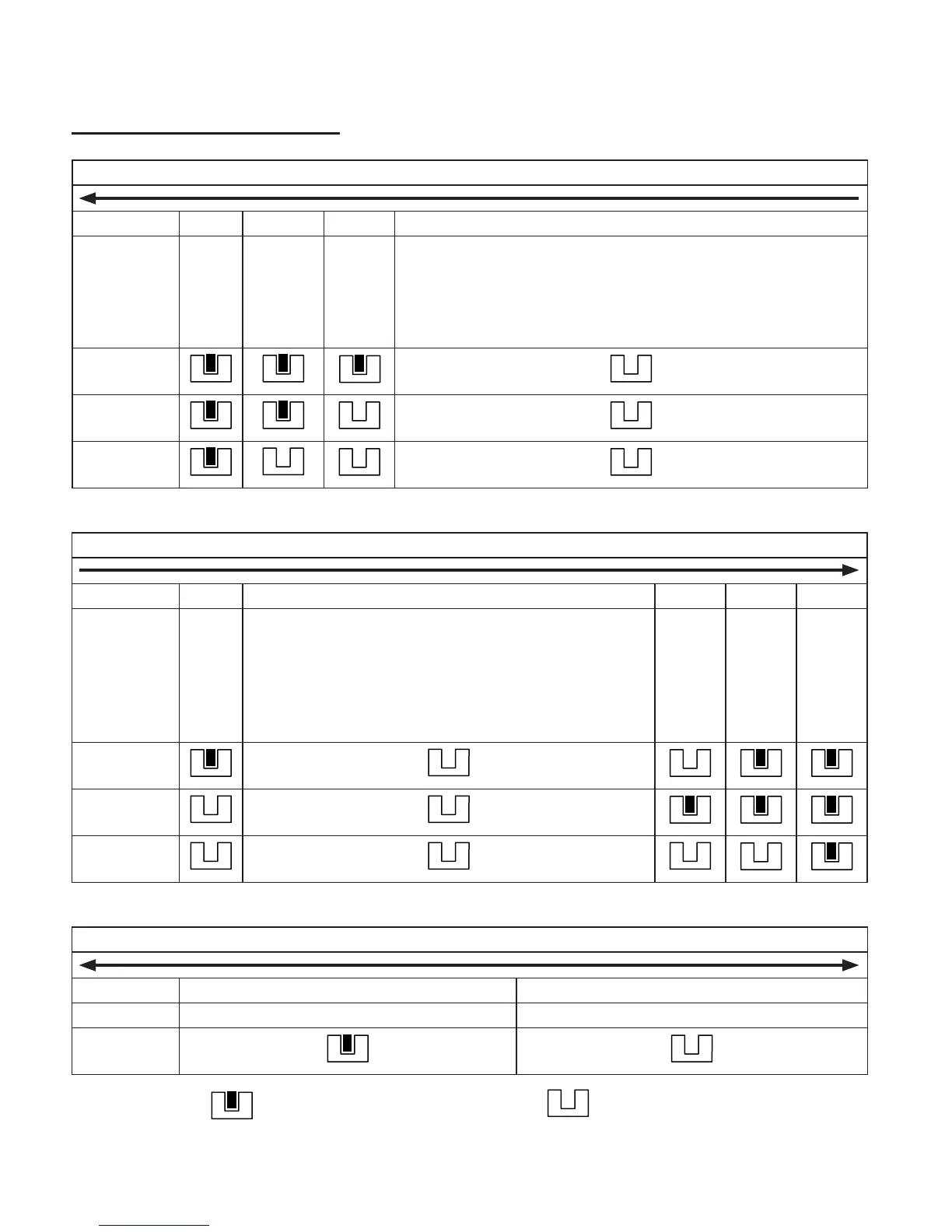

7.8 Cam setting versus Distance:
CLOSING DIRECTION
SPEED DCL DPM FSC HSC
DISTANCE
Last
1/4
inch
1/2 inch
before
Gate
Switch is
activated
Last
4
inches
Until the door reaches 4 inches from the final close
CAM 4
FSC
CAM 5
DPM
CAM 6
DCL
OPENING DIRECTION
SPEED SSO HSO MSO FSO DOL
DISTANCE
Until the
clutch
makes
up (first
1/2 inch
From the clutch made up (approx. 1/2) in to 3/4 of
the total door width
Last
1/4 of
the
total
door
width
Last 4
inches
Last
1/4
inch
CAM 1
SSO/FSO
CAM 2
MSO
CAM 3
DOL
CONVENIENT CAM
ACTION ACTIVATE AUX. RELAY DEACTIVATE AUX. RELAY
DISTANCE
Customer Setup Customer Setup
CAM 7
AUX.
= CAM BLOCKED = CAM UNBLOCKED
