There are 16 more LED lights are provided to indicate the position of the speed cams, limit cams
and modes of operation. When a cam blocks an optical sensor, the function is activated and the
corresponding LED light turns on (see Figure 7.2.B.2). The 16 LED lights are:
1. HSC: High Speed Close.
2. FSC: Final Speed Close.
3. DCL: Door Close Limit (DCL output relay is energized when the DCL LED light turns on).
4. SSO: Slow Start Open.
5. HSO: High Speed Open.
6. MSO: Medium Speed Open.
7. FSO: Final Speed Open.
Note: The combination of Cam#1(SSO/FSO) and Cam#2(MSO) produces
SSO, HSO, MSO, and FSO. See 7.7 CAM SETTINGS VS. DISTANCE for
appropriate settings.
8. DOL: Door Open Limit (DOL output relay is energized when the DOL LED light turns on).
9. HOLDING: Door is in its full open or full close position. (When the door is fully open or fully
closed, a minimal amount of power is applied to the motor to prevent drifting).
10. NUDG. Door is closing at reduced speed (nudging).
11. RE-OPEN: Door re-opening features have activated. (RE-OPEN output relay is energized
when the RE-OPEN LED light turns on).
12. STALL REVERSE: In the close direction, if the door exceeds the Torque Limit set by Par. 9,
the STALL REVERSE LED will turn on and the RE-OPEN relay will be energized).
13. FREQ. FAILURE: In the close direction, if the door exceeds the Speed Limit set by Par. 0, the
FREQ. FAILURE LED will turn on and the RE-OPEN relay will be energized).
14. DPM: A car door closed contact for safety features such as G.A.L. Fault monitor. (DPM relay is
energized when the DPM LED light turns on).
15. FAULT: The FAULT LED on indicates that there is a Fault in the drive.
16. AUX.: The AUX. LED and the AUX. relay will turn on when AUX cam is activated. AUX. cam
and AUX. cam are optional and available upon request.
G.A.L. Manufacturing Corporation December, 2007

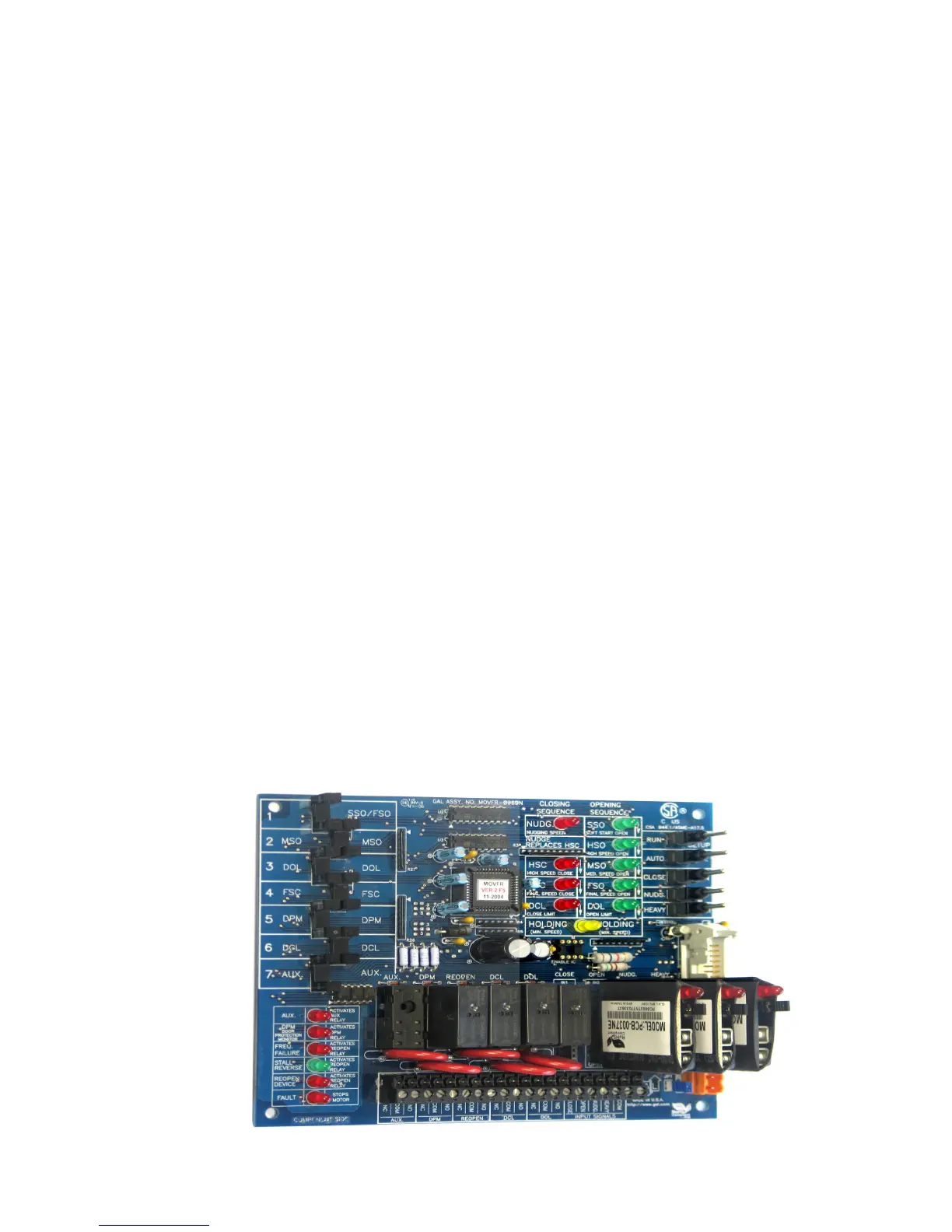

FIGURE 7.2.B.2
