. V/I/H Displays the Output Voltage, Output Current, Command Speed, and Actual Speed.
2
nd
. I/O Displays the Input and Output Signals
ZCORVLMH STF 1= Activate 0= Deactivate
(See the
Convenient keys in part E)
3
rd
. Faults. (See the Convenient keys in part E)

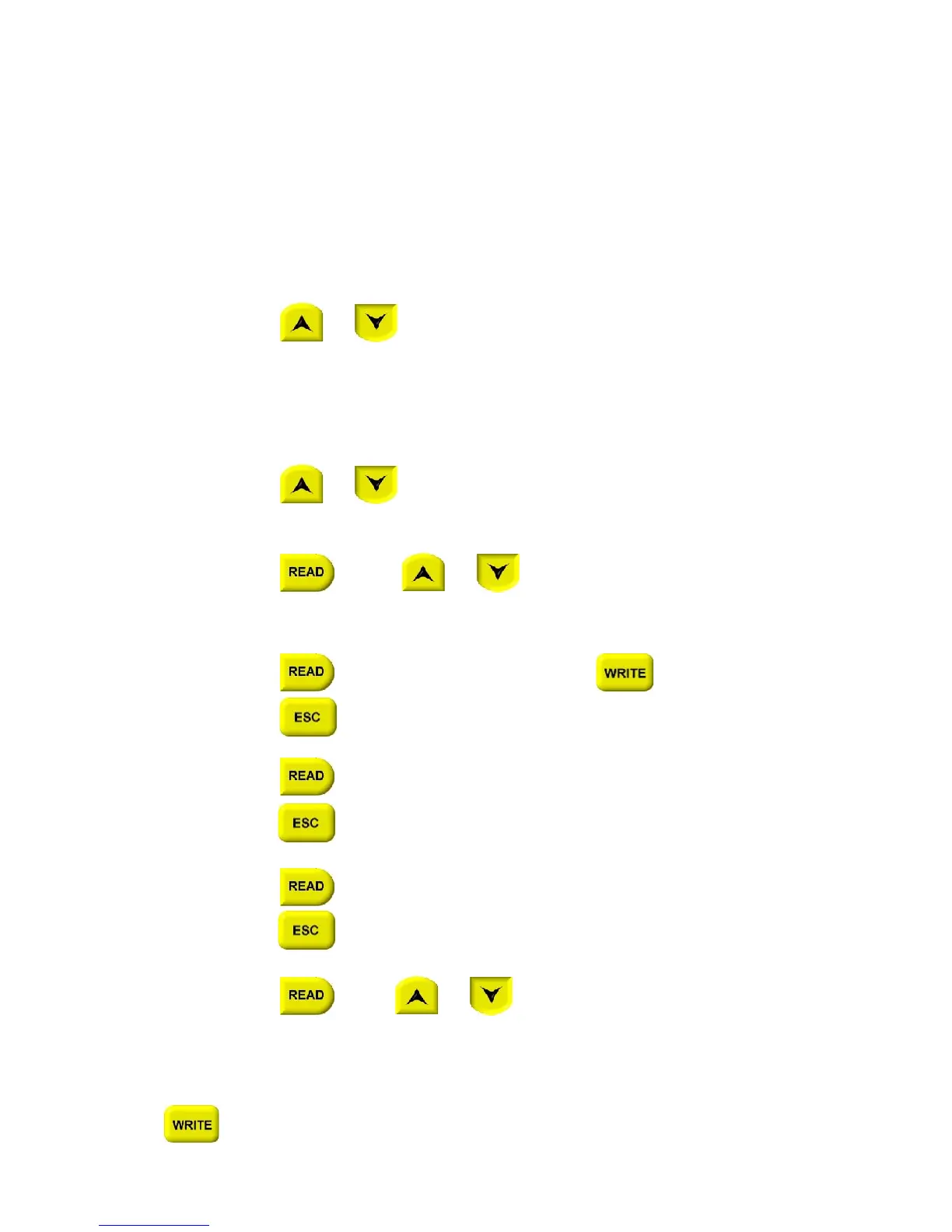

Press or to View all the Faults.
4
th
. Counters. There are 2 Counters.
Counter 1 will count up to 9,999 times.
Counter 2 will count up to 60,000 times.
When Counter 1 reaches 9999,Counter 2 will increase 1
The total count will be 600,000,000 times.
Press or to View Counter 1 or Counter 2.
5
th
. User List.
The User List includes all the Default settings for the MOVFR drive in part D.
Press , Press or to view all the Parameters in the User List
.
NOTE: Users can also change the Value of Parameters in this stage by doing the
following:
Press , Enter the new value, then Press .
Press to get back to the Previous Display.
6
th
. Max. cl. Speed
Press to view the Maximum Closing Speed.
Press to get back to the Previous Display.
7
th
. Max. cl. Force
Press to view the Maximum Closing Force.
Press to get back to the Previous Display.
8
th
. GAL Defaults
Press , Press or to pick one of the four sets of Parameters
Standard C/P
Standard S/O
Waterproof C/P
Waterproof S/O
Set RUN/CAM SETUP switch to CAM SETUP
Press to copy the chosen set of Parameters to the Working Set of Parameters.
