GAL MOVFR - Page 44

Pr.8 Close Deceleration Time
Unit: 0.1 Sec
Default: 10.0
Range: 0 ~ 320.0 Sec
The Deceleration time is used to determine the time required for the AC drive to decelerate from
the reference frequency (Pr.50) down to 0 Hz.
Pr.9 Stall Reverse Force (output current detection level)
Unit: (0.1 %)
Default: 1.2A
Range: 0 ~ 200.0 %rated
If the output current remains higher than this setting during AC drive operation, the output current
detection signal is on from the open collector output terminal of the AC drive.
Pr.11 Heavy Door Close Holding Torque
Unit: 0.1 %
Default: 3 %
Range: 0 ~ 30 %
Increase the setting when the motor torque in low speed range is insufficient.
Pr.12 Heavy Door Close Holding Speed
Unit: 0.1 Hz
Default: 2.0 Hz
Range: 0 ~ 400.0 Hz
Pr.13 Heavy Door Close Torque (Base Freq.)
Unit: 0.1 Hz
Default: 173.0 Hz
Range: 0 ~ 400.0 Hz

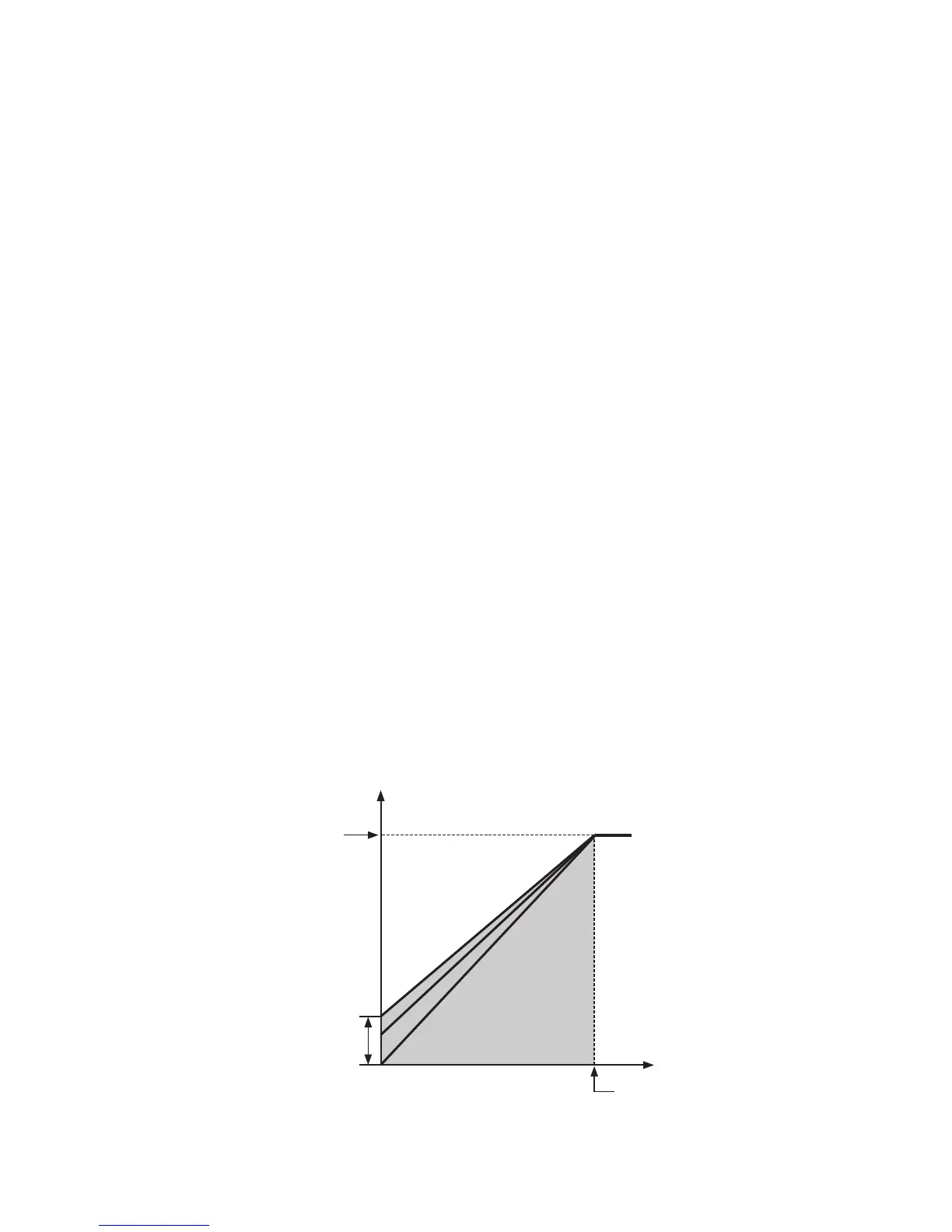

This parameter is used to adjust the AC drive output (voltage, frequency) to the motor rating.
