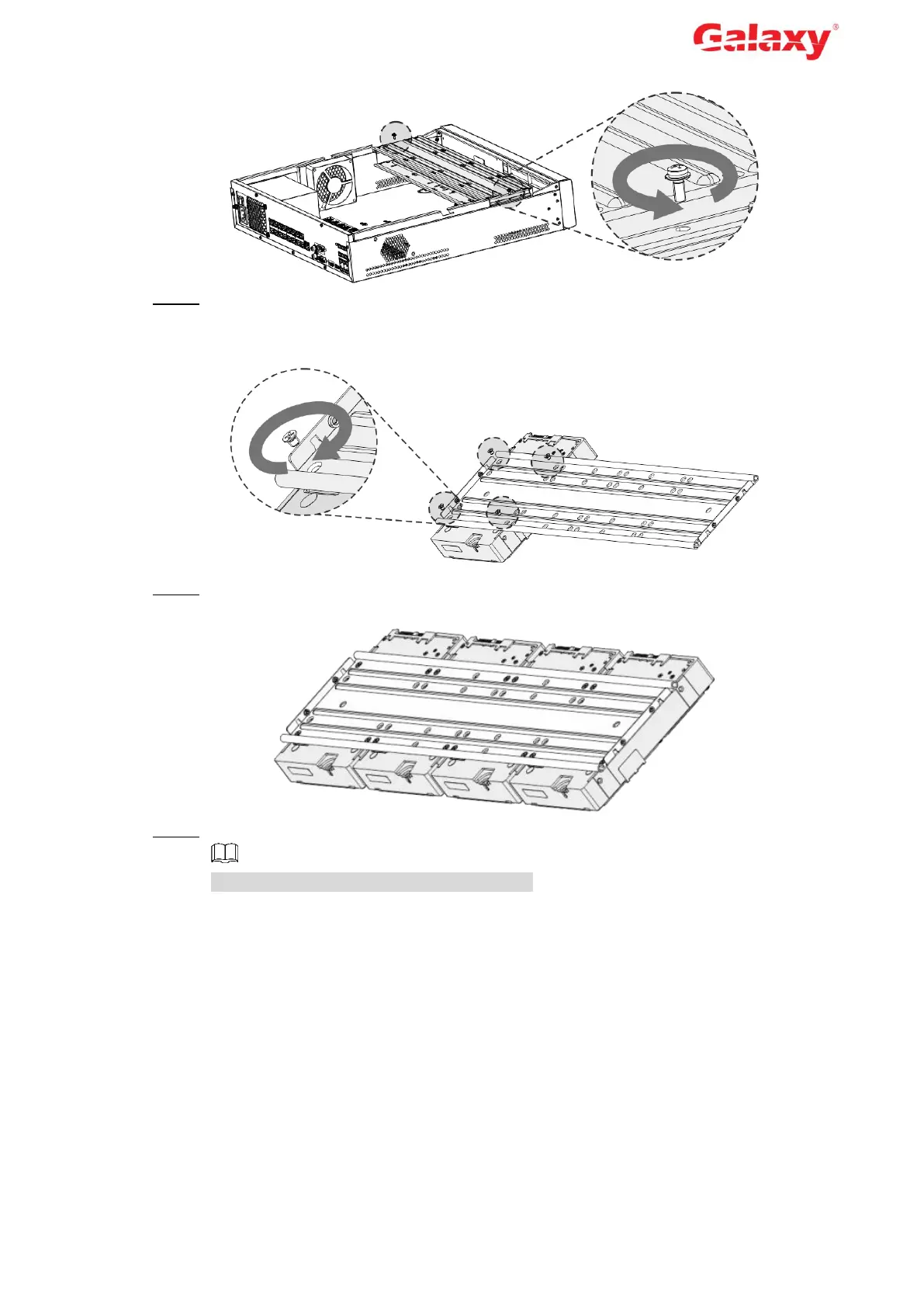

Figure 1-4 Remove HDD bracket (8-HDD)
Step 4 Match the four screw holes on the HDD with the four holes on the bracket and then
fasten the screws. The HDD is fixed to the bracket.
Figure 1-5 Fix the HDD (1)
Step 5 Refer to Step 4 to install other HDDs.
Figure 1-6 Fix the HDD (2)
Step 6 Lock the two HDD brackets.
This step is required for 8-HDD devices only.
