Gallagher S200 - Installation Instructions

7
English
3E4676 Gallagher S200 Solar Energizer User Manual

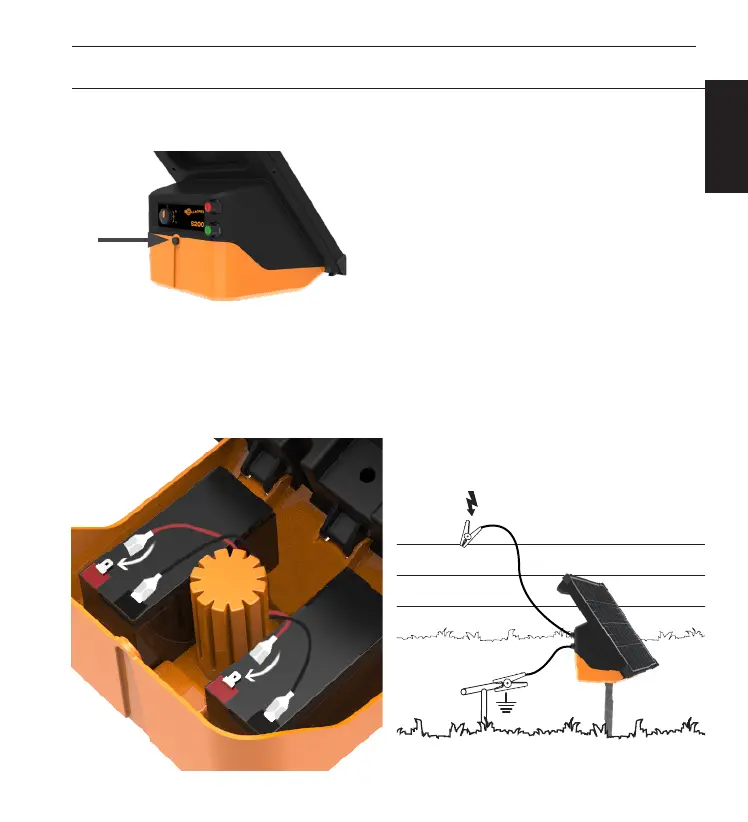

1. Open the energizer
2. Connect the baeries
Note: Before connecng the baeries
ensure the Power switch is in the O
posion.
3. Close cover and ghten screw
4. Install energizer
The solar panel should face
towards the equator. i.e. in the
northern hemisphere, panel
faces south, in the southern
hemisphere, panel faces north.
Avoid placing in a shady area.
5. Connect leads
a) Connect green terminal to
earth stake at least 2  (60cm)
into ground.
b) Connect red terminal to fence
line.
6. Switch energizer ON
INSTALLATION INSTRUCTIONS
3’ Earth Rod
GREEN
RED
