Use and Maintenance Manual – Pressure-sensitive bumpers type GSBPS 14/35

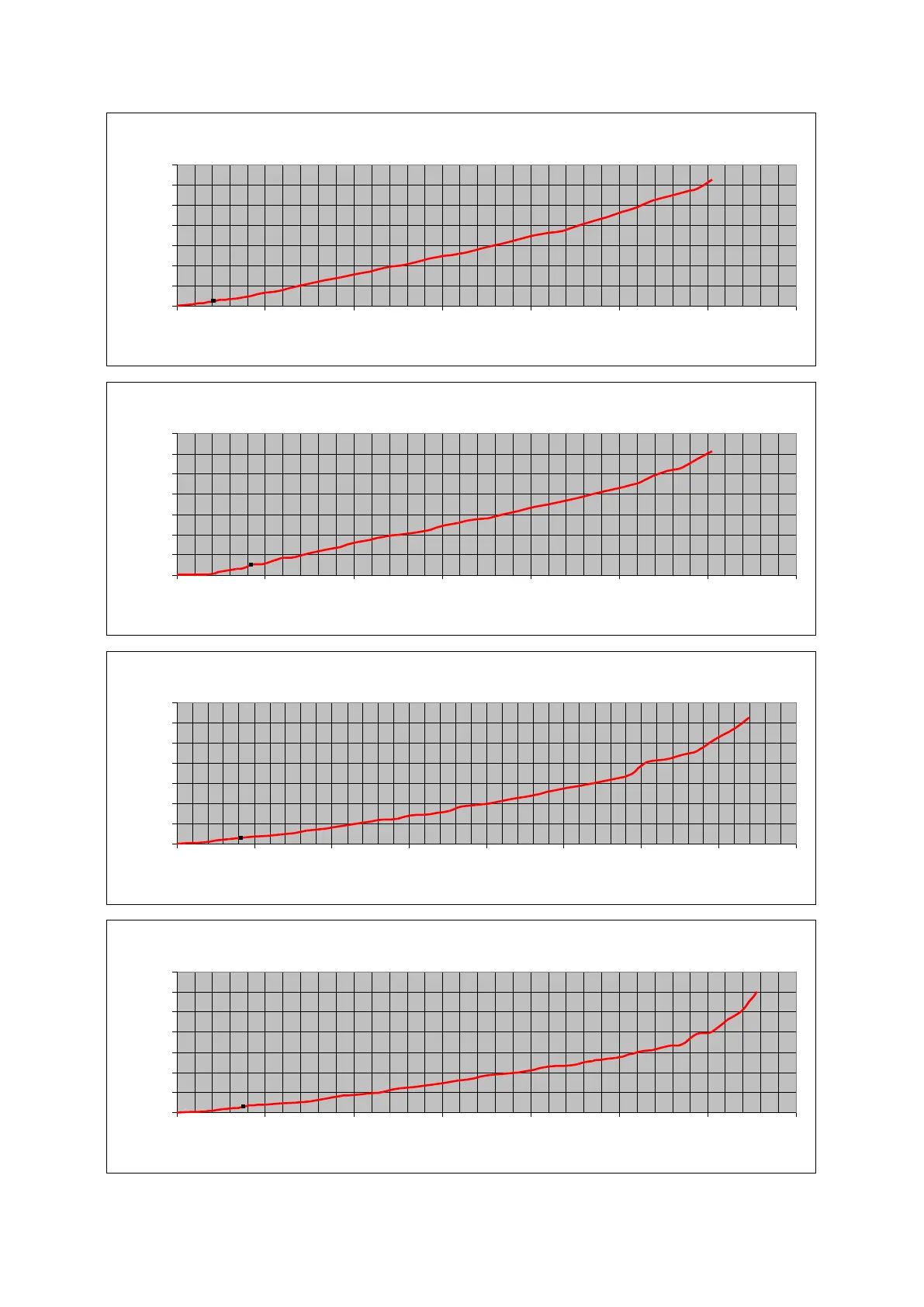

The black dot indicates the actuation point A.
GSBPS03 - Punto 3 - 10 mm/s
0
100
200
300
400
500
600
700
0 50 100 150 200 250 300 350
Corsa [mm]
Forza [N]
GSBPS03 - Punto 3 - 100 mm/s
0
100
200
300
400
500
600
700
0 50 100 150 200 250 300 350
Corsa [mm]
Forza [N]
GSBPS03 - Punto 4 - 10 mm/s
0
100
200
300
400
500
600
700
0 50 100 150 200 250 300 350 400
Corsa [mm]
Forza [N]
GSBPS03 - Punto 4 - 100 mm/s
0
100
200
300
400
500
600
700
0 50 100 150 200 250 300 350
Corsa [mm]
Forza [N]
