GAMMA SYSTEM GP02R.T - Page 20

Use and Maintenance Manual – Pressure-sensitive bumpers type GSBPS 20/35

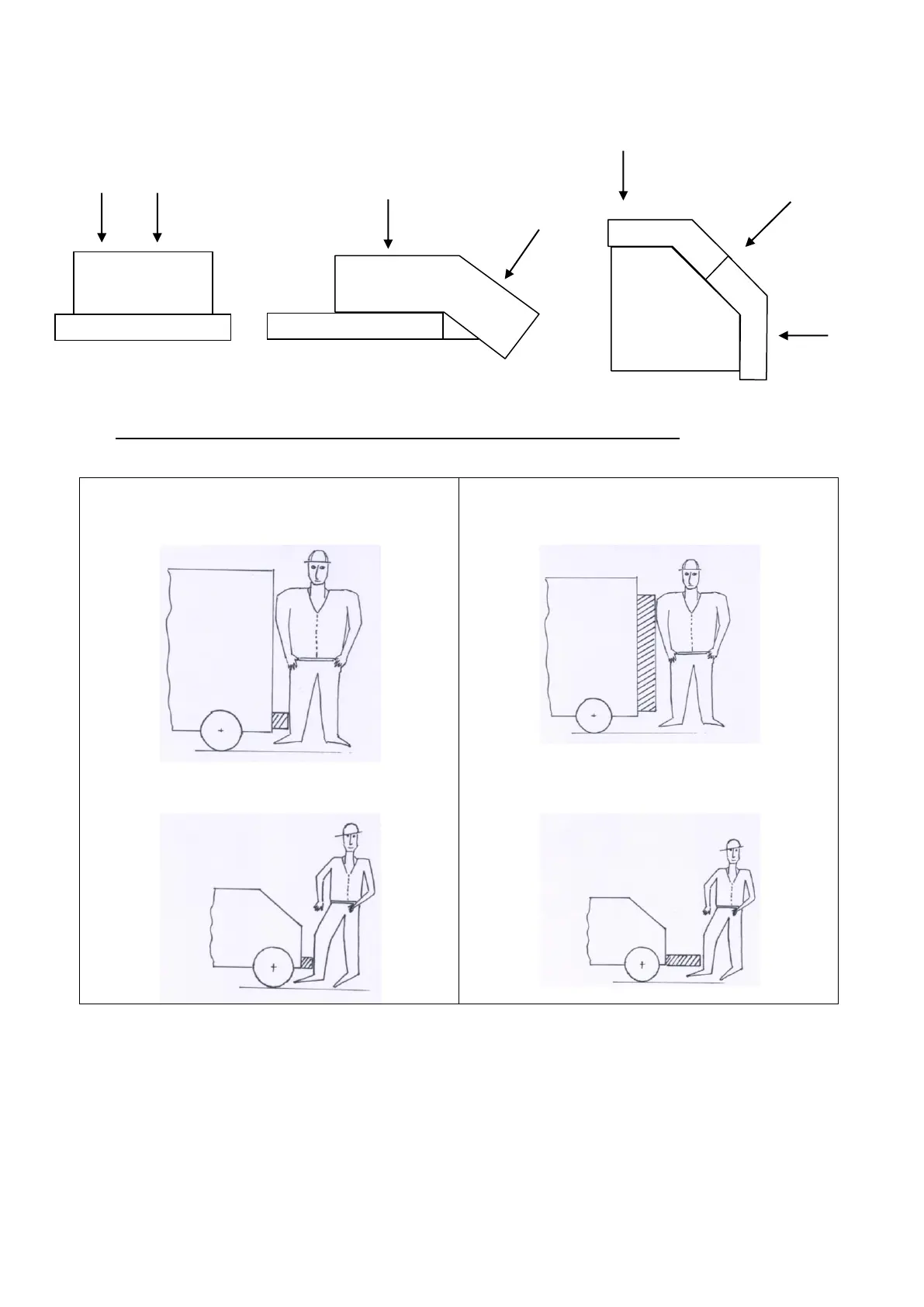

Example of wrongly designed installation and correct solution to put in place.
The height protected by the bumper is not suitable for the
application and is not sufficiently high. The operator’s
shoulder may come into contact with the truck..
A higher pressure-sensitive safety bumper should be used
In this case, the risk exists that the operator’s foot is crushed by
the truck wheel
The use of a deeper pressure-sensitive bumper eliminates this
risk.
Macchina
Actuation direction
Machine
Actuation direction at
45°
Machine
Actuation direction at
45° and 90°
