3. INSTALLATION

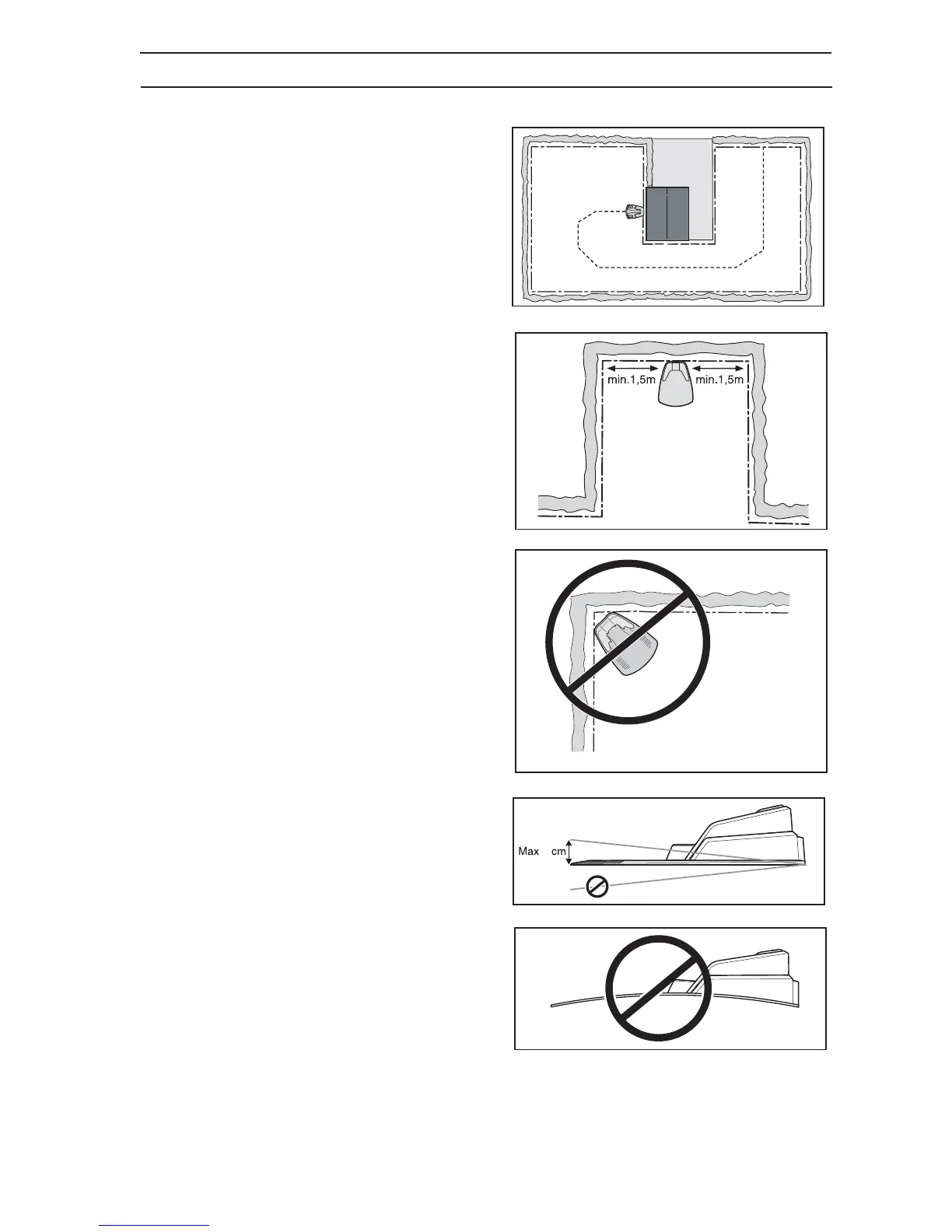

The charging station must be positioned with a great
deal of free area in front of it (at least 3 metres). It
should also be centrally placed in the working area so
that R40Li finds it easier to reach all areas in the
working area.
Do not put the charging station in confined spaces in
the working area. There must be a straight boundary
wire, at least 1.5 metres long, to the right and left of
the charging station. The wire must be laid straight
out from the rear end of the charging station. Any
other locations can mean that the lawn mower enters
the charging station sideways and will have difficulty
docking.
Do not put the charging station in a corner in the
working area. There must be a straight boundary
wire, at least 1.5 metres long, to the right and left of
the charging station.
The charging station must be positioned on relatively
level ground. The front end of the charging station
must be a maximum of 3 cm higher than the back
end. The front end of the charging station must never
be lower than the back end.
The charging station must not be positioned so that
its plate bends.
3020-043
3

Gardena R40Li Operator‘s Specifications

General

Cutting Width	17 cm
Battery Type	Li-Ion
Area Capacity	400 m²
Weight	7.4 kg
Maximum Slope	25%
Battery Voltage	18 V
