28 - English
3. INSTALLATION

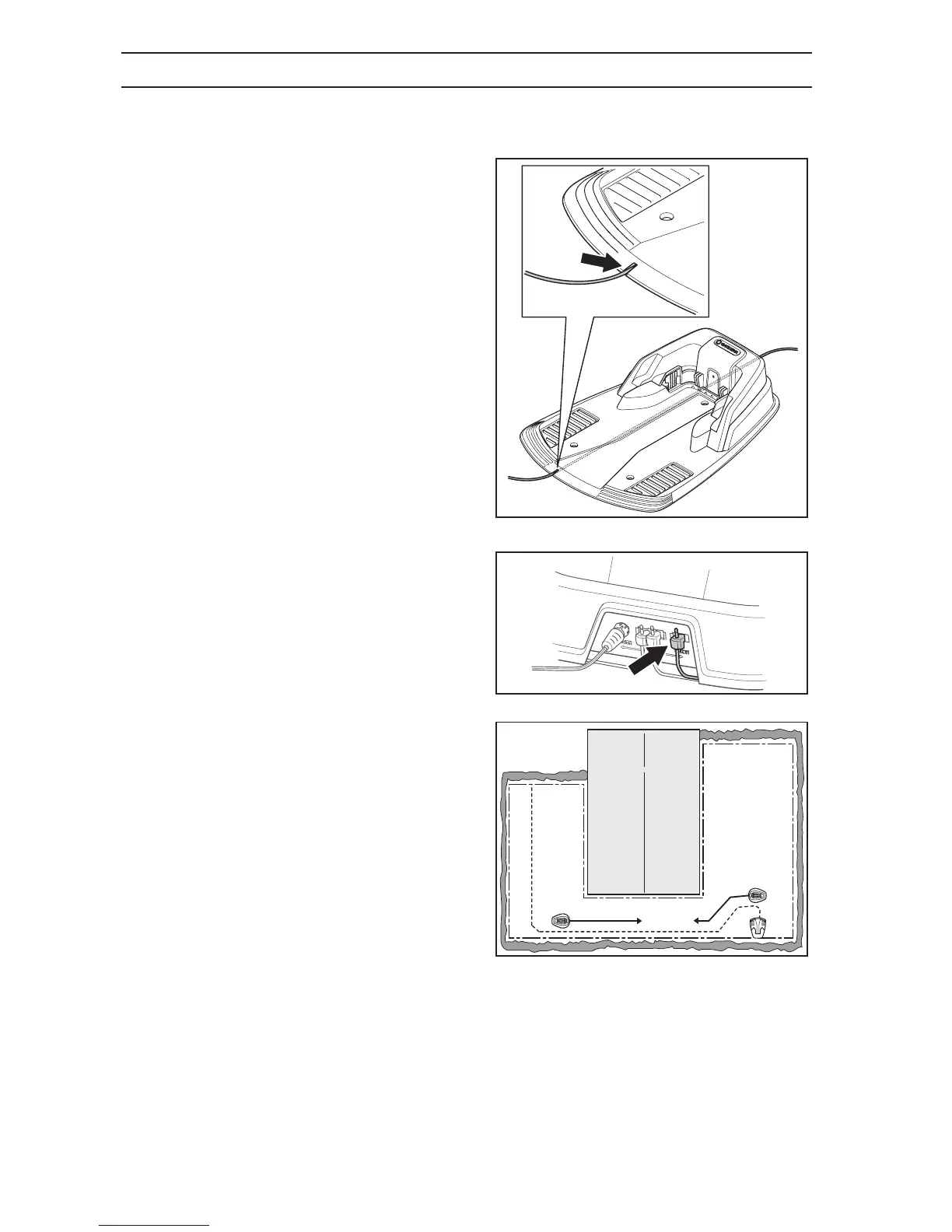

Placement and connection of the guide wire
1. Draw the wire through the slot in the bottom of
the charger plate.
2. Fit the connector to the guide wire in the same
way as for the boundary wire in 3.5 Connecting
the boundary wire. Connect it to the contact pin
on the charging station that is labelled “guide”.
3. Route the guide wire at least 2 metres straight
out from the front edge of the charging plate.
If the guide wire must be laid in a passage:
- the R40Li follows the guide wire on the same
side of the wire to and from the charging station.
This means that the guide wire is to the right of
the mower when the mower travels to the
charging station while it is to the left of the mower
when the mower travels away from the station.
