62 - English
9. TROUBLE SHOOTING

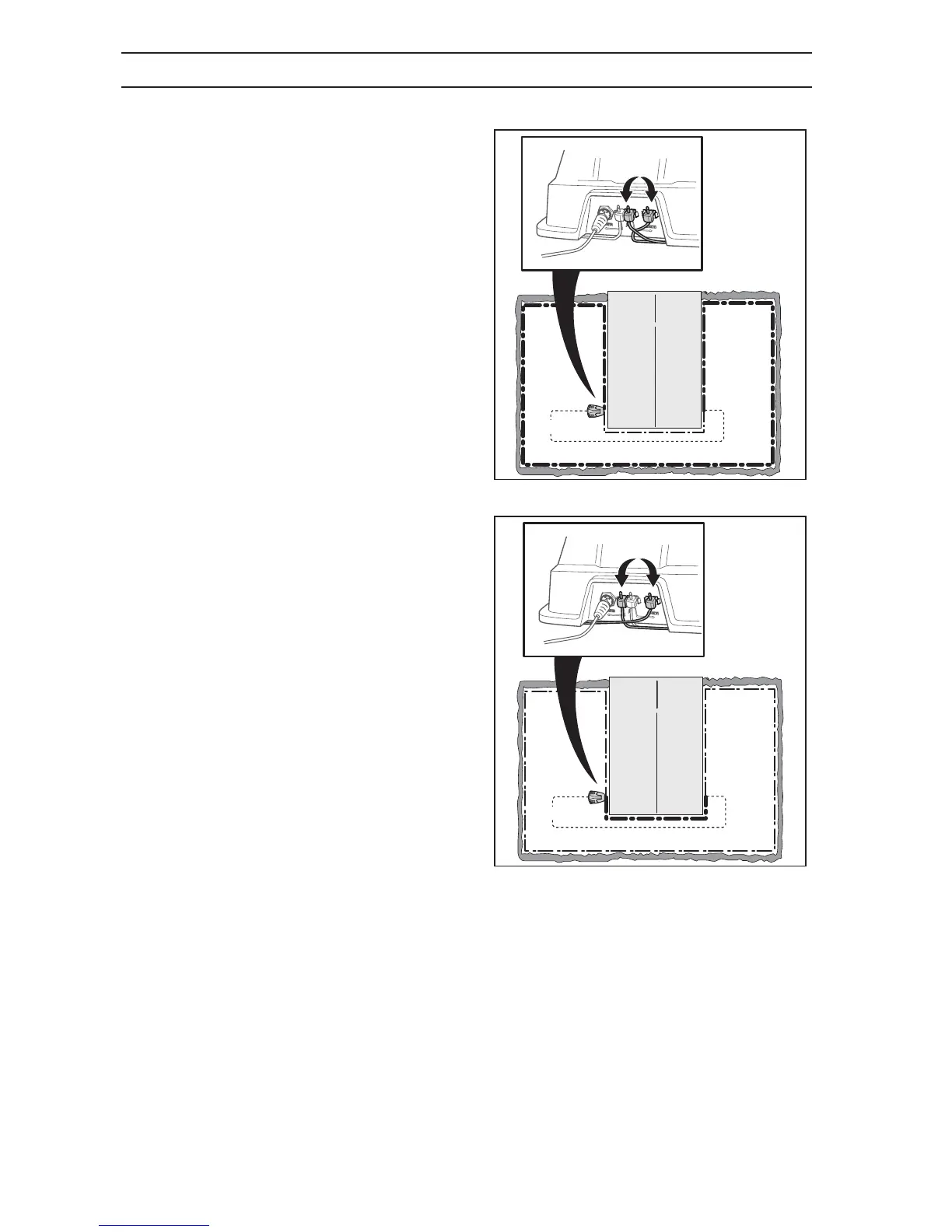

3. Connect the charging station to the power
supply. Switch the connections between the
guide wire and the boundary wire in the charging
station.
a) Switch connection A1 and Guide.
If the indicator lamp flashes yellow, then the
break is somewhere on the boundary wire
between A1 and the point where the guide wire is
connected to the boundary wire (thick black line
in the illustration).
b) Put A1 and Guide back in their original
positions. Then switch A2 and Guide.
If the indicator lamp flashes yellow, then the
break is somewhere on the boundary wire
between A2 and the point where the guide wire is
connected to the boundary wire (thick black line
in the illustration).
Guide
Guide
