Gardner Denver VS45A - Figure 4-1 - Electrical Enclosure Hardware

13-18-601 Page 27
ASSEMBLED CONTROL BOX WITH EMC FILTER............
ASSEMBLED CONTROL BOX WITHOUT EMC FILTER....
1 AIRSMART CONTROL BOX...............................................
2 GRP-DRIVE (VS45-US) ......................................................
3 CABLE ASSEMBLY ............................................................
4 SPLITTER CABLE...............................................................
5 SCREW TERMINAL PLUG .................................................
7 CONTROL BOX ENCLOSURE ...........................................
8 ELECTRICAL FILTER.........................................................
9 OPERATOR........................................................................
10 CONTACT BLOCK..............................................................
11 POWER SUPPLY................................................................
12 FUSE HOLDER...................................................................
13 TERMINAL LUG..................................................................
14 FUSE HOLDER...................................................................
15 FUSE...................................................................................
16 FUSE BLOCK......................................................................
17 FUSE...................................................................................
18 RELAY ................................................................................
19 TERMINAL BLOCK.............................................................
20 TERMINAL BLOCK.............................................................
21 GROUND BLOCK ...............................................................
22 GROUND BLOCK ...............................................................
23 GROUND BLOCK ...............................................................
24 TERMINAL BLOCK.............................................................
25 DIN RAIL.............................................................................
27 EMC FILTER.......................................................................
28 CONTROL BOX DECAL (not shown).................................

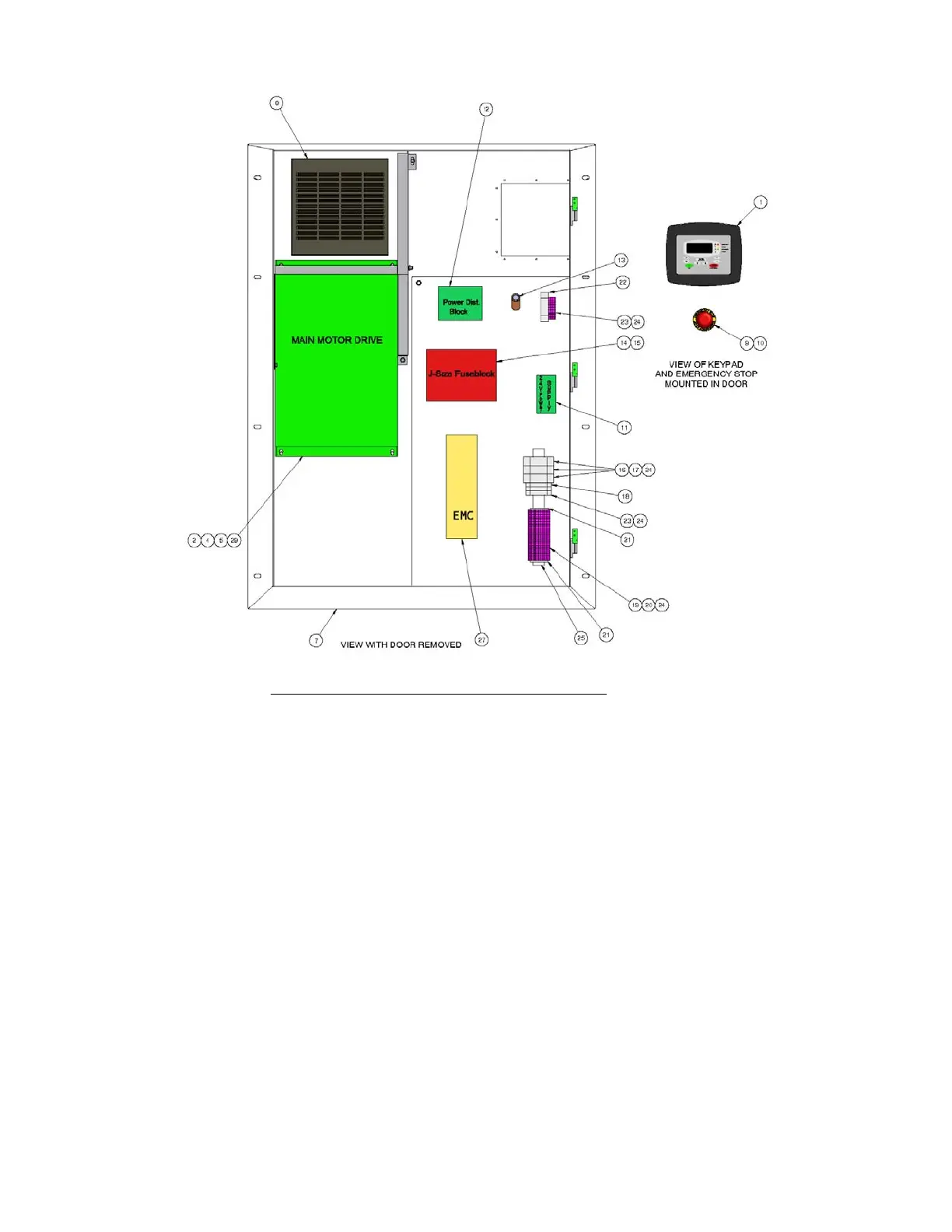

Figure 4-1 – ELECTRICAL ENCLOSURE HARDWARE
308CGD810-C
(Ref. Drawing)
